SZS-POPC-250/1420/250-36-SCS-0K3-S-R7035

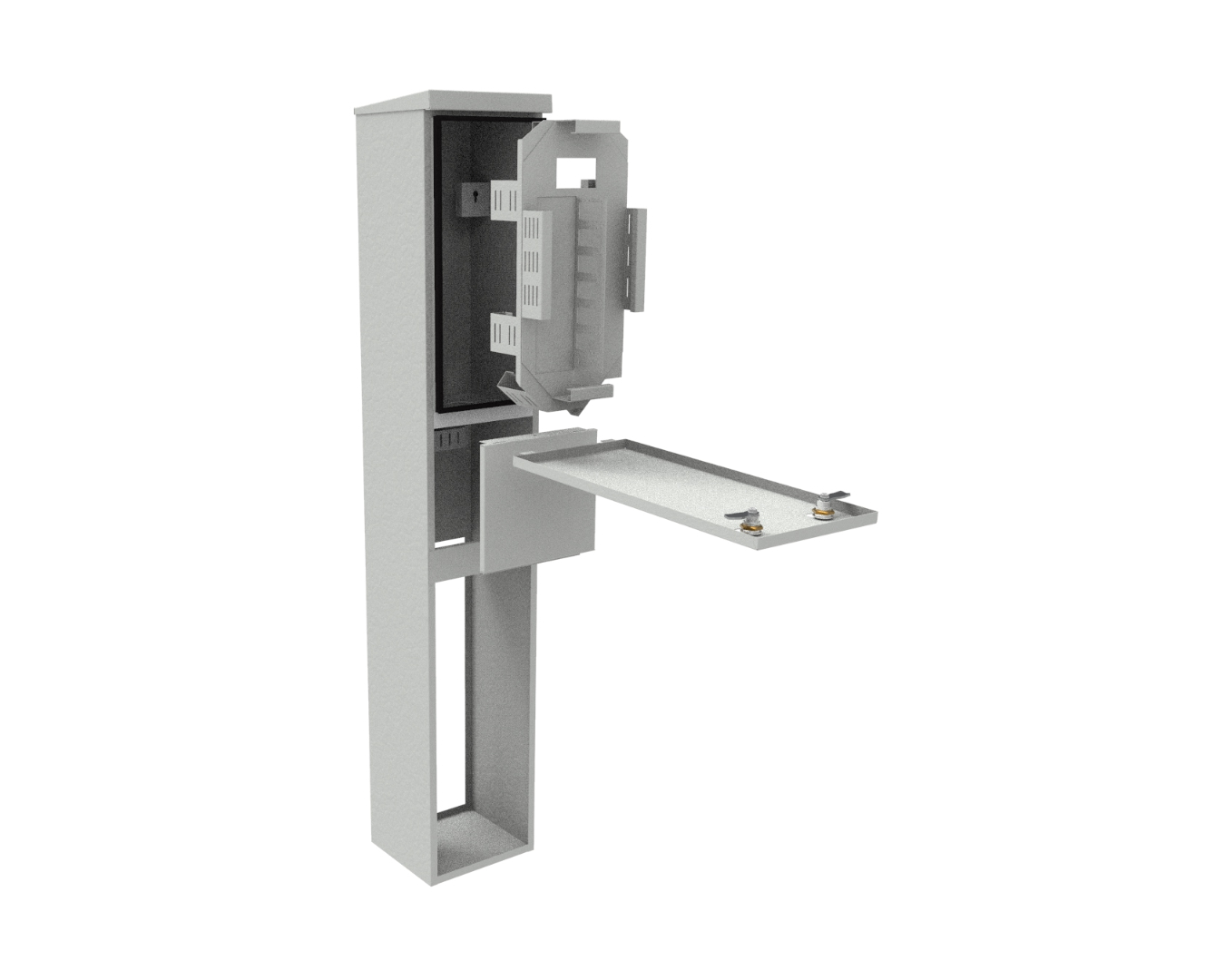

Optical outdoor cabinet with removable insert, SZS-POPC-48-SCD, IP54, IK10, 48 ports SC duplex, without splice cassettes, 250x1420x250mm (SxWxG), Magnelis®, structural, RAL7035

Request for quotation
  • possibility of connection up to 36 subscriber lines,

  • commutation field adapted for installation of connector standards: SC duplex, LC quad,

  • removable insert of the optical outdoor cabinet allows carrying out the work away from a place e.g. in the installer's car,

  • insert with dedicated space for fiber splice cassettes and well organized spare area guarantees safe bending radius, thanks to integrated handles and perforations for cable ties,

  • the possibility of installing mini metalbox splitters on fiber splice cassettes,

  • hermetic closure system with installed 1333 patent lock, providing at least 500 cycles of opening and closing without damage,

  • fully removable front panels which makes an installation easier,

  • cables mounting holder located in the bottom chamber of the cabinet,

  • assembly position enables work in an open areas,

  • Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

application
telecommunication
dimensions (width x height x depth)
250mm x 1420mm x 250mm
3
36
ports standard
SC simplex, E2000 simplex, LC duplex
fiber splice cassette type
KS-03-24
fiber splice cassette capacity
24F
max. number of fiber splice cassettes
3
max. splice capacity
72F
recommended pigtail length
2 – 2.5 m
cable entry type
BDE 54 rubber grommet
cable entry diameter
⌀ 51 mm
number of cable entries
1
mounting type
outdoor, free-standing
operation temperature range
-40°C to +70°C
ingress protection degree IP
IP 54
impact protection degree IK
IK 10
flammability class
V0 acc. UL 94
recommended burial depth
60 cm
weight
~15.0 kg
material
powder painted Magnelis® sheet
color
structural, light grey RAL7035
standards and certificates
ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
