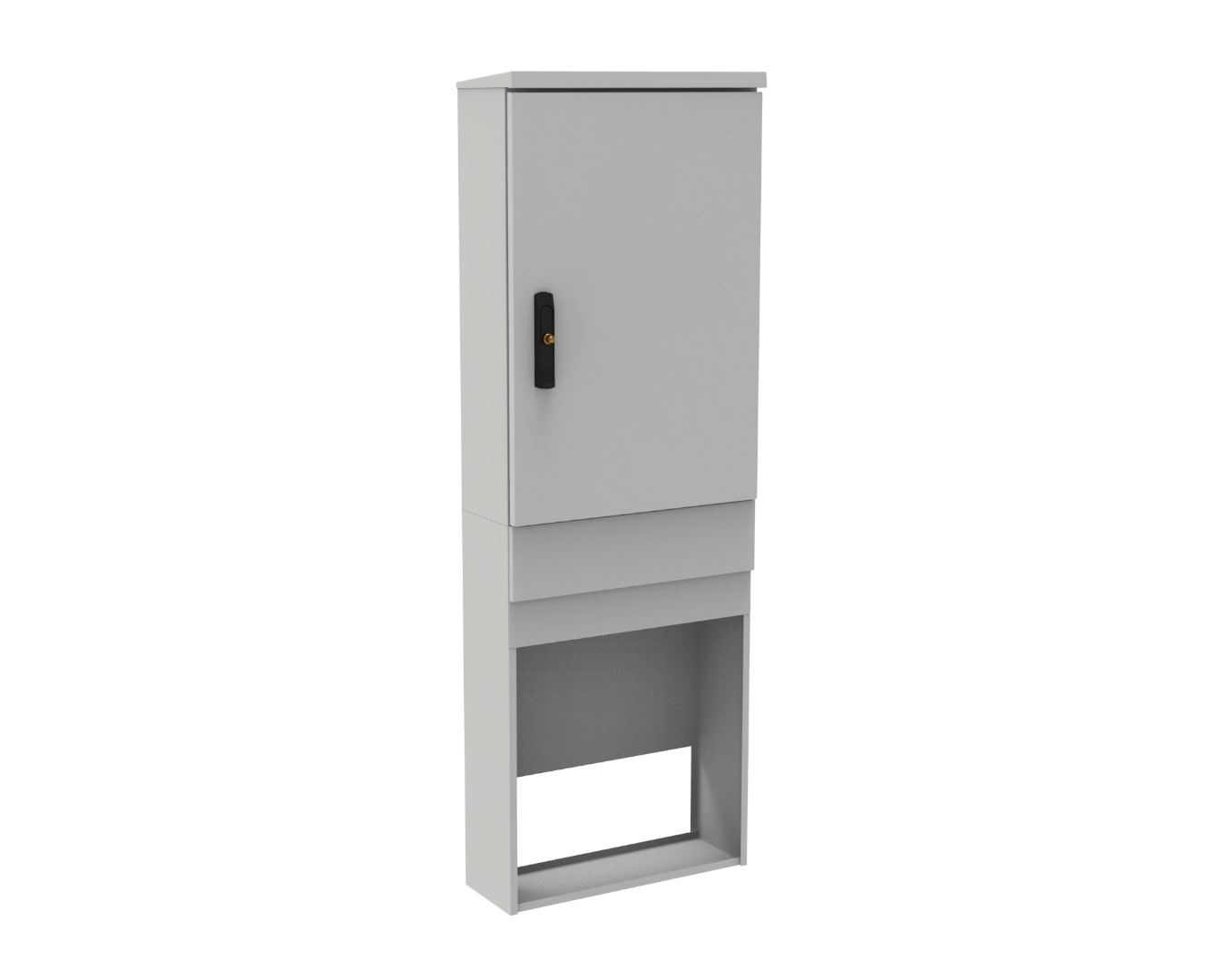

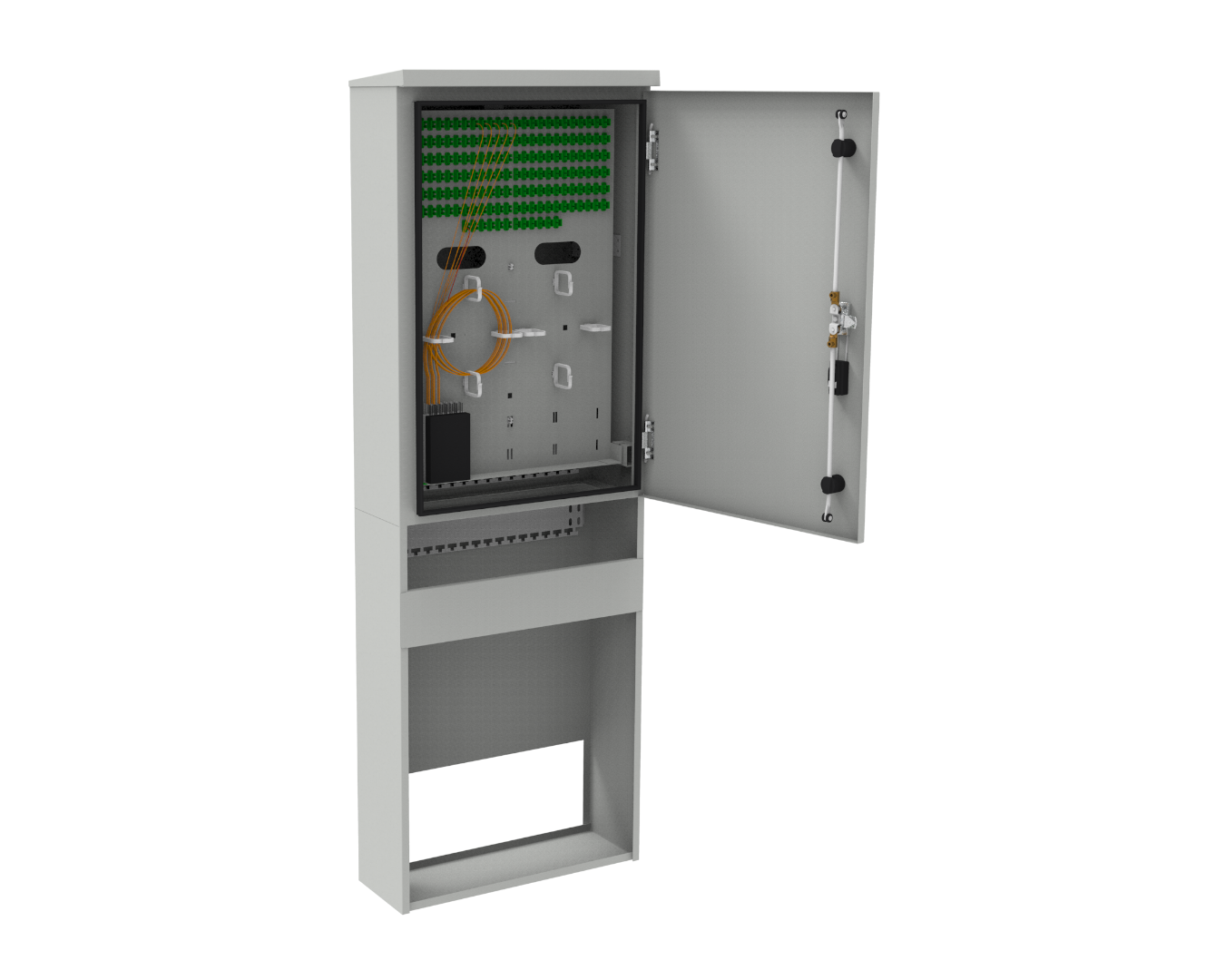

Optical outdoor cabinet with tippable insert and cable spare section, SZS-SZ-520/1500/210-144-SCS, IP54, IK10, 144 ports SC simplex, without splice cassettes, 520x1500x210mm (WxHxD), Magnelis®, structural, RAL7035
possibility of connection up to 144 subscriber lines,
commutation field adapted for installation of connector standards: SC duplex, LC quad,
removable insert of the optical outdoor cabinet allows carrying out the work away from a place e.g. in the installer's car,
insert with dedicated space for fiber splice cassettes and PLC splitters in BlackBox housing,
the possibility of installing mini metalbox splitters on fiber splice cassettes,
well organized spare area guarantees safe bending radius, thanks to integrated handles and perforations for cable ties,
hermetic closure three-point locking system, designed for the installation of a type 1333 patent lock integrated into a hinged handle, providing at least 500 cycles of opening and closing without damage,
maximum opening angle of the front door up to 120°,
cables mounting holder located in the bottom chamber of the cabinet,
assembly position enables work in an open areas,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.
