PSW-E-19"-250-1U-24-SCD-0K3-S-R9005

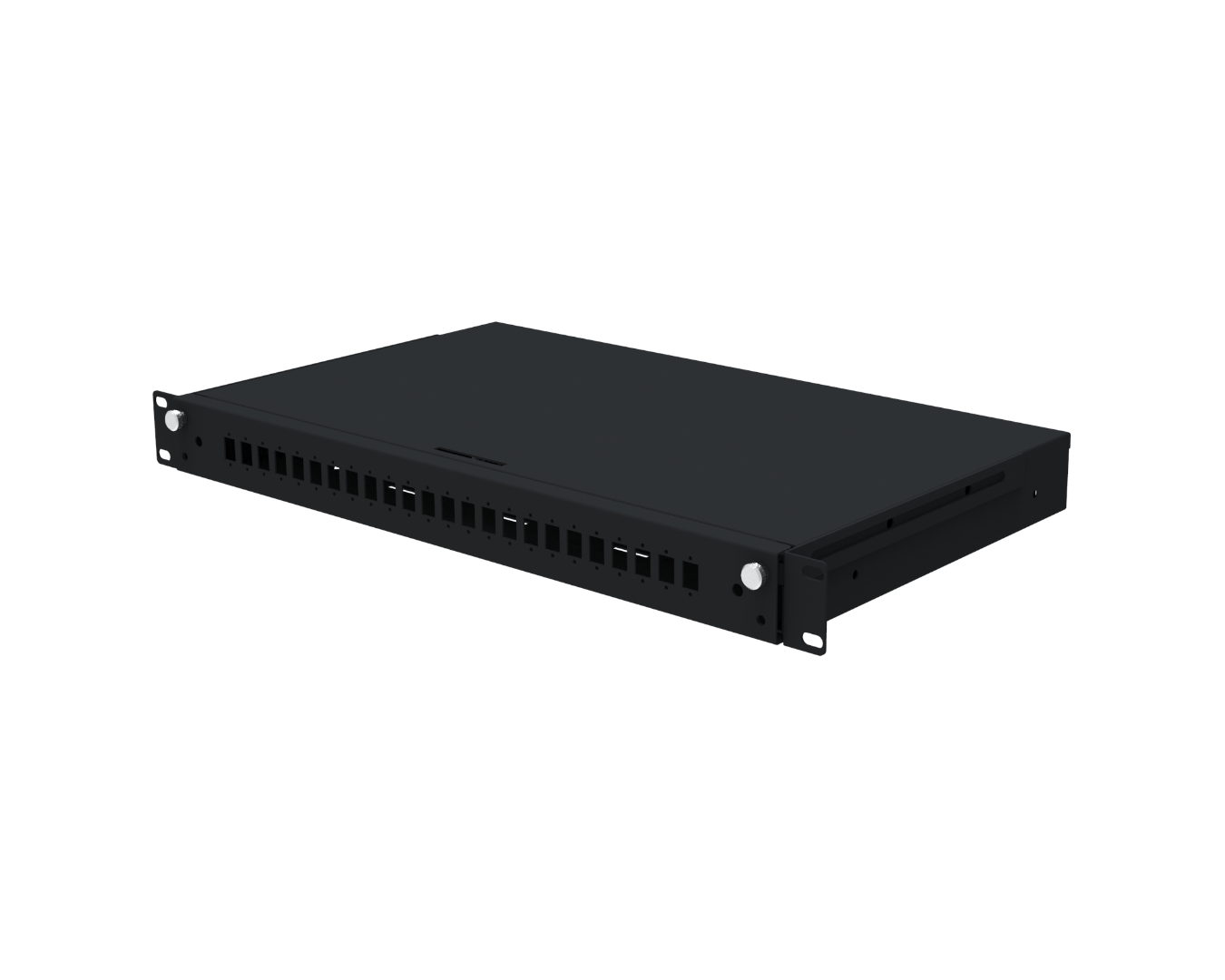

FO pull-out patch panel PSW-E-19"-250-1U-24, without telescopic rails, 24 ports SC duplex, without splice cassettes, Magnelis®, structural, RAL9005

Request for quotation

fiber optic patch panel enables termination of up to 48 optical fibers,
possibility of mounting connector standards: SC duplex, LC quad,
designed for installation in 19" or 21" (with additional reducers) ODF cabinets and racks,
PG13.5 gland allows the installation of a line cable (⌀ 8-12 mm) or a multipatchcord into the patch panel,
well organized spare area of the patch panel guarantees safe bending radius, thanks to integrated handles and perforations for cable ties,
numbering on the front panel is permanent applied by screen printing,
the patch panel has a pull-out drawer locked with two anti-lost screws, which significantly increases the comfort of work during installation and maintenance,
smooth adjustment of the mounting depth allows it to be adapted to any cabinet or rack,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

application: telecommunication
product family: PSW
dimensions (width x height x depth): 483mm x 44mm x 250mm
rack unit height: 1U
rack standard: 19"
number of SC duplex ports: 24
ports standard: SC duplex, LC quad
fiber splice cassette type: KS-03-24
fiber splice cassette capacity: 24F
max. number of fiber splice cassettes: 3
max. splice capacity: 72F
recommended pigtail length: 2 – 2.5 m
cable entry type: PG13.5 cable gland
cable entry diameter: ⌀ 22.5 mm
number of cable entries: 4x rear
central strength member holder (FRP rod): YES
installation depth adjustment: YES
telescopic rails: NO
mounting type: front or rear rack rails
anti-rodent protection: equipment ordered separately
operation temperature range: -40°C to +70°C
ingress protection degree IP: IP 41
impact protection degree IK: IK 10
flammability class: V0 acc. UL 94
weight: ~2.2 kg
material: powder painted Magnelis® sheet
color: structural, black RAL9005
standards and certificates: ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
