Fiber optic patch panels - pull-out

PSW-E-19"-250-3U-144-SCS-0K3-S-R9005

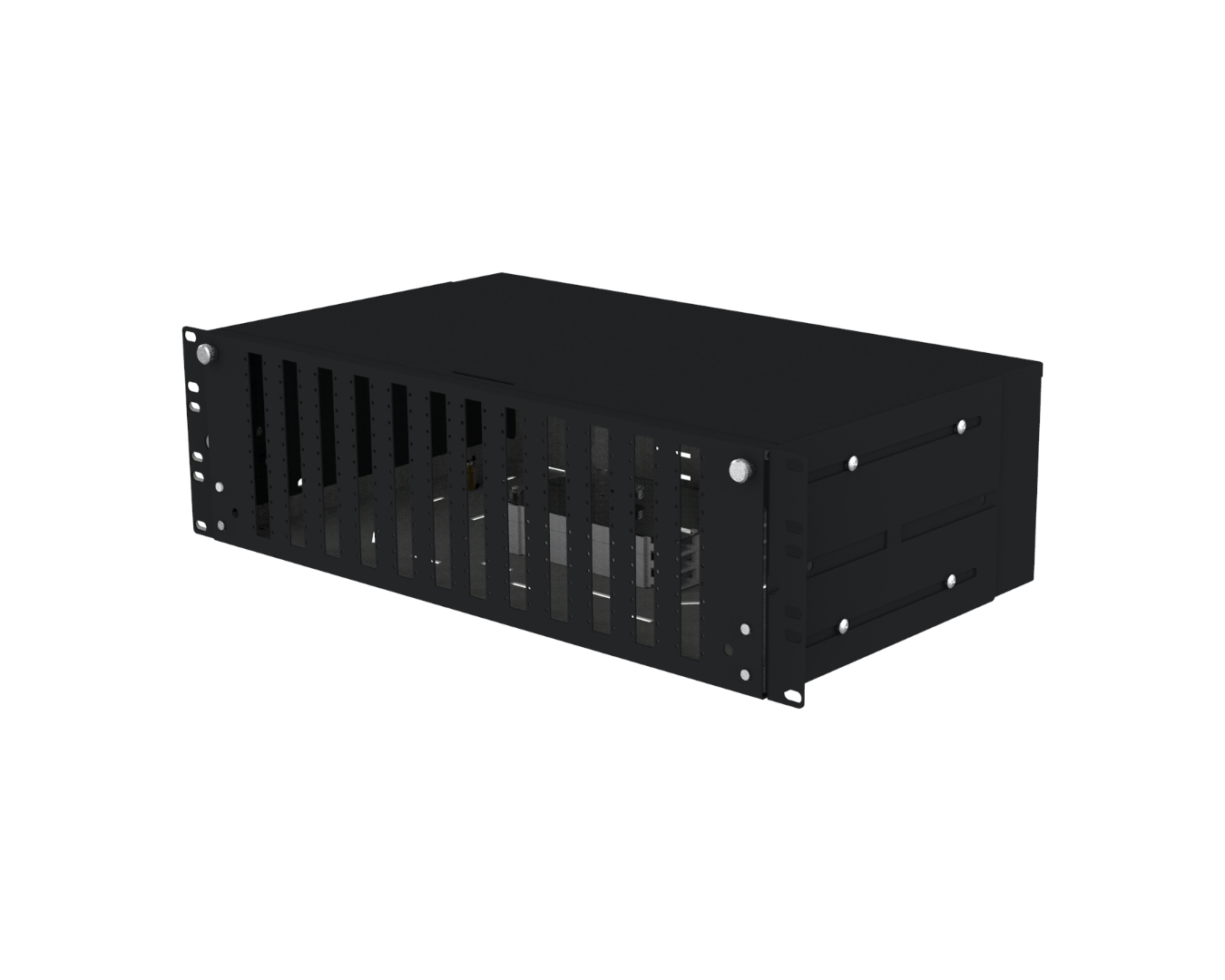

FO pull-out patch panel PSW-E-19"-250-3U-144, without telescopic rails, 144 ports SC simplex, without splice cassettes, Magnelis®, structural, RAL9005

Request for quotation

  • fiber optic patch panel enables termination of up to 288 optical fibers,

  • possibility of mounting connector standards: SC simplex, E2000 simplex, LC duplex,

  • designed for installation in 19" or 21" (with additional reducers) ODF cabinets and racks,

  • PG13.5 gland allows the installation of a line cable (⌀ 8-12 mm) or a multipatchcord into the patch panel,

  • well organized spare area of the patch panel guarantees safe bending radius, thanks to integrated handles and perforations for cable ties,

  • numbering on the front panel is permanent applied by screen printing,

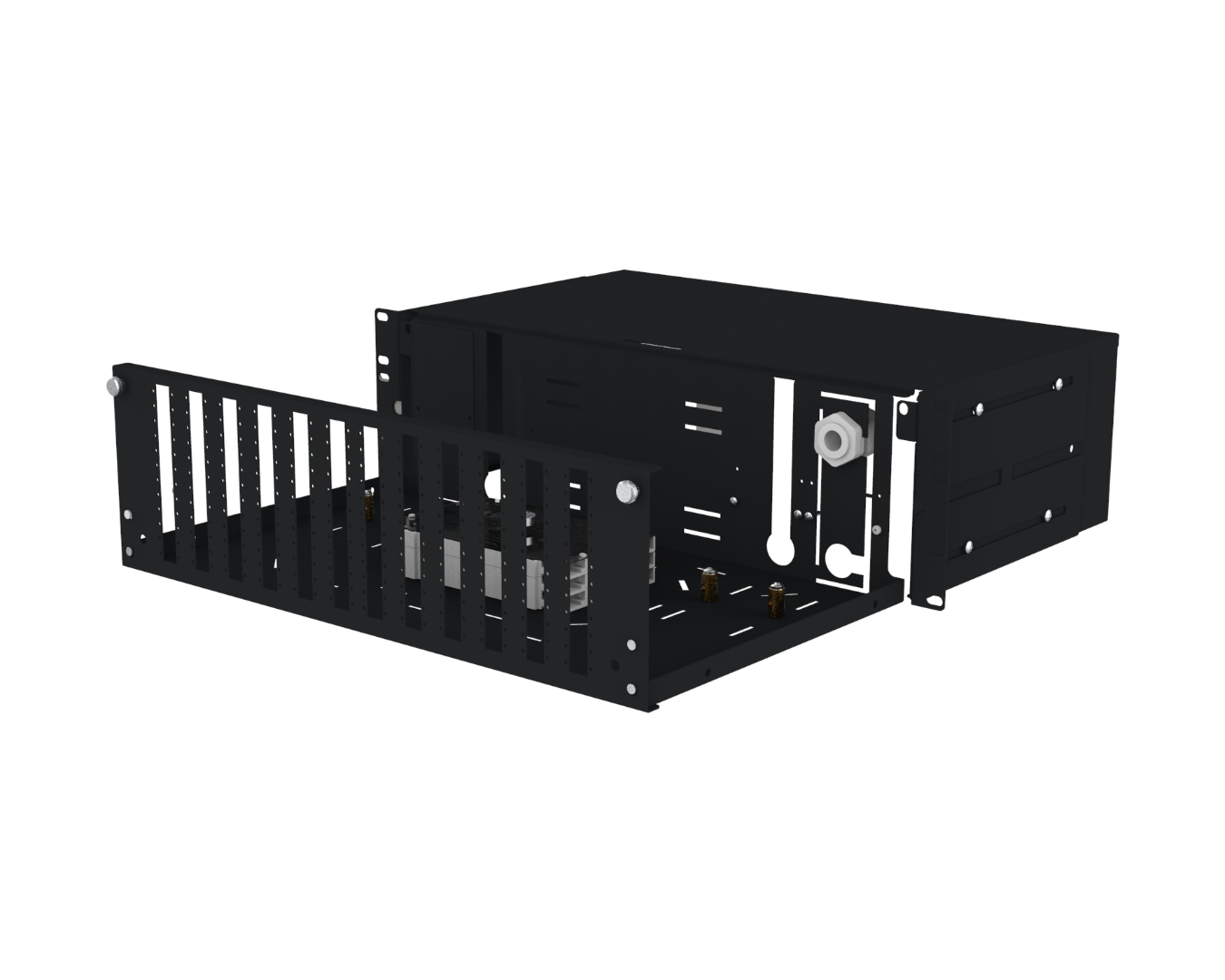

  • the patch panel has a pull-out drawer locked with two anti-lost screws, which significantly increases the comfort of work during installation and maintenance,

  • smooth adjustment of the mounting depth allows it to be adapted to any cabinet or rack,

  • Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

application
telecommunication
dimensions (width x height x depth)
483mm x 132mm x 250mm
rack unit height
3U
rack standard
19"
number of SC simplex ports
144
ports standard
SC simplex, E2000 simplex, LC duplex
fiber splice cassette type
KS-03-24
fiber splice cassette capacity
24F
max. number of fiber splice cassettes
13
max. splice capacity
312F
recommended pigtail length
2 – 2.5 m
cable entry type
PG13.5 cable gland
cable entry diameter
⌀ 22.5 mm
number of cable entries
4x rear
central strength member holder (FRP rod)
YES
installation depth adjustment
YES
telescopic rails
NO
mounting type
front or rear rack rails
anti-rodent protection
equipment ordered separately
operation temperature range
-40°C to +70°C
ingress protection degree IP
IP 41
impact protection degree IK
IK 10
flammability class
V0 acc. UL 94
weight
~3.5 kg
material
powder painted Magnelis® sheet
color
structural, black RAL9005
standards and certificates
ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
