PP-A-19"-1U-S-R9005

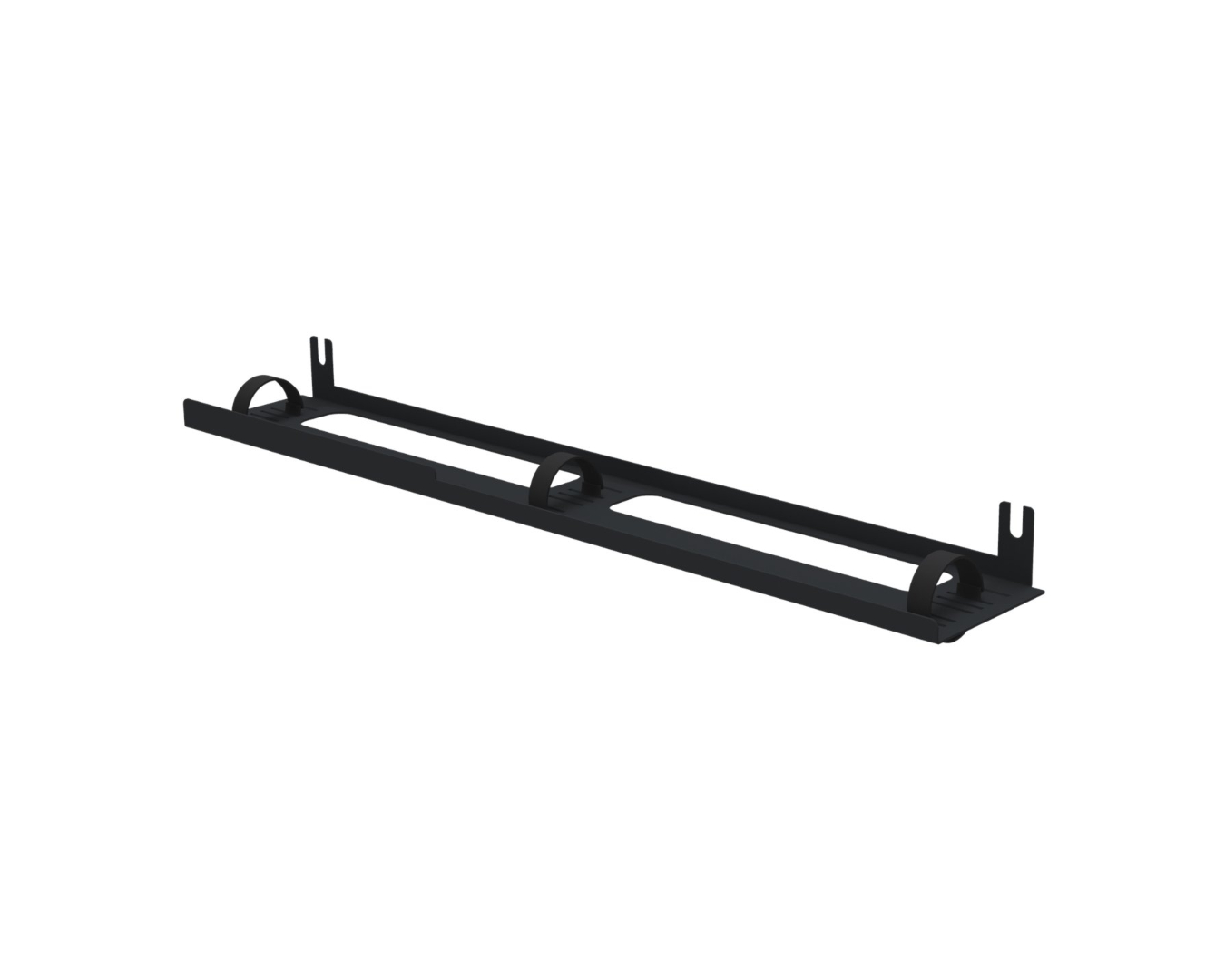

Patchcord organizer PP-A-19"-1U, compatible with the PSS and PSW series, Magnelis®, structured, RAL9005

Request for quotation
  • patchcord organizer designed for the horizontal organization of patchcords overlength connected into the patch panel,

  • dedicated for installation with PSS, PSW-E and PSW-P series fiber optic patch panels,

  • designed to be mounted on the front panel of the patch panels, thus it does not take up additional rack unit height in the cabinet,

  • suitable for installation in 19" ODF cabinets and racks,

  • prevents accidental damage to patch cords during the opening and closing of the cabinet door,

  • Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

application
telecommunication
dimensions (width x height x depth)
483mm x 40mm x 70mm
rack unit height
1U
rack standard
19"
mounting type
front patch panel
operation temperature range
-40°C to +70°C
impact protection degree IK
IK 10
flammability class
V0 acc. UL 94
weight
~0.25 kg
material
powder painted Magnelis® sheet
color
structural, black RAL9005
standards and certificates
ISO 9001:2015, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
