H-CO-19"-2U-S-R7035

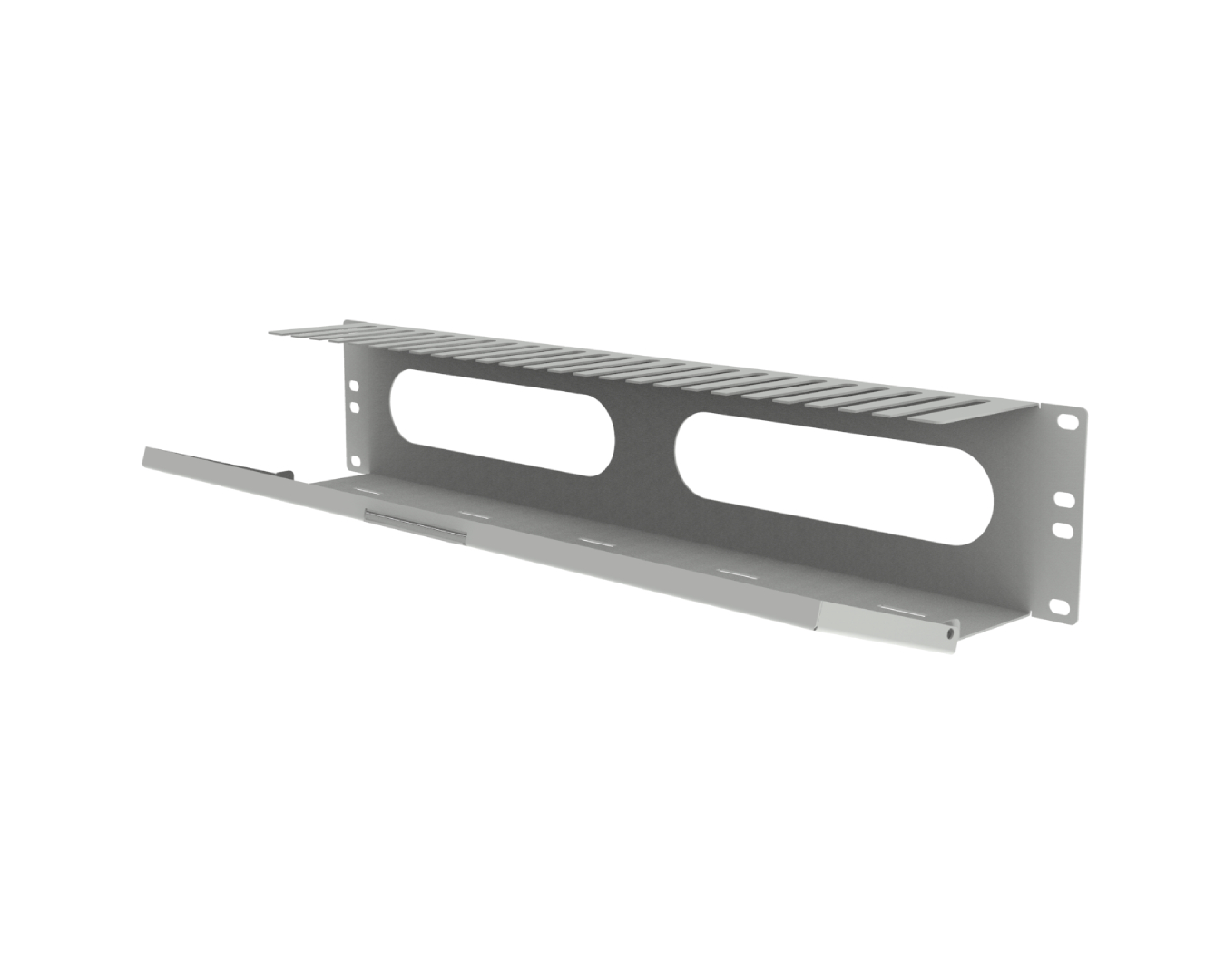

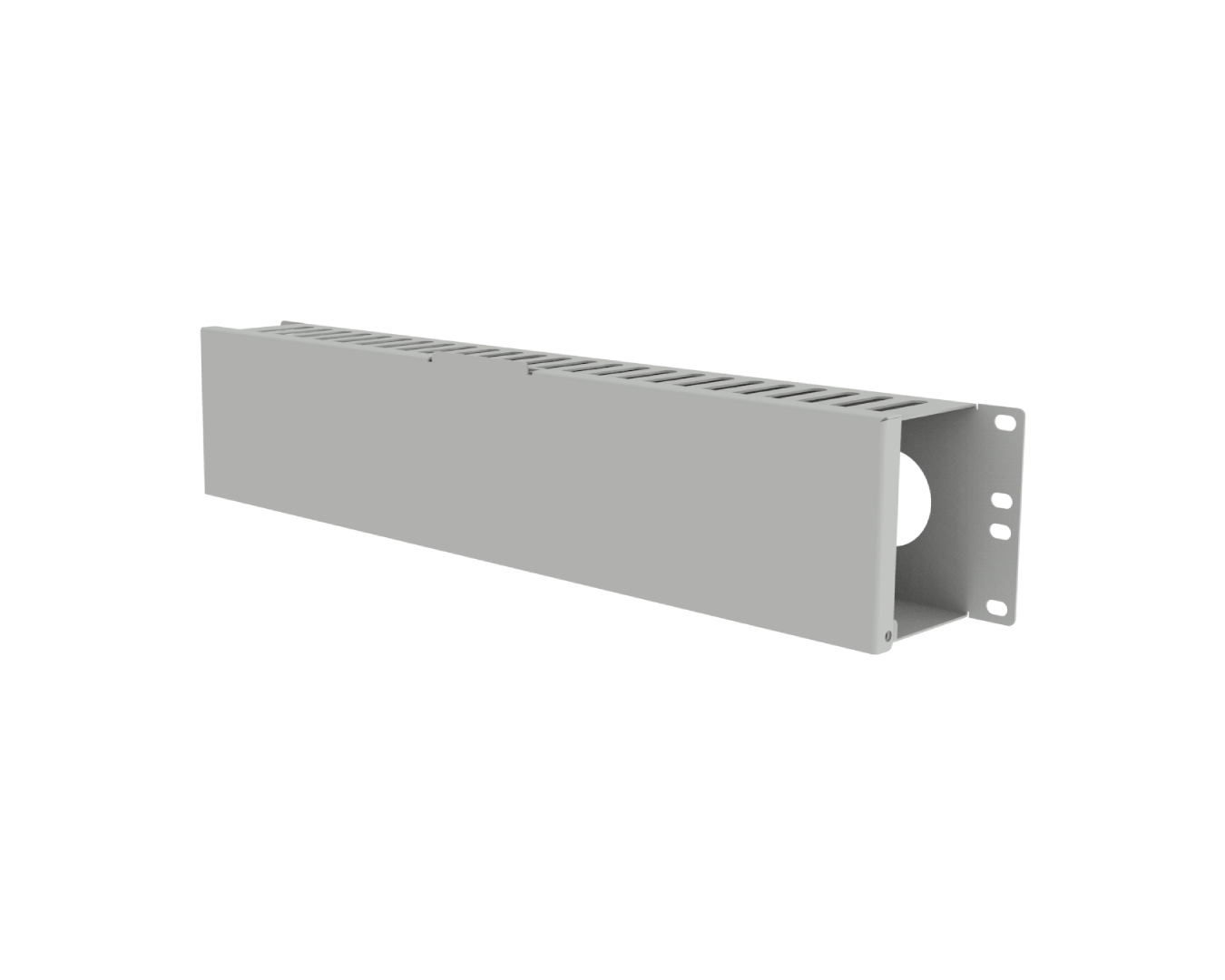

Horizontal cable organizer rack 19" H-CO-19"-2U-S-R7035, 2U, 483x88x70mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation
Additional cabinet accessories: H-CO-19"-2U-S-R7035Cabinex
Additional cabinet accessories: H-CO-19"-2U-S-R7035Additional cabinet accessories: H-CO-19"-2U-S-R7035
  • cable organizer designed for the horizontal organization of patchcords overlength connected into the patch panel,

  • dedicated for installation with, among others, PSS, PSW-E and PSW-P series fiber optic patch panels,

  • suitable for installation in 19" ODF cabinets and racks,

  • prevents cable tangling, improves cable organization and maintenance, and reduces installation work,

  • ensures an aesthetic appearance of the installation, easy assembly, and protection of patchcords against accidental damage during cabinet opening and closing,

  • Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

application
telecommunication
dimensions (width x height x depth)
483mm x 88mm x 70mm
rack unit height
2U
rack standard
19"
mounting type
front
operation temperature range
-40°C to +70°C
impact protection degree IK
IK 10
flammability class
V0 acc. UL 94
weight
~1.0 kg
material
powder painted Magnelis® sheet
color
structural, light grey RAL7035
standards and certificates
ISO 9001:2015, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
