PD-300/300/100-24-SCS-0K3-S-R7035

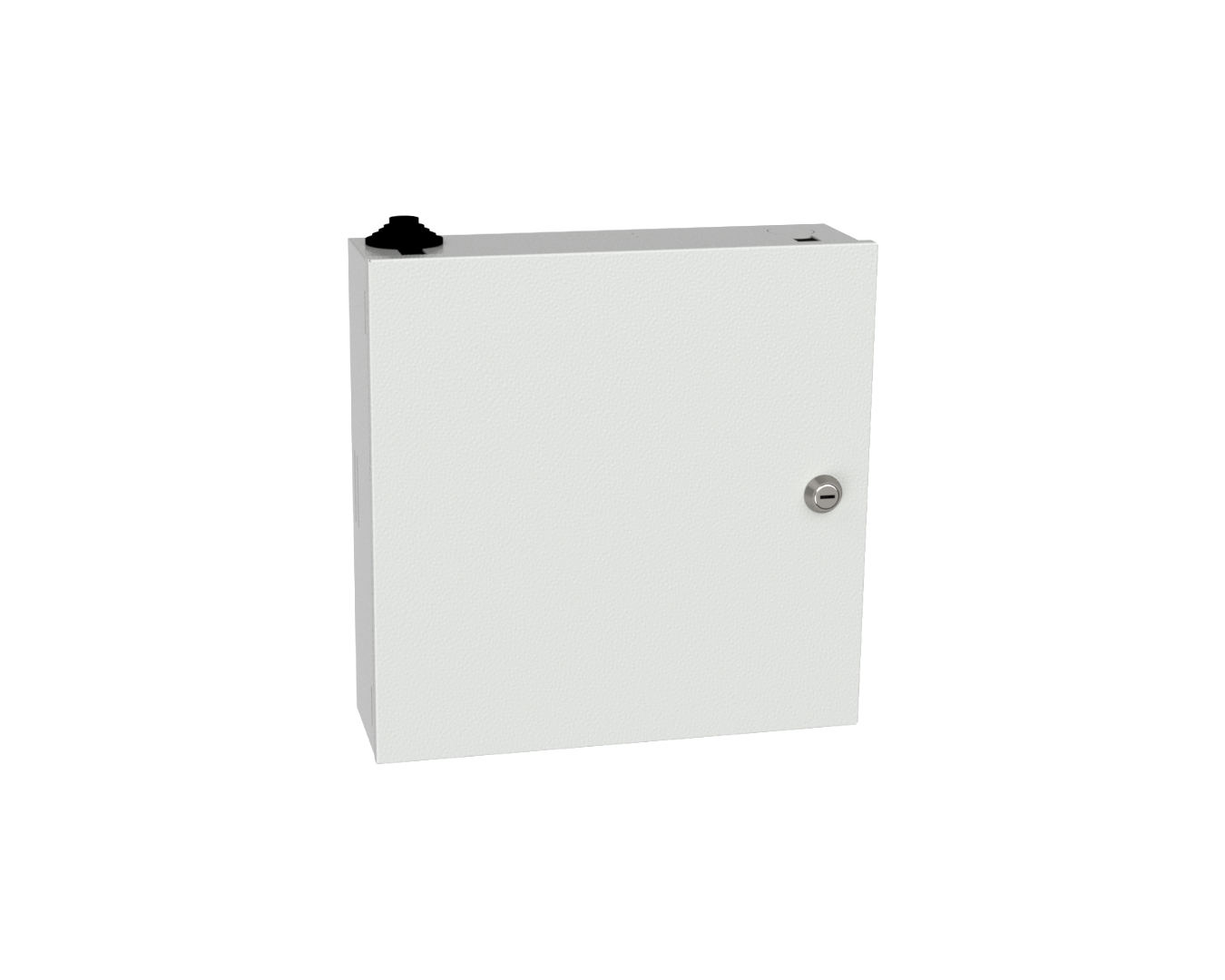

Optical access wall box PD-300/300/100-24-SCS, 24 ports SC simplex, without splice cassettes, 300x300x100mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation
  • optical access box provides a compact wall mounted solution for fiber optic network inside the building, ensures the connection between individual fibers from vertical cabling to subscribers,

  • possibility of mounting connector standards: SC simplex, E2000 simplex, LC duplex,

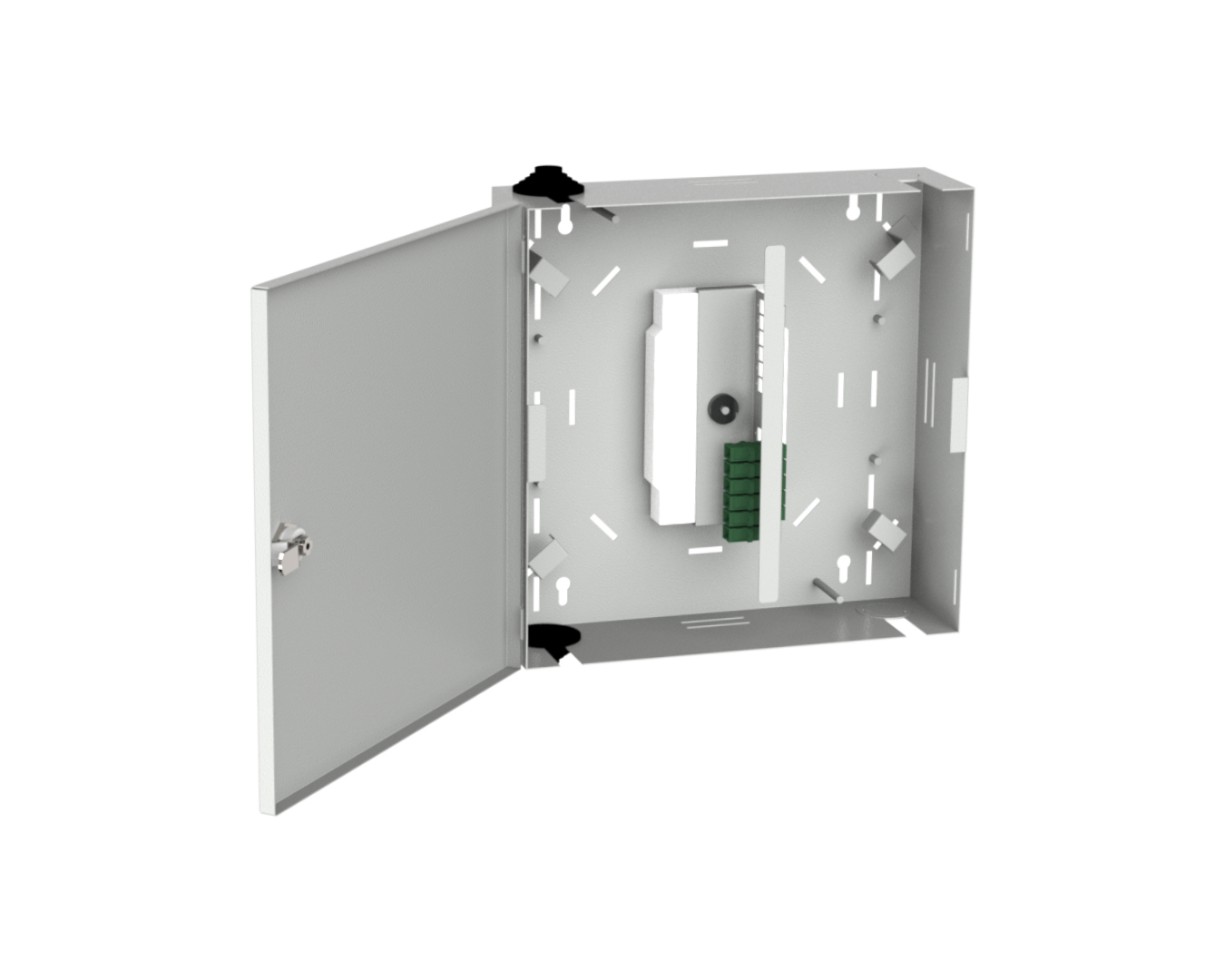

  • optical distribution box equipped with a single removable door locked with a key, key code depending on preferences can be repeatable or different,

  • commutation field, has permanent numbering applied by screen printing,

  • comes with dust proof cable entries on the top and bottom of the box,

  • possibility of installing mini metal box on the splice cassette,

  • possibility of installation loose tube cables without having to disrupt the service (mid-span splicing),

  • compact dimensions allow for aesthetic installation of the existing cable installation,

  • Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

application
telecommunication
dimensions (width x height x depth)
300mm x 300mm x 100mm
number of SC simplex ports
24
ports standard
SC simplex, E2000 simplex, LC duplex
fiber splice cassette type
KS-03-24
fiber splice cassette capacity
24F
max. number of fiber splice cassettes
2
max. splice capacity
48F
recommended pigtail length
2 – 2.5 m
cable entry type
stepped rubber grommet
cable entry diameter
⌀ 38 mm
number of cable entries
4 (2x top / 2x bottom)
mid-span access
YES
central strength member holder (FRP rod)
YES
mounting type
indoor, wall-mounted
operation temperature range
-40°C to +70°C
ingress protection degree IP
IP 41
impact protection degree IK
IK 10
flammability class
V0 acc. UL 94
weight
~3.0 kg
material
powder painted Magnelis® sheet
color
structural, light grey RAL7035
standards and certificates
ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
