PDN-19"-3U-70-S-R7035

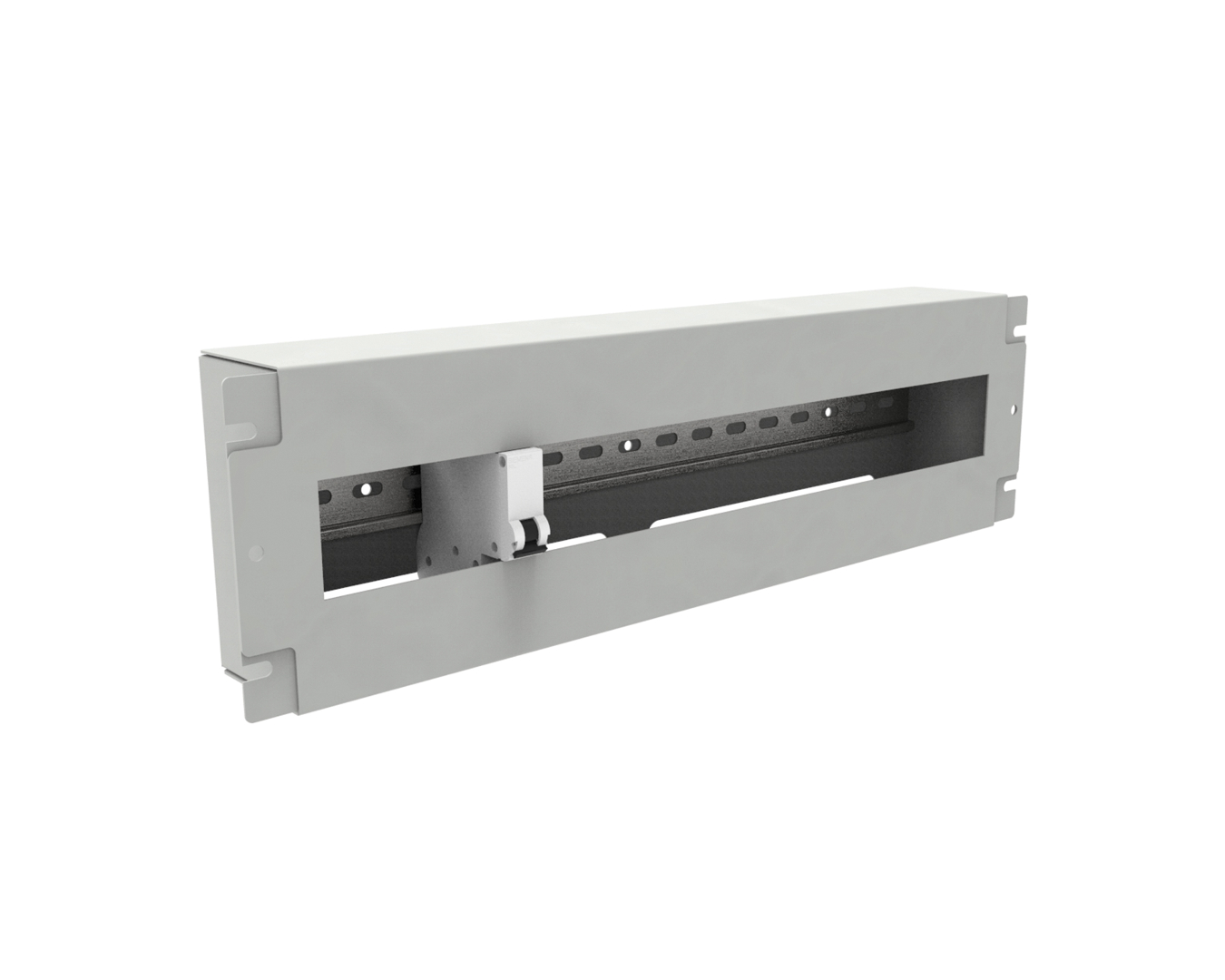

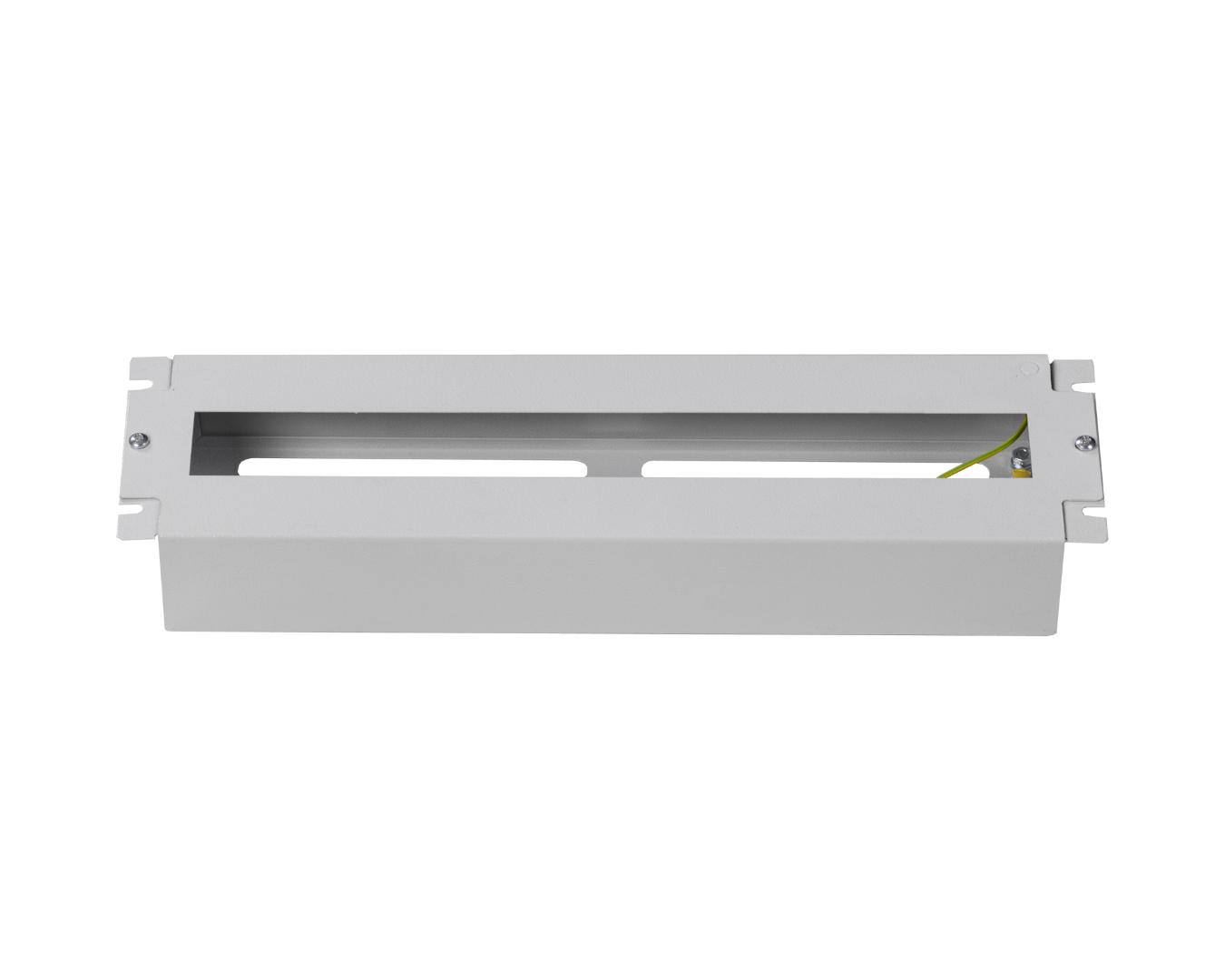

Power distribution panel PDN-19"-3U-70, TH35, Magnelis®, structural, RAL7035
Request for quotation
designed for installation in 19" or 21" (with additional reducers) ODF cabinets and racks,
perforated TH35 mounting rail with a capacity of 22 modules,

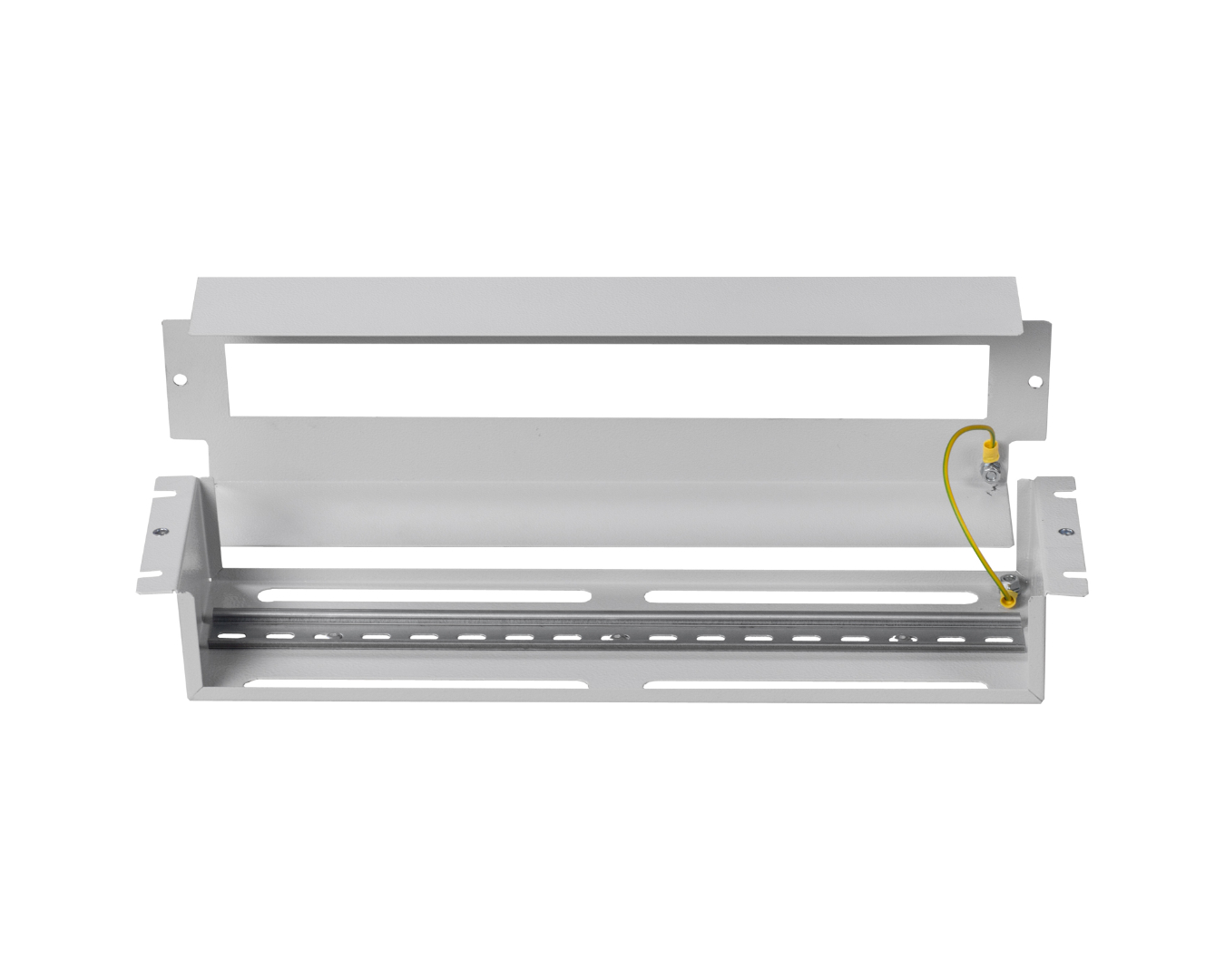

removable front cover providing protection against accidental contact,
grounding wire ensuring safety for the installer against electric shock,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.
Technical specification
- application
- power industry
- product family
- PDN
- dimensions (width x height x depth)
- 483mm x 132mm x 70mm
- rack unit height
- 3U
- rack standard
- 19"
- max. number of modules
- 22
- compatibility
- DIN 35 mm mounting rail (EN 60715)
- grounding details
- front cover
- operation temperature range
- -40°C to +70°C
- impact protection degree IK
- IK 10
- flammability class
- V0 acc. UL 94
- weight
- ~1.5 kg
- material
- powder painted Magnelis® sheet
- color
- structural, light grey RAL7035
- standards and certificates
- ISO 9001:2015, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
