PK-V2-130/30/240-4-SCD-S-R7035

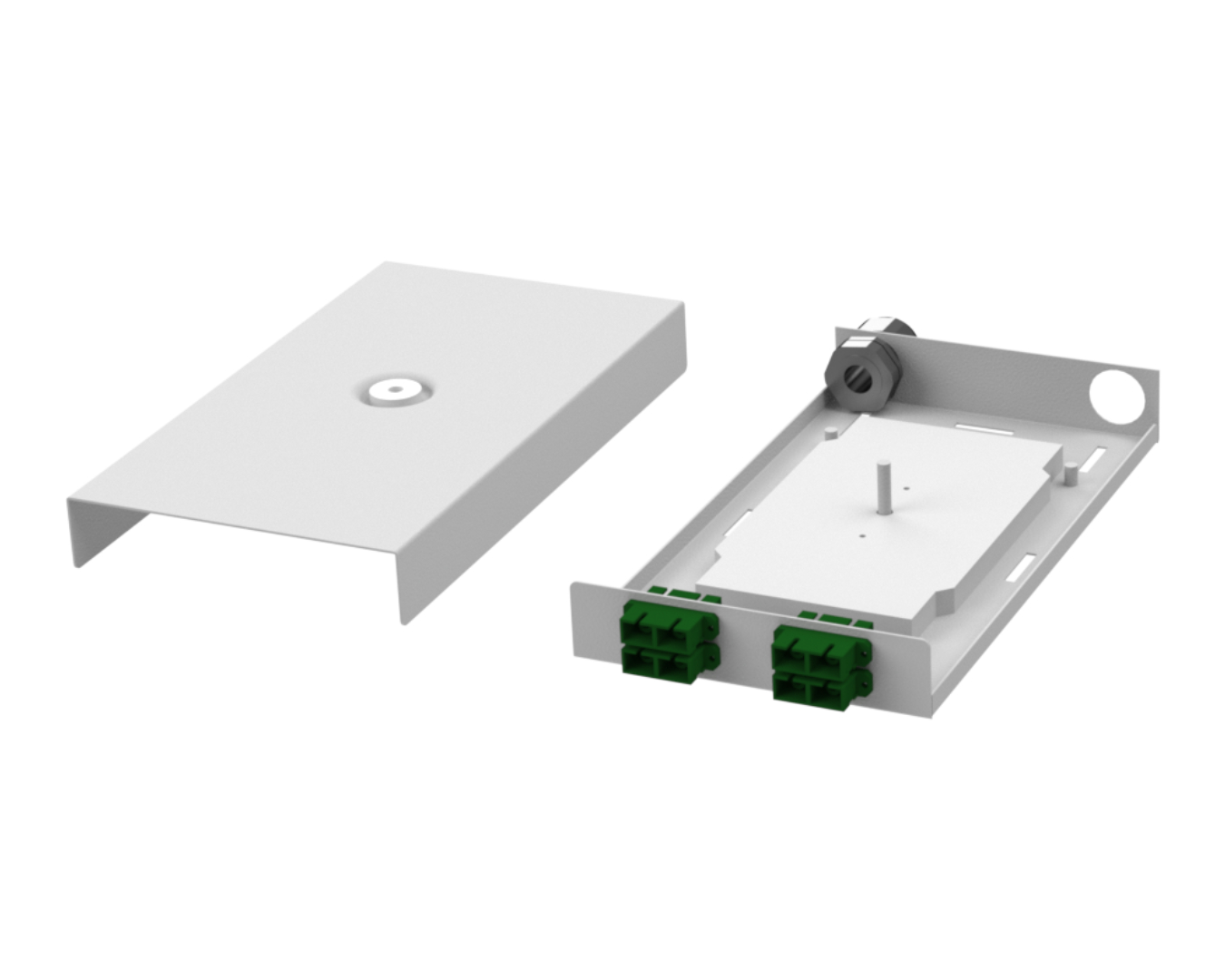

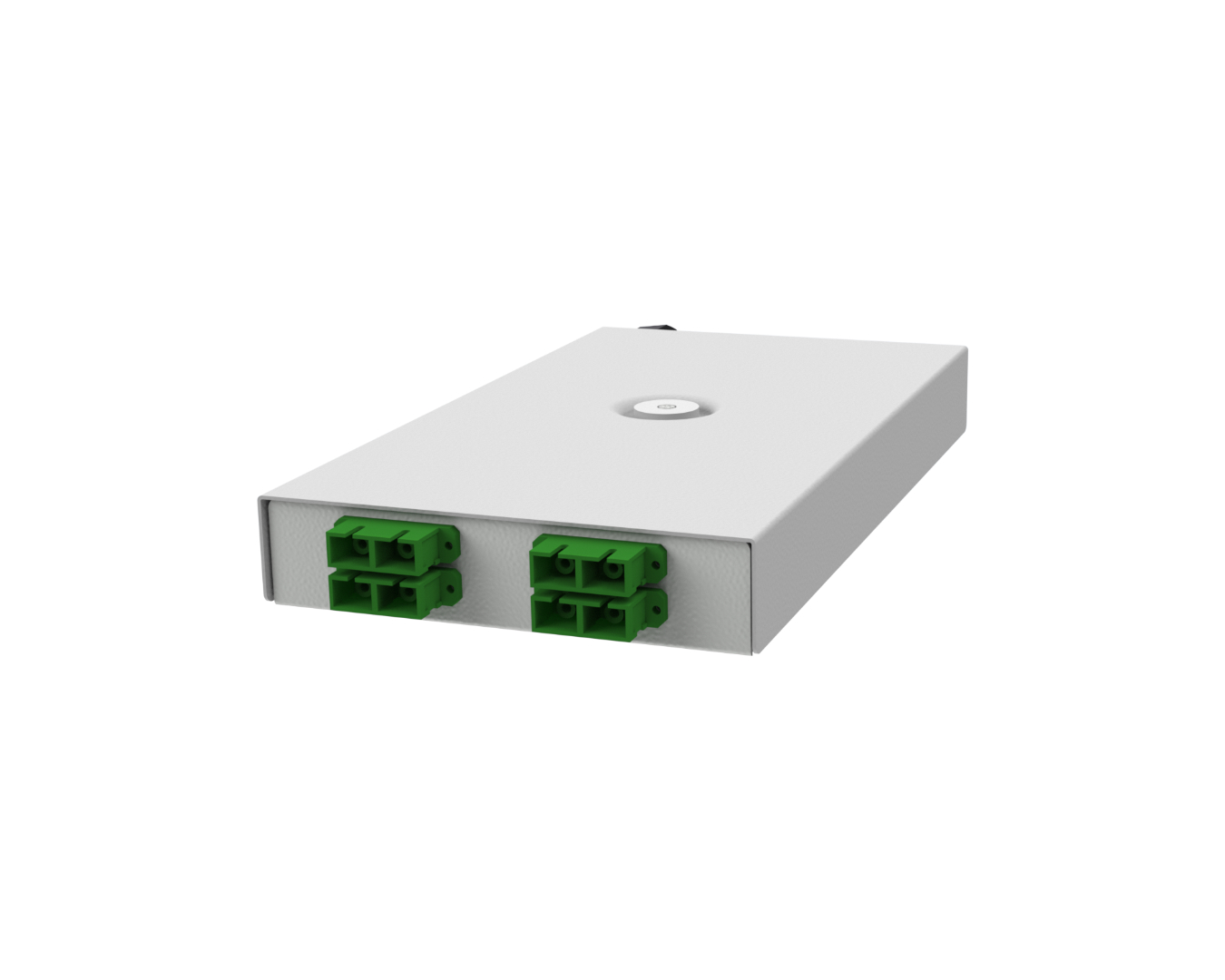

FO termination box PK-V2-130/30/240-4-SCD, 4 ports SC duplex, 1 splice cassette with cover, Magnelis®, structural, RAL7035

Request for quotation

fiber optic box enables termination of up to 8 optical fibers,
possibility of mounting connector standards: SC duplex, LC quad,
dedicated for installation in locations with extremely limited space available or where there is no requirements to install a standard patch panel,
PG13.5 gland allows the termination of a line cable (⌀ 8-12 mm),
well organized spare area of the termination box guarantees safe bending radius, thanks to integrated handles and perforations for cable ties,
simple and solid construction closed with a knurled nut ensures fast and easy installation,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

accessory family: KS-03-24
application: telecommunication
product family: PK
dimensions (width x height x depth): 130mm x 30mm x 240mm
number of SC duplex ports: 4
ports standard: SC duplex, LC quad
fiber splice cassette type: KS-03-24
fiber splice cassette capacity: 24F
max. number of fiber splice cassettes: 1
max. splice capacity: 24F
recommended pigtail length: 1 – 1.5 m
cable entry type: PG13.5 cable gland, rubber grommet with membrane
cable entry diameter: ⌀ 22.5 mm
number of cable entries: 2x rear
central strength member holder (FRP rod): YES
mounting type: wall-mounted / inside a rack
operation temperature range: -40°C to +70°C
ingress protection degree IP: IP 41
impact protection degree IK: IK 10
flammability class: V0 acc. UL 94
weight: ~0.8 kg
material: powder painted Magnelis® sheet
color: structural, light grey RAL7035
standards and certificates: ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
