Optical distribution boxes - wall-mounted

RDD-55/32/20-48-SCD-ZK-R7035

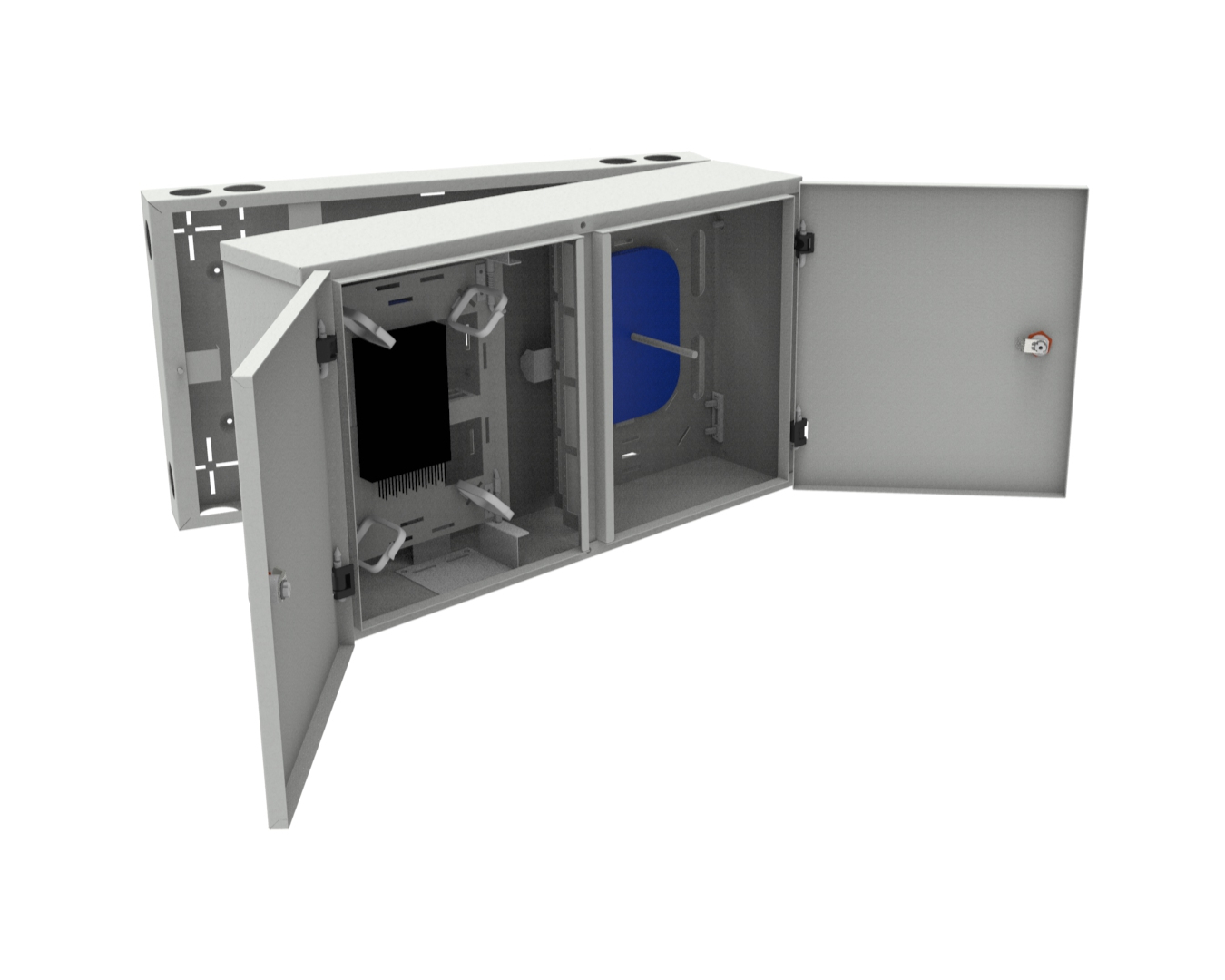

Operator optical distribution box with cable spare section RDD-55/32/20-48-SCD-ZK-R7035, 48 ports SC duplex, without splice cassettes, 550x320x200mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation
Optical distribution boxes - wall-mounted: RDD-55/32/20-48-SCD-ZK-R7035Cabinex
Optical distribution boxes - wall-mounted: RDD-55/32/20-48-SCD-ZK-R7035Optical distribution boxes - wall-mounted: RDD-55/32/20-48-SCD-ZK-R7035

  • optical distribution box provides a high density wall mounted solution for fiber optic network inside the building, which aims to provide and manage fiber distribution in a limited space,

  • possibility of mounting connector standards: SC duplex, LC quad,

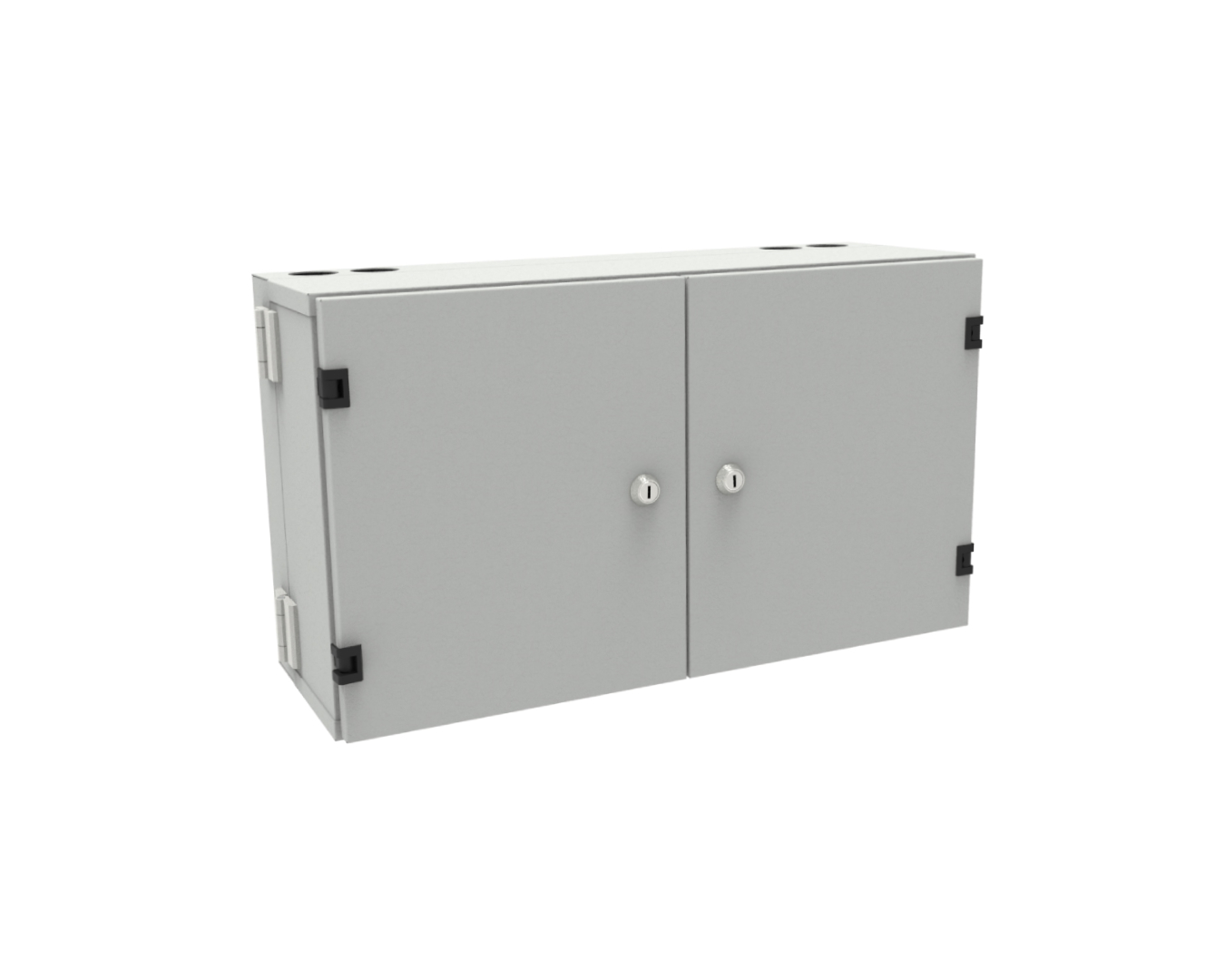

  • optical distribution box equipped with double doors locked with a key, key code depending on preferences can be repeatable or different,

  • partition with a commutation field separating the line section from the subscriber section,

  • possibility of storing a line cable tubes spare and also cable spare (in the series with a spare section),

  • comes with dust proof cable entries on the top and bottom of the box,

  • dedicated space for Black Box splitters with a management section or mini metal box installed on the splice cassette,

  • Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

application
telecommunication
dimensions (width x height x depth)
550mm x 320mm x 200mm
SC duplex line commutation field capacity
4
SC duplex subscriber commutation field capacity
48
ports standard
SC duplex, LC quad
fiber splice cassette type
KS-03-24
fiber splice cassette capacity
24F
max. number of fiber splice cassettes
3
max. splice capacity
72F
recommended pigtail length
2 – 2.5 m
cable entry type
breakable cable slot / hole cap
cable entry diameter
⌀ 38 mm
number of cable entries
10 ( 4x top / 2x side / 4x bottom )
mid-span access
NO
central strength member holder (FRP rod)
YES
mounting type
indoor, wall-mounted
operation temperature range
-40°C to +70°C
ingress protection degree IP
IP 41
impact protection degree IK
IK 10
flammability class
V0 acc. UL 94
weight
~9.0 kg
material
powder painted Magnelis® sheet
color
structural, light grey RAL7035
standards and certificates
ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
