SZK-600/600/120-S-R7035

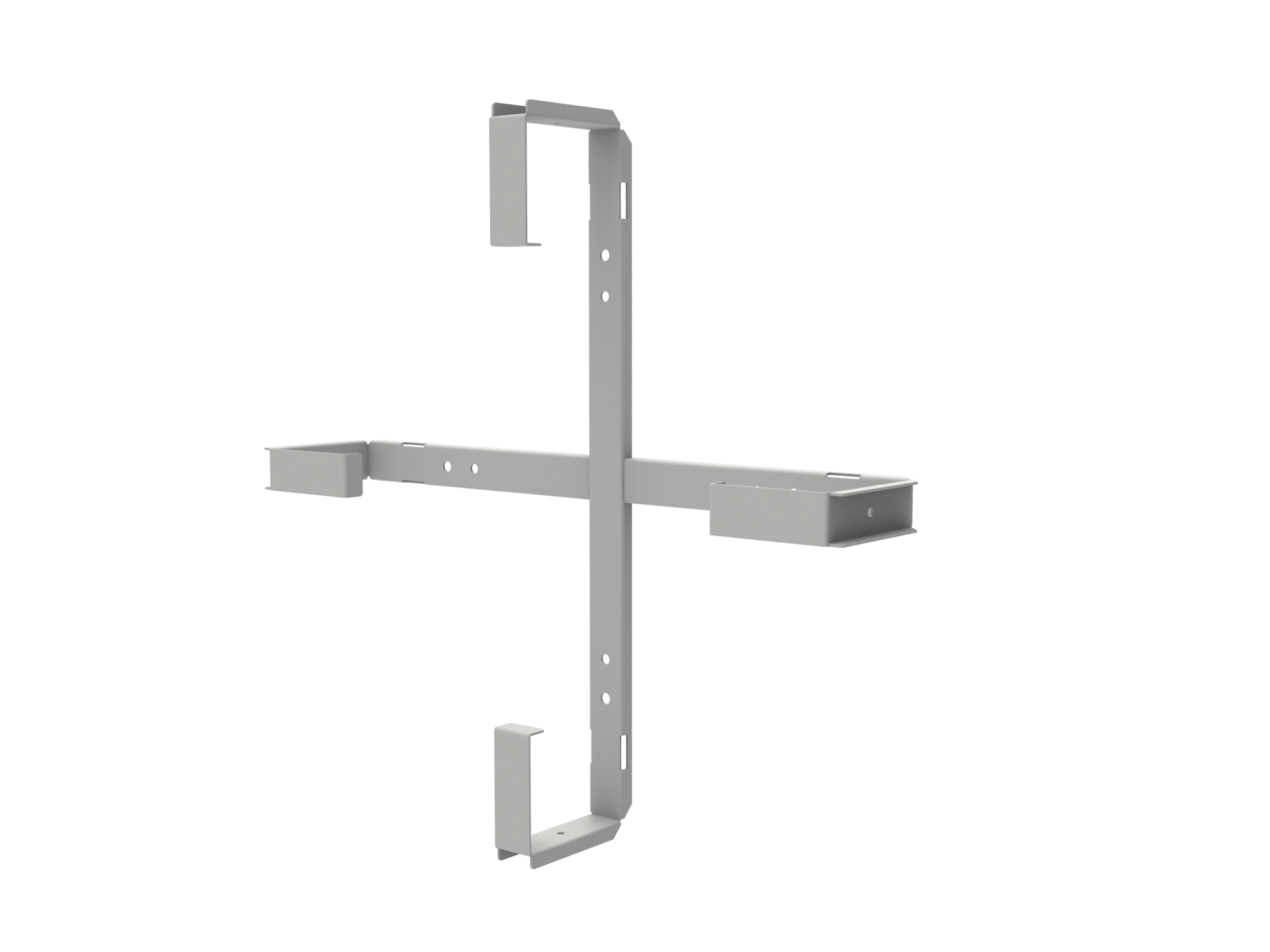

Cable storage frame SZK-600/600/120, 600x600x120mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation
  • provides a safe storing of the line cable while maintaining the proper bending radius,

  • designed for mounting on a wall, pole and in the telecommunication manholes,

  • installation of a cable storage frame on a pole using a stainless steel tape,

  • the simple design ensures easy and quick assembly, as well as trouble-free access to the stored cabling,

  • the holes of the frame allows for the installation of a pole spacer,

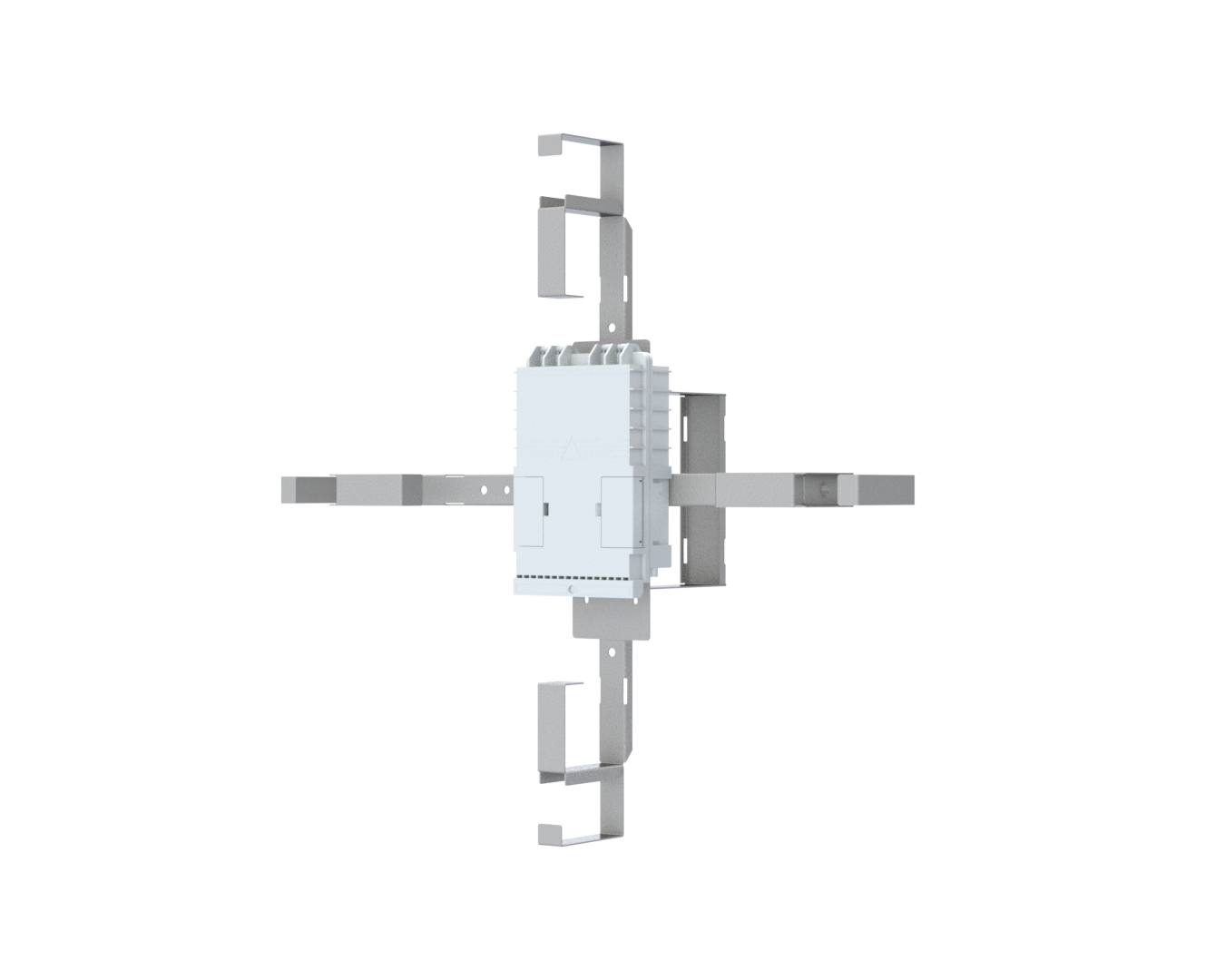

  • possibility of equipping with a dedicated adapter enabling the installation of a pole-mounted fiber optic enclosures,

  • frame is protected by paint with increased resistance to weather conditions,

  • Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

application
telecommunication
dimensions (width x height x depth)
600mm x 600mm x 120mm
flat bar dimensions (width x thickness)
40mm x 2mm
cable storage capacity
⌀ 13 mm – 60 m
adjustment
NO
mounting type
indoor/outdoor, wall-mounted/on pole
operation temperature range
-40°C to +70°C
impact protection degree IK
IK 10
flammability class
V0 acc. UL 94
weight
~0.65 kg
material
powder painted Magnelis® sheet
color
structural, light grey RAL7035
standards and certificates
ISO 9001:2015, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
