SZK-W-19"-240-1U-S-R7035

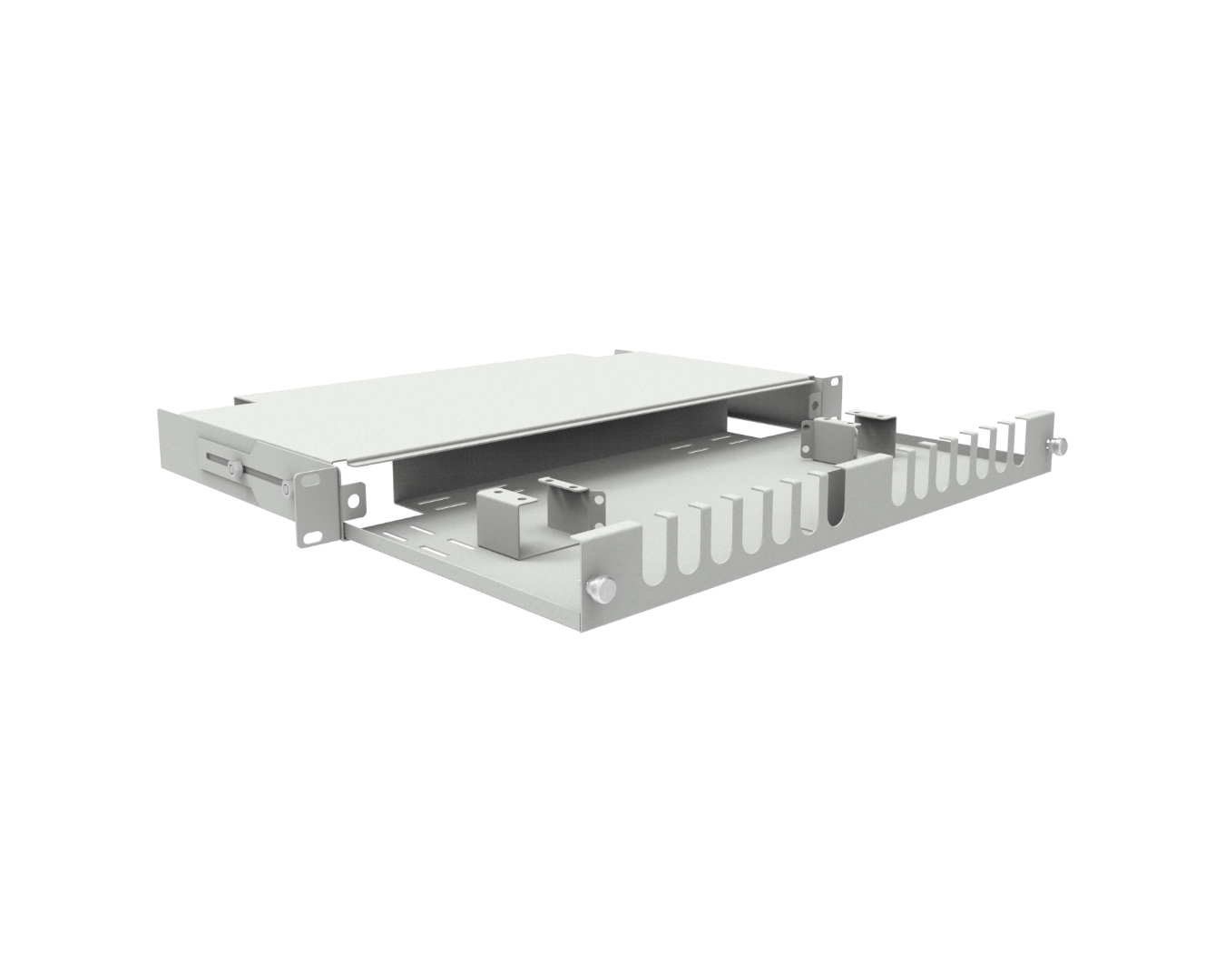

Patchcords storage drawer SZK-W-19"-242-1U, 483x44x240mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation
  • provides safe organization and management of patchcords, station cables and line cables overlength,

  • designed for installation in 19" or 21" (with additional reducers) ODF cabinets and racks,

  • guarantees safe bending radius, thanks to integrated handles and perforations for cable ties,

  • front panel equipped with a comb handles dedicated for segregating and organizing patchcords,

  • patchcords storage drawer locked with two anti-lost screws, which significantly increases the comfort of work during installation and maintenance,

  • smooth adjustment of the mounting depth allows it to be adapted to any cabinet or rack,

  • Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

application
telecommunication
dimensions (width x height x depth)
483mm x 44mm x 240mm
rack unit height
1U
rack standard
19"
number of cable entries
2x rear
installation depth adjustment
YES
mounting type
front rack rails / rear rack rails
operation temperature range
-40°C to +70°C
ingress protection degree IP
IP 41
impact protection degree IK
IK 10
flammability class
V0 acc. UL 94
weight
~0.92 kg
material
powder painted Magnelis® sheet
color
structural, light grey RAL7035
standards and certificates
ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
