SZKLD-PK-250/250/100-S-R7035

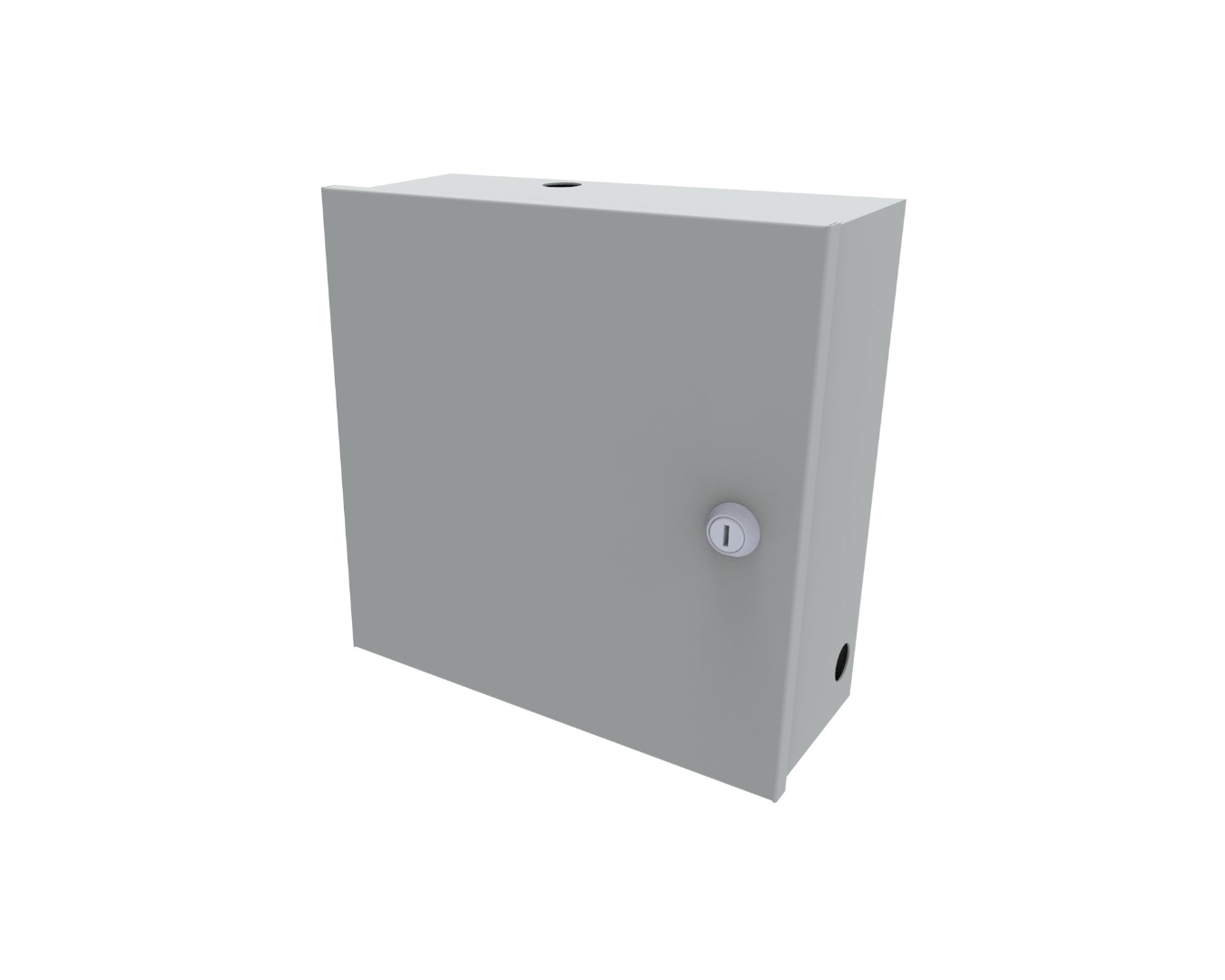

Easy access cable storage box SZKLD-PK-250/250/100, 250x250x100mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation
  • dedicated for storing a reserve of easy-access cable fibers overlength on the top floor of multi-level buildings,

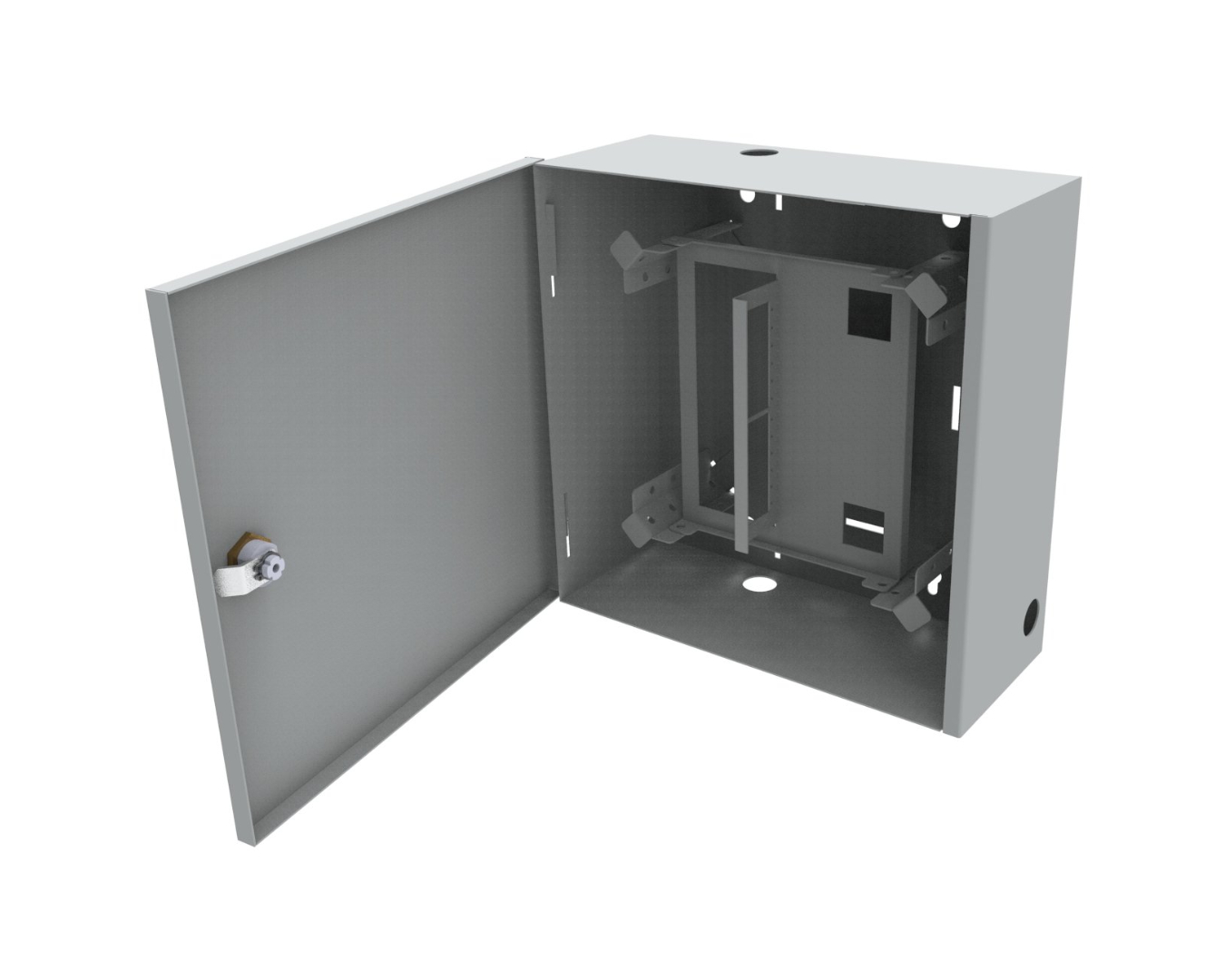

  • insert with a commutation field and a dedicated space for splice cassettes,

  • possibility of mounting connector standards: SC duplex, LC quad,

  • the cable storage box protects the fibers from external mechanical damage while provide a safe bending radius,

  • integrated handles and perforations for cable ties inside the box facilitate proper arrangement of the fibers reserve,

  • storage box equipped with a single removable door locked with a key, key code depending on preferences can be repeatable or different,

  • provides additional protection against unauthorized access,

  • comes with dust proof cable entries,

  • compact dimensions allow for aesthetic installation of the existing cable installation,

  • Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

application
telecommunication
dimensions (width x height x depth)
250mm x 250mm x 100mm
number of SC duplex ports
12
ports standard
SC duplex, LC quad
fiber splice cassette type
KS-03-24
fiber splice cassette capacity
24F
max. number of fiber splice cassettes
1
max. splice capacity
24F
recommended pigtail length
2 – 2.5 m
cable entry type
stepped rubber grommet
cable entry diameter
⌀ 20 mm
number of cable entries
4 (1x top / 1x bottom / 2x side)
mounting type
indoor, wall-mounted
operation temperature range
-40°C to +70°C
ingress protection degree IP
IP 41
impact protection degree IK
IK 10
flammability class
V0 acc. UL 94
weight
~2.1 kg
material
powder painted Magnelis® sheet
color
structural, light grey RAL7035
standards and certificates
ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
