Outdoor cabinets - ventilated mast cabinet

SZM-590/450/430-P-19"-6U-S-R7035

Mast 19" rack cabinet, SZM-590/450/430-P-19"-6U, outdoor, solid doors, single door, 590x450x430mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation
Outdoor cabinets - ventilated mast cabinet: SZM-590/450/430-P-19"-6U-S-R7035Cabinex
Outdoor cabinets - ventilated mast cabinet: SZM-590/450/430-P-19"-6U-S-R7035Outdoor cabinets - ventilated mast cabinet: SZM-590/450/430-P-19"-6U-S-R7035Outdoor cabinets - ventilated mast cabinet: SZM-590/450/430-P-19"-6U-S-R7035

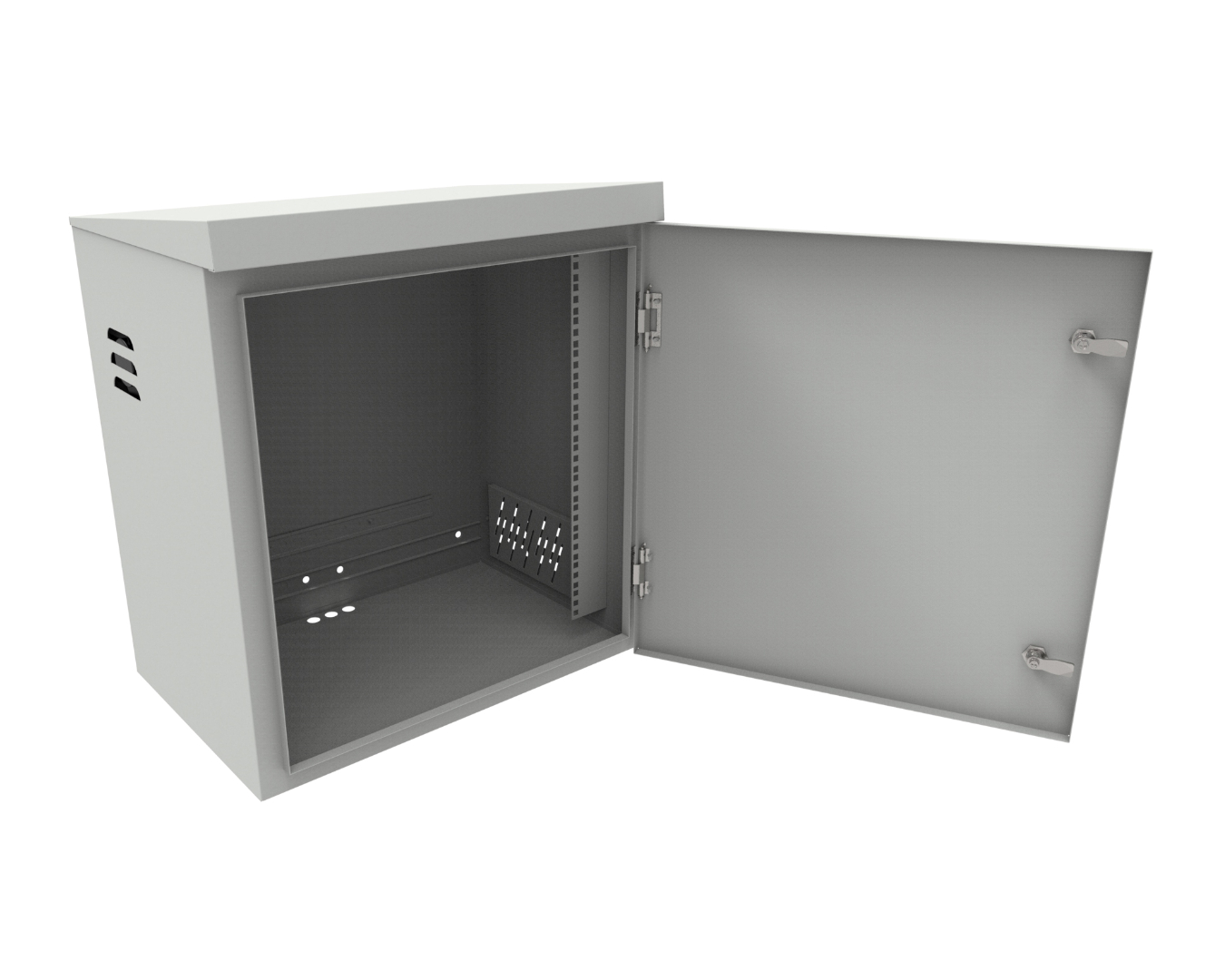

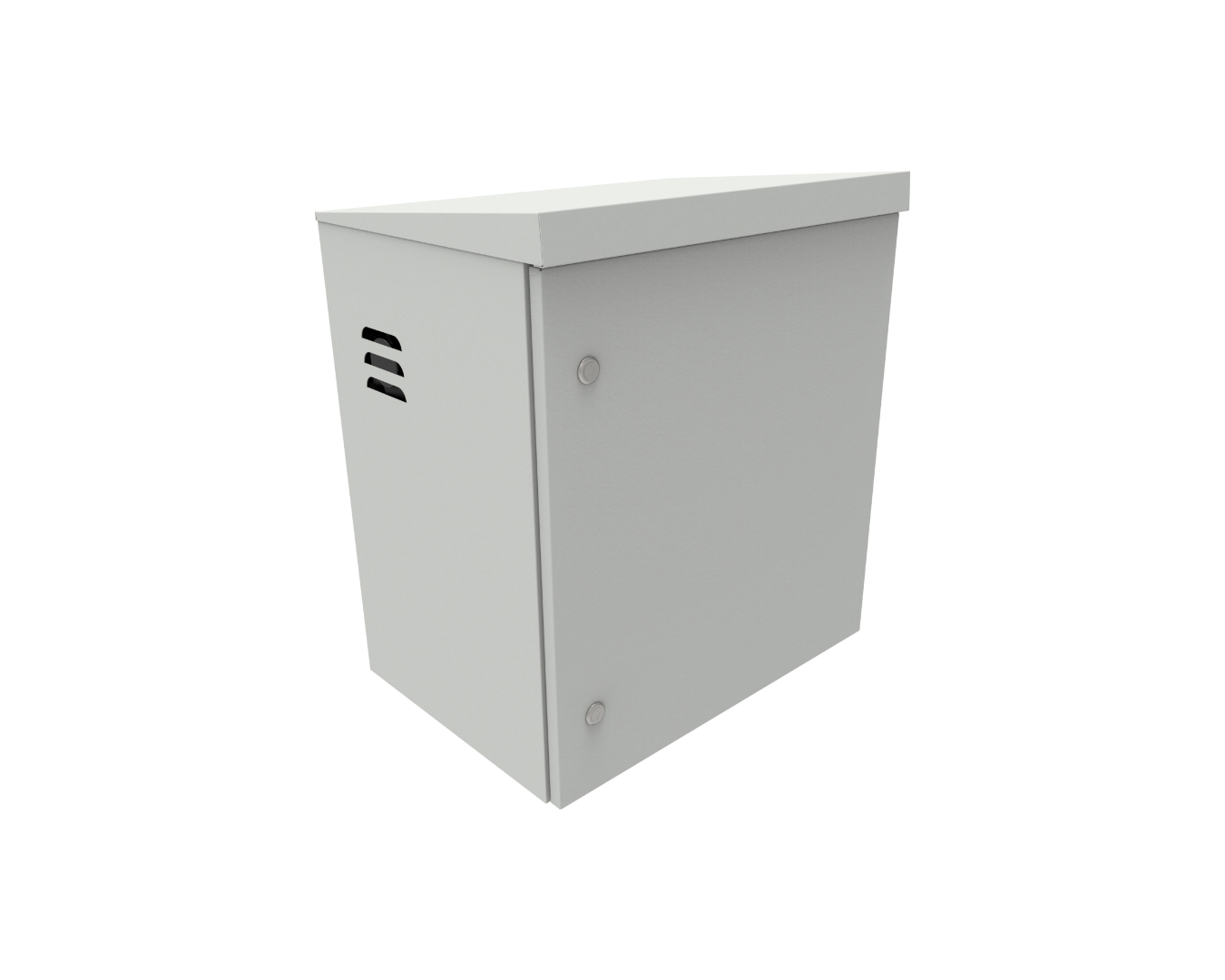

  • mast rack cabinet designed for outdoor installation, used in optical access networks also with automation and control systems,

  • rack solution allows the installation of devices adapted to the 19-inch standard,

  • the construction ensures a high protection degree against adverse weather conditions and unauthorized access,

  • allows for optimal cable management and safe storage of network equipment,

  • PG13.5 gland allows the installation of cables (⌀ 8 -12 mm)

  • cabinet equipped with a single door locked with a key, key code depending on preferences can be repeatable or different,

  • maximum opening angle of the front door up to 120°,

  • designed for installation on a mast with a diameter of 35 - 50 mm or on a wall,

  • cable entries located at the bottom of the housing,

  • Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

application
telecommunication, power industry
dimensions (width x height x depth)
590mm x 450mm x 430mm
rack unit height
6U
rack standard
19"
rack mounting depth
325 mm
number of rack rails
2x front
cable entry type
PG13.5 cable gland
cable entry diameter
⌀ 22.5 mm
number of cable entries
3x bottom
construction
single-walled, single-chamber
door type
solid
number of doors
1
removable side panels
NO
thermostat
equipment ordered separately
grounding details
doors, roof
active ventilation
space for a ⌀ 125mm fan
passive ventilation

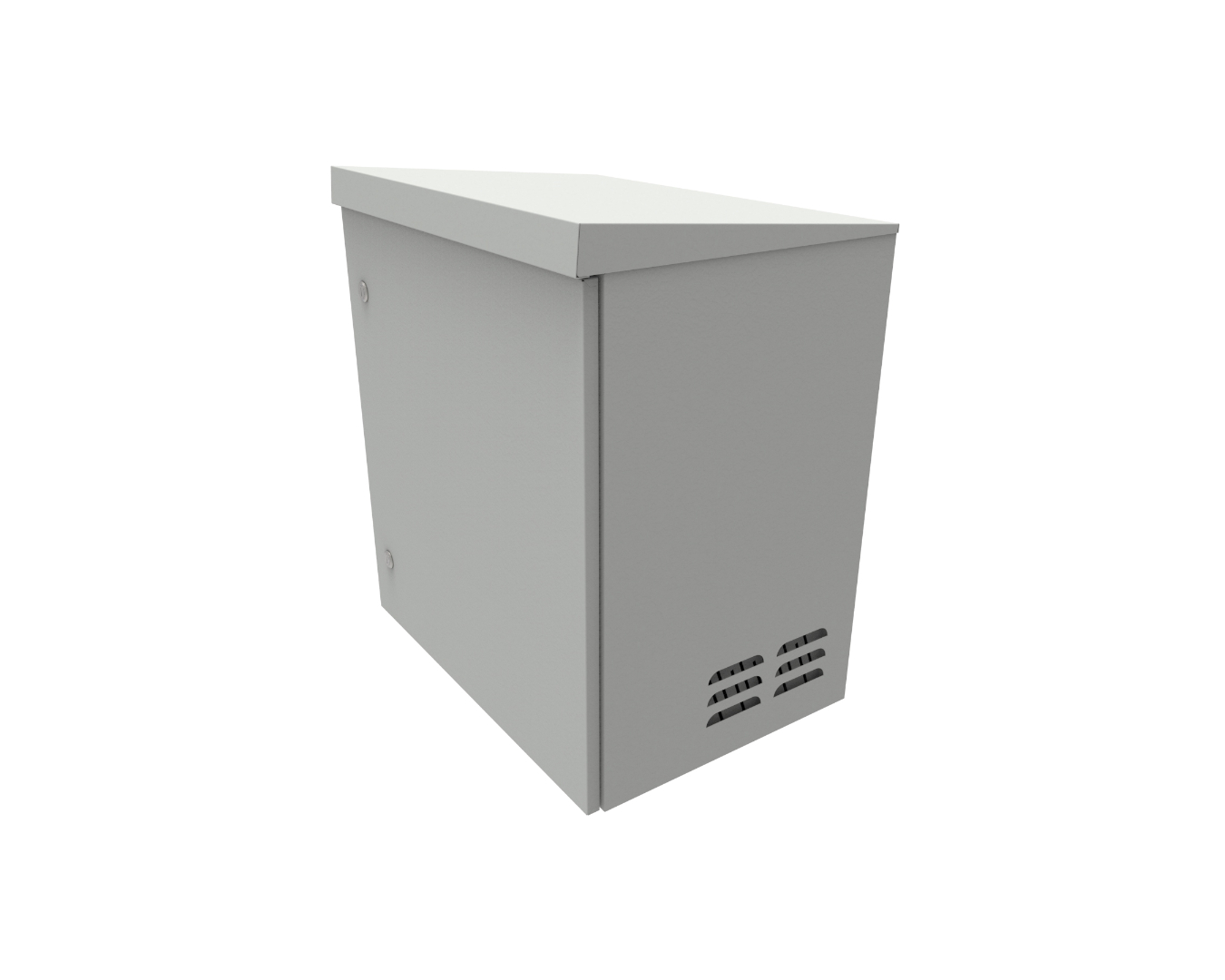

2 ventilation holes on the sides
mounting type
wall-mounted
operation temperature range
-40°C to +70°C
ingress protection degree IP
IP 54
impact protection degree IK
IK 10
flammability class
V0 acc. UL 94
weight
~15.0 kg
material
powder painted Magnelis® sheet
color
structural, light grey RAL7035
standards and certificates
ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
szafa zewnętrzna hermetyczna przeznaczona do montażu na maszcie o średnicy 35-50mm, szafa umożliwia także montaż naścienny, szafa wykonana z blachy z powłoką "Magnelis" gr. 1,0mm, pomalowana proszkowo w kolorze szarym RAL 7035, szafa zamykana za pomocą dwóch zamków hermetycznych o powtarzalnym lub różnym kodzie klucza, w szafie zamontowane przepusty gumowe z membraną w otworach montażowych na uchwyty cybant i na kotwy do montażu naściennego w dolnej ściance szafy zamontowane dławnice PG 13,5 (umożliwiają dławienie kabla o średnicy 6-12mm), możliwe wyposażenie dodatkowe: dla szafy SZM-59/45/40 uchwyt rack 19” 6U zamontowany od drzwi na odległość 80mm (do tylnej ściany 310mm)
