SZWD-690/1430/720-P-19"-24U-S-R7035

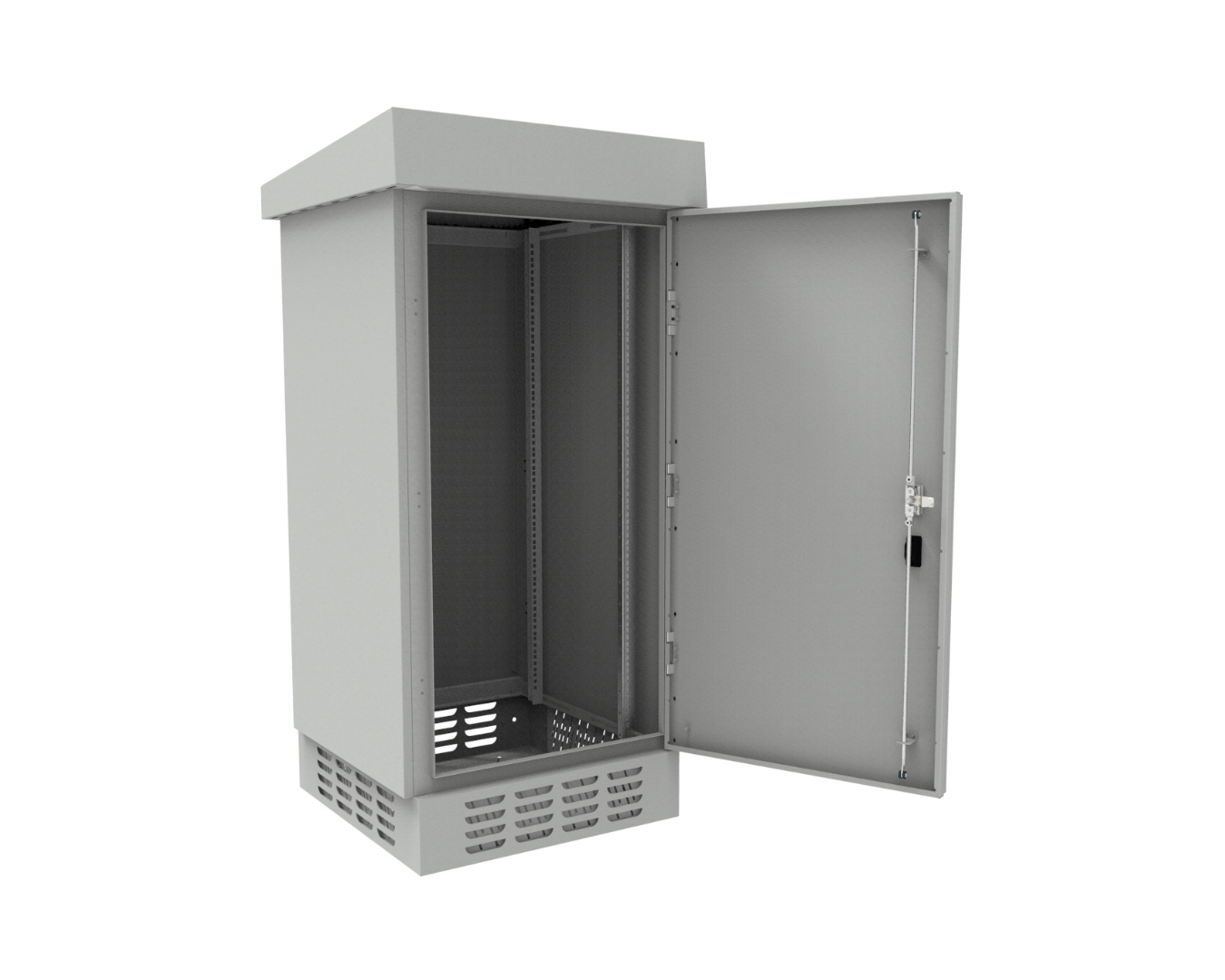

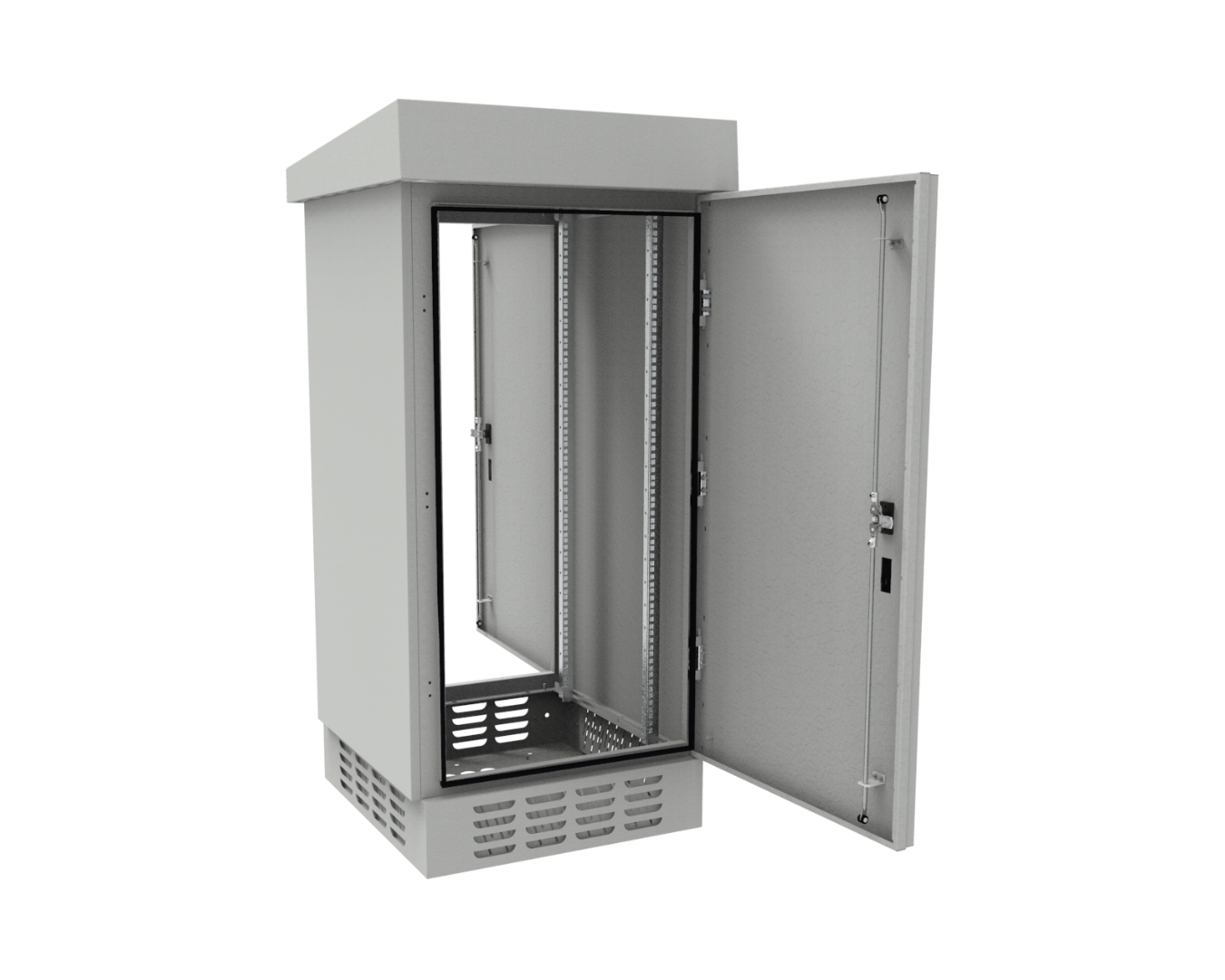

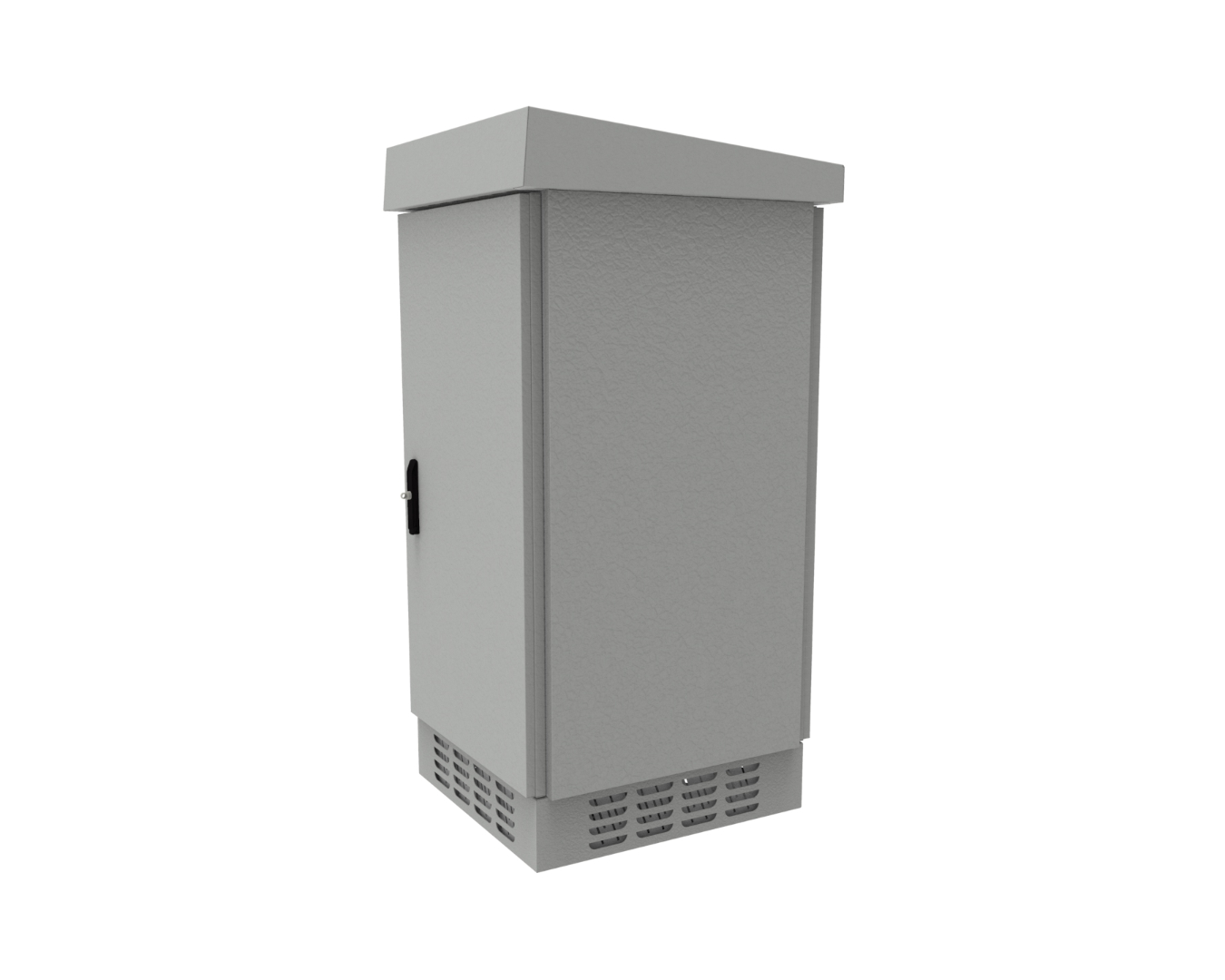

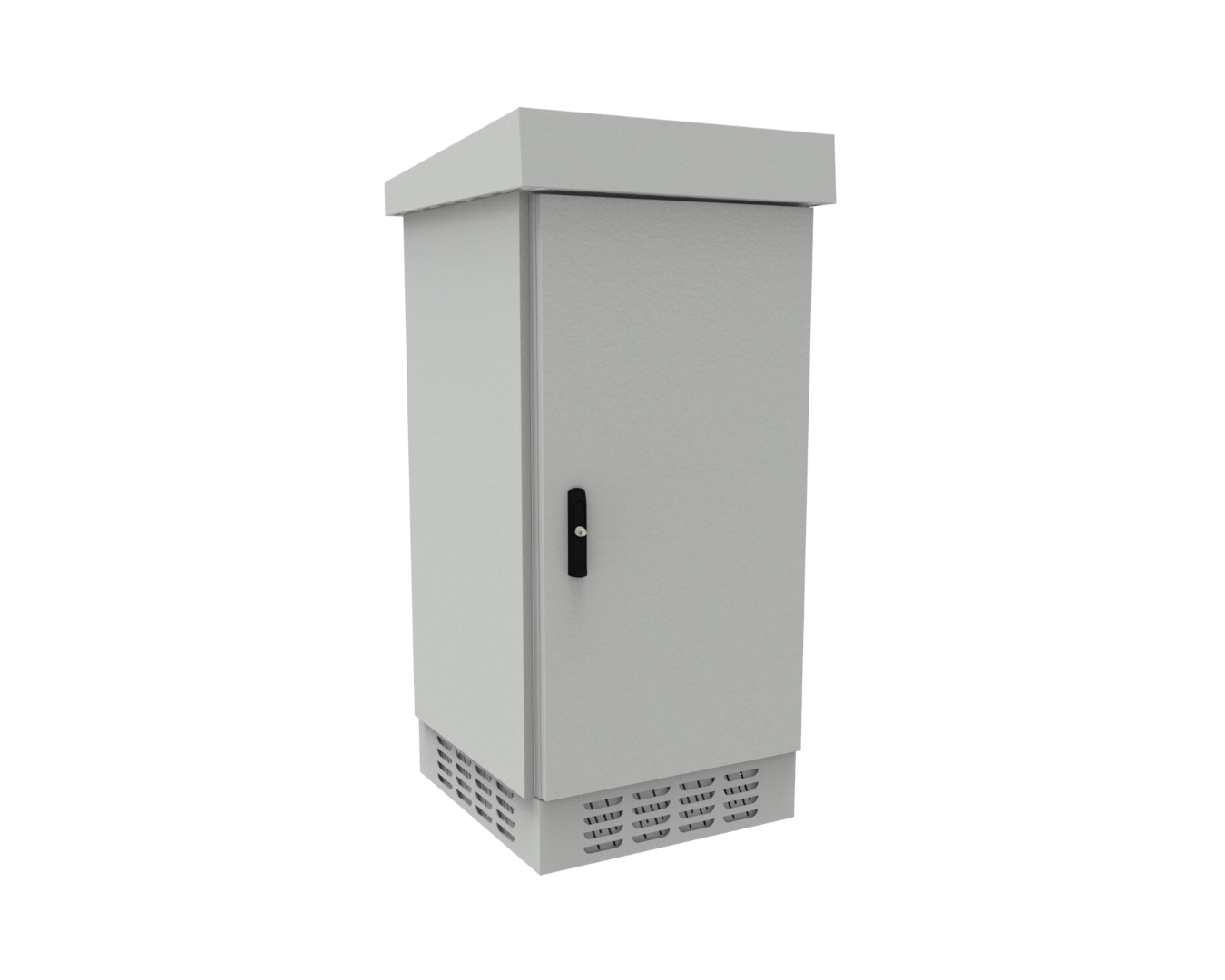

Free-Standing 19" Rack Cabinet Double-Walled, SZWD-690/1430/720-P-19"-24U, outdoor, solid doors, 690x1430x720mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation

  • double-walled rack cabinet designed for outdoor installation, used in optical access networks also with automation and control systems,

  • rack solution allows the installation of devices adapted to the 19-inch standard,

  • the double-walled rack design with an thermo-insulated and self-cooling airspace between them provide higher protection of the installed components from all kinds of weather,

  • allows for optimal cable management and safe storage of network equipment,

  • design of the cabinet ensures proper heat dissipation which protects the devices from overheating,

  • cabinet protected with a single three-point locking door, closed with a patent lock installed in the hinged handle,

  • maximum opening angle of the front door up to 120°,

  • designed for installation on a telecommunication manholes or on a dedicated plinth to be buried into the ground,

  • cable entries located at the bottom of the housing,

  • Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

application
telecommunication, power industry
dimensions (width x height x depth)
690mm x 1430mm x 720mm
rack unit height
24U
rack standard
19"
static load capacity
200 kg
rack mounting depth
510 mm
number of rack rails
2x front / 2x rear
cable entry type
breakable cable slot / hole cap
cable entry diameter
⌀ 38 mm
number of cable entries
6x bottom
construction
double-walled, single-chamber
door type
solid
number of doors
2
removable side panels
NO
thermostat
equipment ordered separately
air conditioner
NO
active ventilation
space for a 4 ⌀ 125mm fans
passive ventilation
4 ventilation holes 144 mm high on the sides of the plinth
grounding details
doors, roof, plinth
mounting type
free-standing
operation temperature range
-40°C to +70°C
ingress protection degree IP
IP 54
impact protection degree IK
IK 10
flammability class
V0 acc. UL 94
material
powder painted Magnelis® sheet
color
structural, light grey RAL7035
standards and certificates
ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
