Outdoor cabinets - free-standing

SZWM-610/2090/610-P-19"-36U-S-R7035

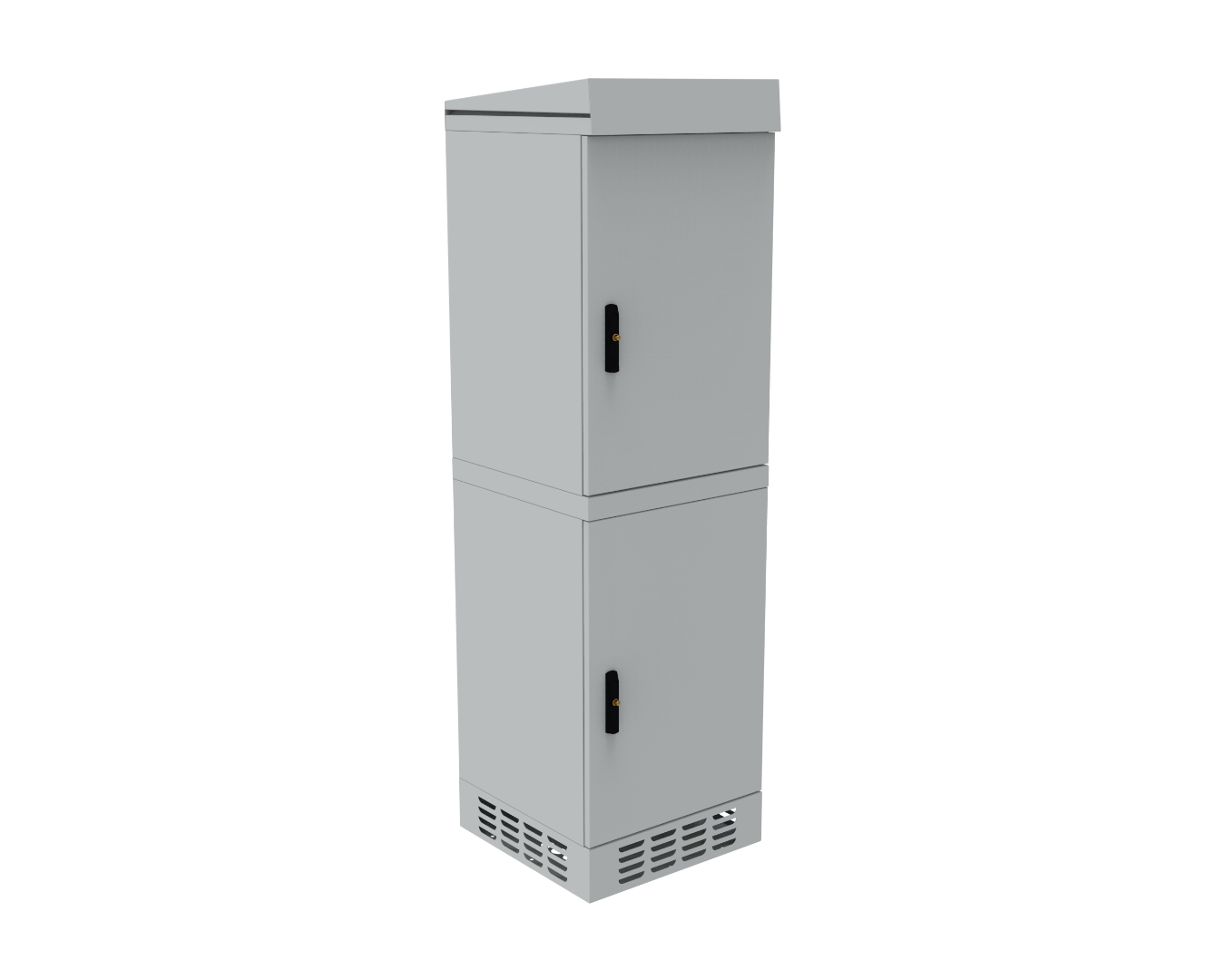

Free-standing 19" modular rack cabinet, SZWM-610/2090/610-P-19"-36U, outdoor, solid doors, 610x2090x610mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation

modular rack cabinet designed for outdoor installation, used in optical access networks also with automation and control systems,
rack solution allows the installation of devices adapted to the 19-inch standard,
modular construction offers easy and scalable development while ensuring a high protection degree of the installed components from all kinds of weather,
allows for optimal cable management and safe storage of network equipment,
design of the cabinet ensures proper heat dissipation which protects the devices from overheating,

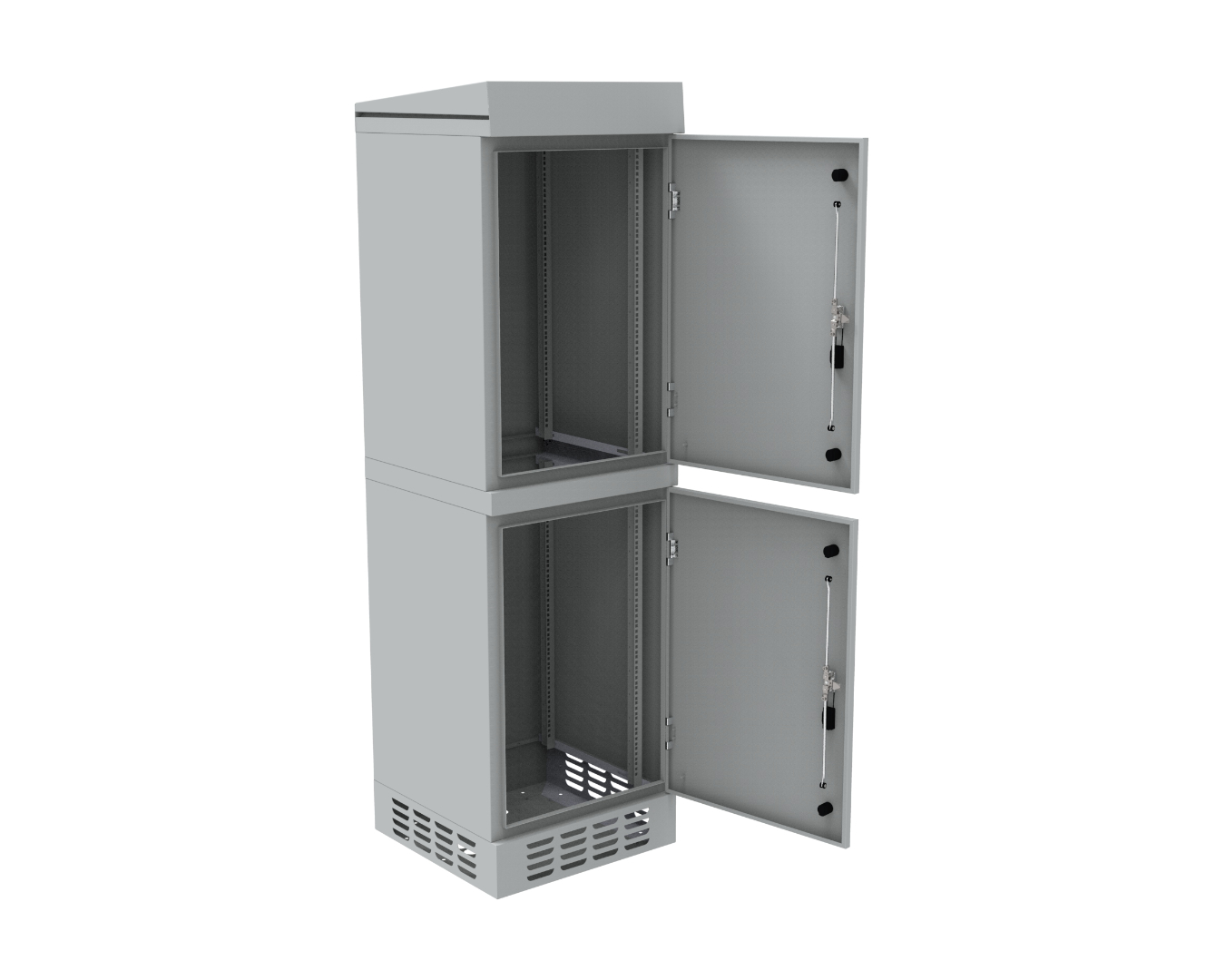

cabinet protected with a single three-point locking door, closed with a patent lock installed in the hinged handle,
maximum opening angle of the front door up to 120°,
designed for installation on a telecommunication manholes or on a dedicated plinth to be buried into the ground,
cable entries located at the bottom of the housing,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

application: telecommunication, power industry
product family: SZWM
dimensions (width x height x depth): 610mm x 2090mm x 610mm
rack unit height: 36U (2x 18U)
rack standard: 19"
rack mounting depth: 420 mm
number of rack rails: 2x front / 2x rear
cable entry type: breakable cable slot / hole cap
cable entry diameter: ⌀ 38 mm

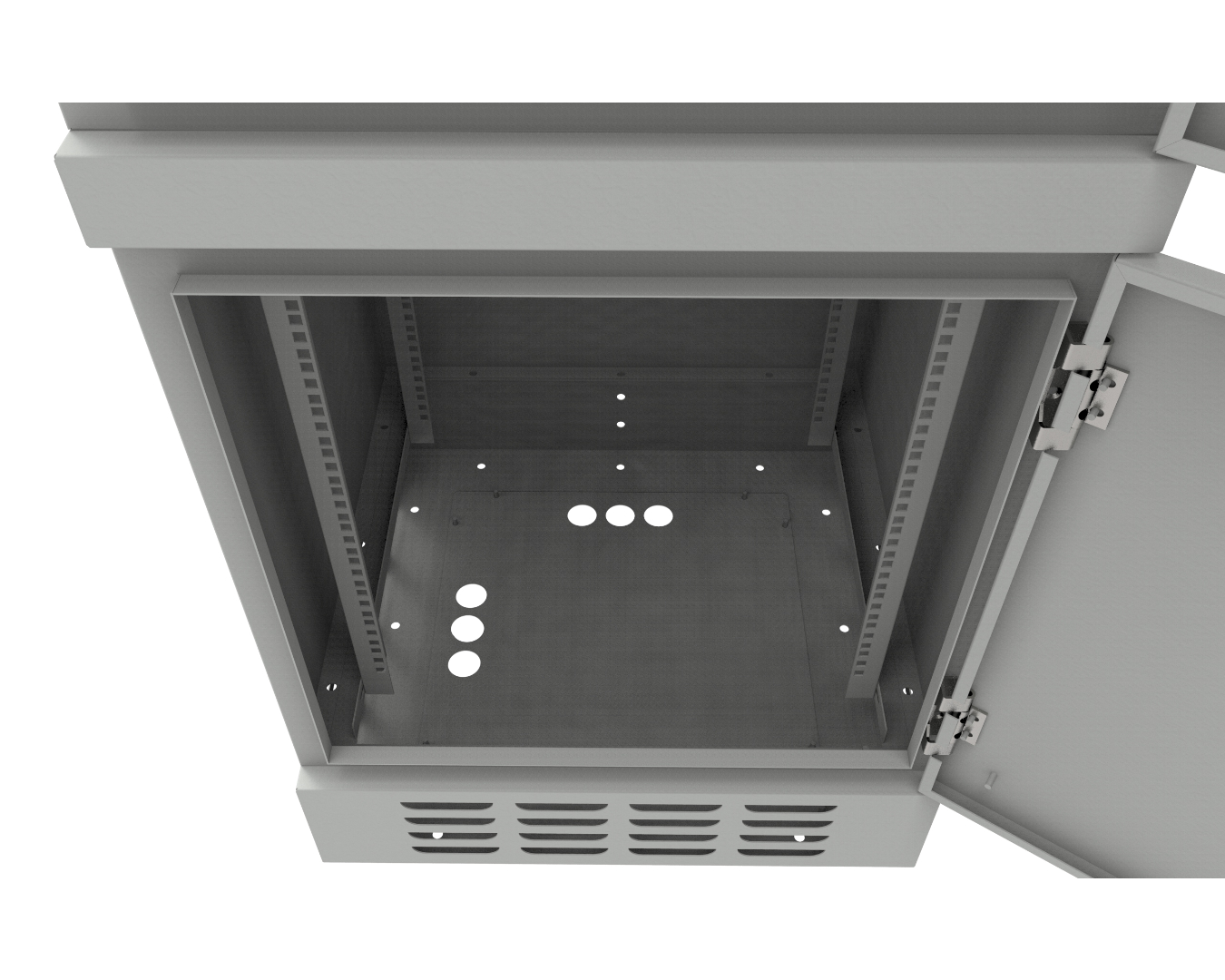

number of cable entries: 6x bottom
construction: single-walled, dual-chamber
door type: solid
number of doors: 2
removable side panels: NO
thermostat: equipment ordered separately
air conditioner: NO

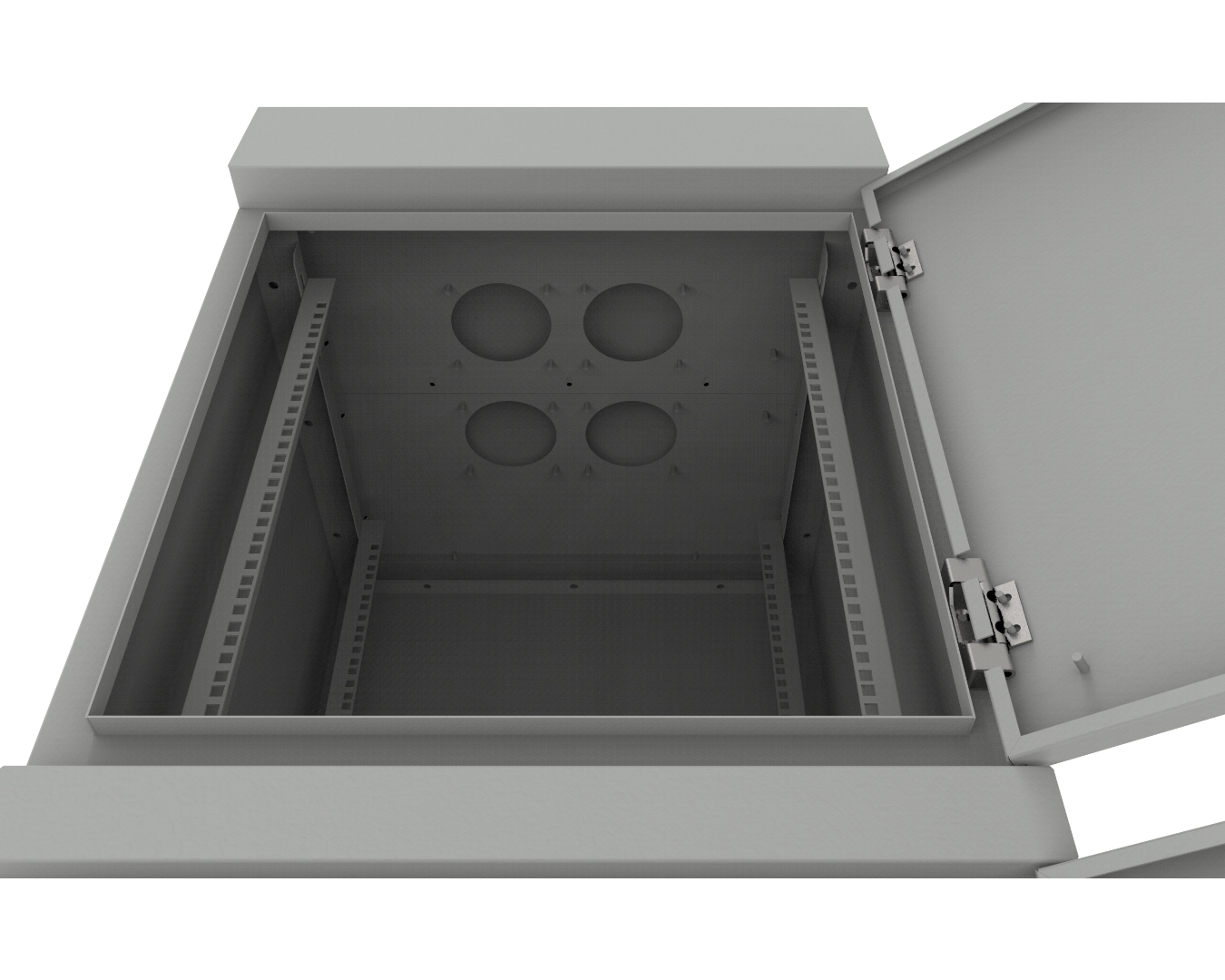

active ventilation: space for a 4 ⌀ 125mm fans
passive ventilation: ventilation holes on the sides of the plinth
grounding details: doors, roof, plinth
mounting type: free-standing
operation temperature range: -40°C to +70°C
ingress protection degree IP: IP 54
impact protection degree IK: IK 10
flammability class: V0 acc. UL 94
weight: ~125.0 kg
material: powder painted Magnelis® sheet
color: structural, light grey RAL7035
standards and certificates: ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
