TPR-560/320/410-S-19"-6U-S-R7035

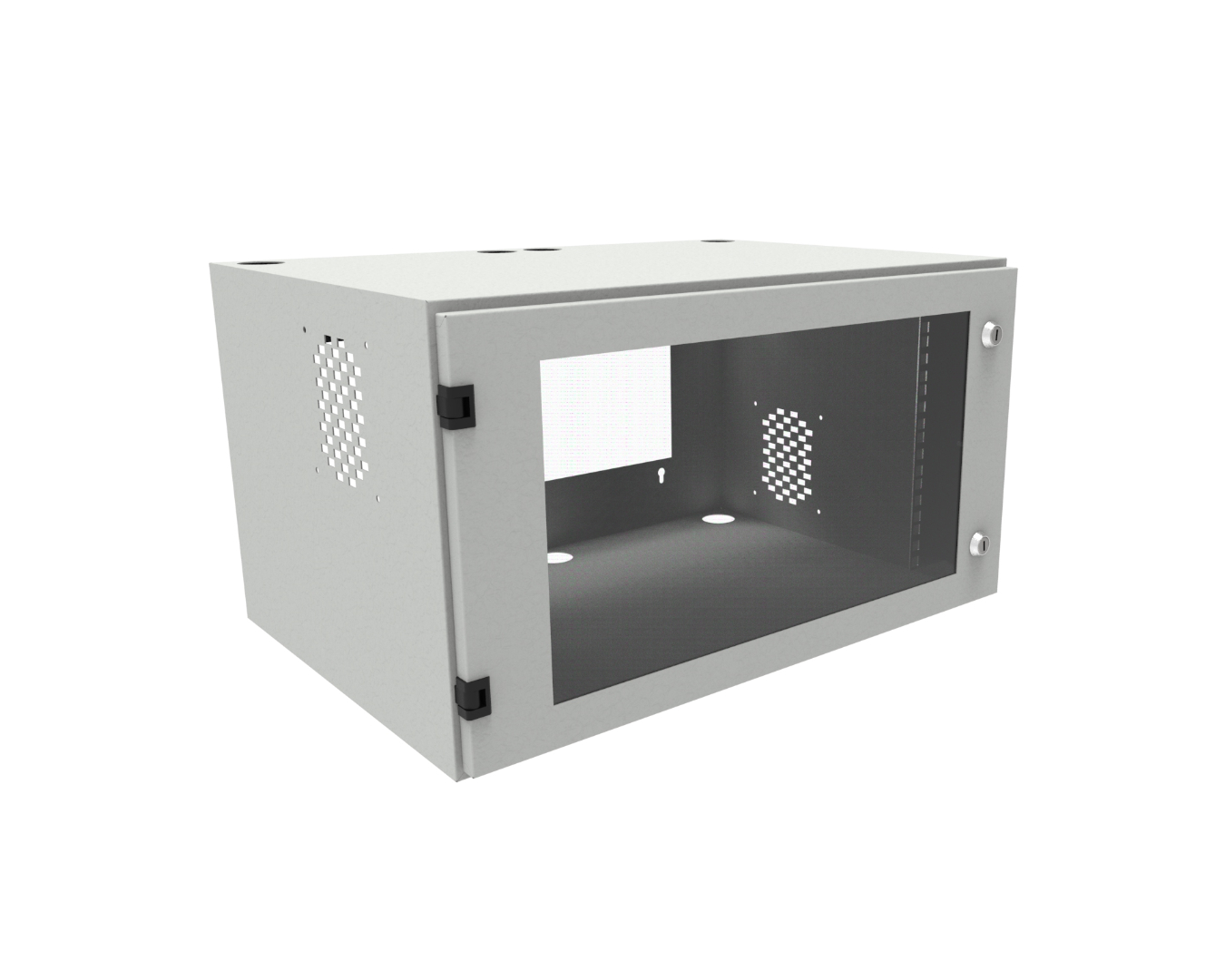

Wall-mounted rack cabinet 19", TPR-560/320/410-S-19"-6U, indoor, door with plexi, 560x320x410mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation
  • rack cabinet is designed for wall mounting in offices, network server rooms and CCTV control rooms,

  • rack solution allows the installation of devices adapted to the 19-inch standard,

  • cabinets are available in various sizes and configurations, which allows for optimal cable management and safe storage of network equipment,

  • guarantees quick and trouble-free access to devices, which significantly improves maintenance,

  • design of the cabinet ensures proper heat dissipation which protects the devices from overheating,

  • rack cabinet equipped with doors locked with a key, key code depending on preferences can be repeatable or different,

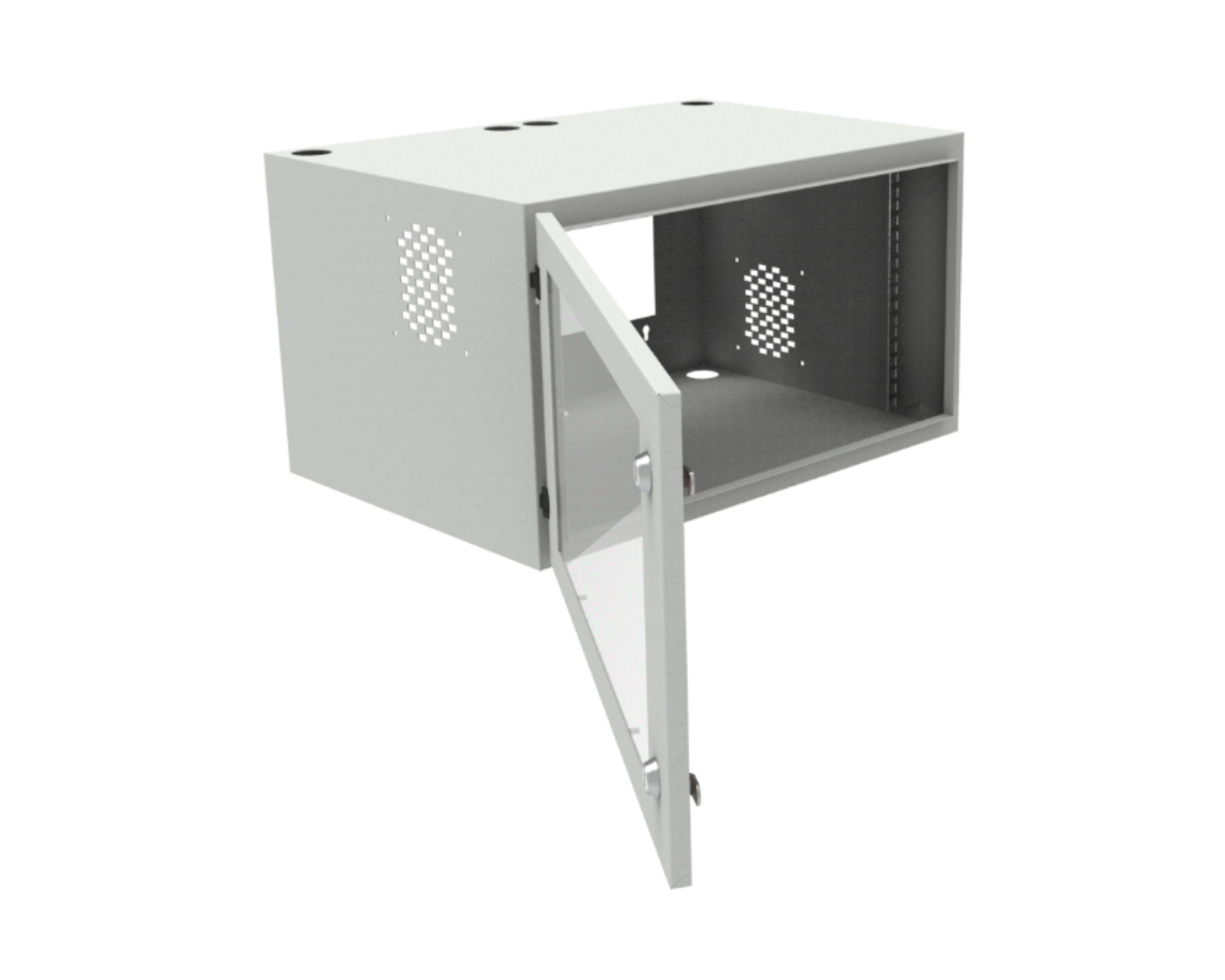

  • maximum opening angle of the front door up to 120°,

  • durable and reliable construction allows for easy and fast wall installation,

  • there are various options for inserting cables in the rear part of the cabinet, we can inset them both from the top and from the bottom after removing the cap,

  • Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

application
telecommunication, power industry
dimensions (width x height x depth)
560mm x 320mm x 410mm
rack unit height
6U
rack standard
19"
rack mounting depth
315 mm
number of rack rails
2x front
cable entry type
breakable cable slot / hole cap
cable entry diameter
⌀ 38 mm or ⌀ 29 mm
number of cable entries
4x top / 4x bottom
construction
single-walled, single-chamber
door type
with PLEXI
number of doors
1
removable side panels
NO
thermostat
NO
grounding details
doors
active ventilation
space for a 2 ⌀ 125mm fans
passive ventilation
2 ventilation holes on the sides, without rear cover
mounting type
wall-mounted
operation temperature range
-40°C to +70°C
ingress protection degree IP
IP 20
impact protection degree IK
IK 10
flammability class
V0 acc. UL 94
weight
~8.0 kg
material
powder painted Magnelis® sheet
color
structural, light grey RAL7035
standards and certificates
ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
