Additional cabinet accessories

U-SZM-585/45/30-SN

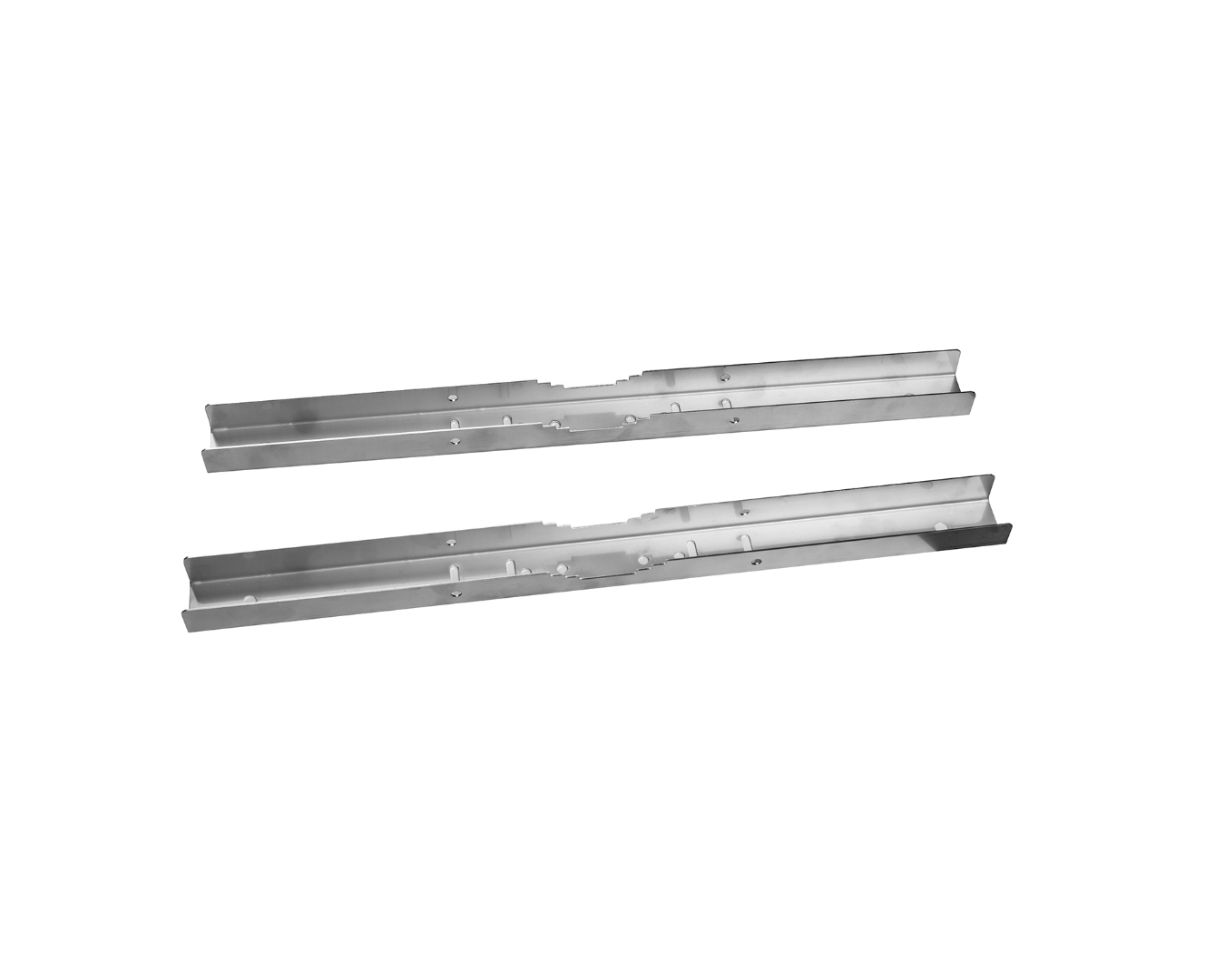

Pole mount brackets U-SZM-585/45/30, 585x45x30mm (WxHxD), stainless steel

Request for quotation

pole mount bracket compatible with the SZM, SZMH series mast cabinets,
designed for the installation of a pole-mounted fiber optic enclosures,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

application: telecommunication, power industry
product family: U-SZM
dimensions (width x height x depth): 585mm x 45mm x 30mm
thickness: 1.5 mm
mounting type: outdoor, mast / on pole
operation temperature range: -40°C to +70°C
impact protection degree IK: IK 10
flammability class: V0 acc. UL 94
weight: ~1.0 kg
material: stainless steel
color: NO
standards and certificates: ISO 9001:2015, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE

Pole mount brackets U-SZM-585/45/30, 585x45x30mm (WxHxD), Magnelis®, structural, RAL7035
