V-CO-18U-S-R7035

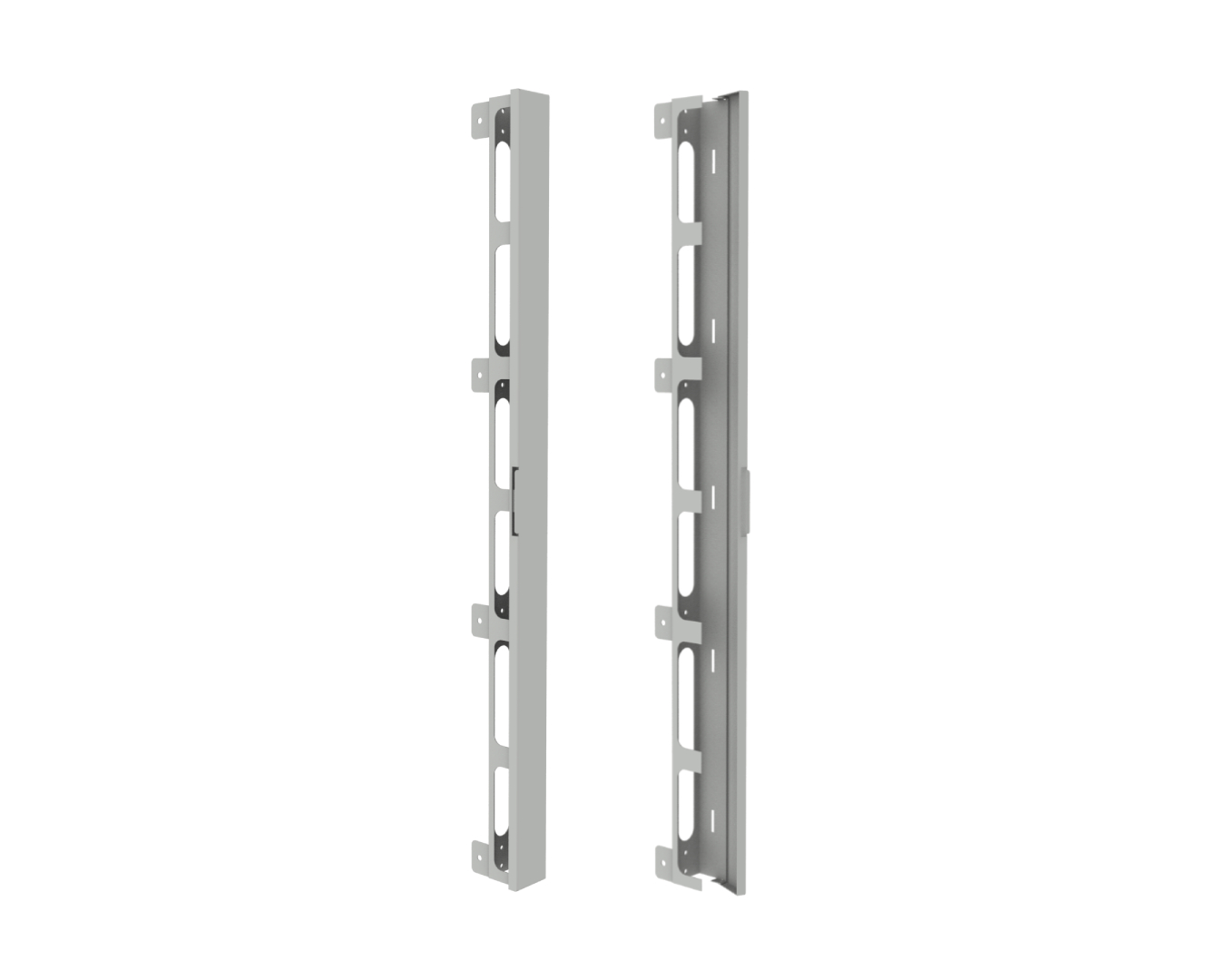

Vertical cable organizer rack V-CO-18U-S-R7035, 18U, 44x810x40mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation
Additional cabinet accessories: V-CO-18U-S-R7035Cabinex
Additional cabinet accessories: V-CO-18U-S-R7035
  • cable organizer designed for the vertical organization and separation of patchcords overlength connected into the patch panel,

  • dedicated for installation, among others, with PSS, PSW-E and PSW-P series fiber optic patch panels,

  • suitable for installation in ODF cabinets and racks on the sides of vertical rack mounting rails,

  • prevents cable tangling, improves cable organization and maintenance, and reduces installation work,

  • ensures an aesthetic appearance of the installation, easy assembly, and protection of patchcords against accidental damage during cabinet opening and closing,

  • Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

application
telecommunication
dimensions (width x height x depth)
44mm x 810mm x 40mm
rack unit height
18U
mounting type
side of the rack mounting rails
operation temperature range
-40°C to +70°C
impact protection degree IK
IK 10
flammability class
V0 acc. UL 94
weight
~0.8 kg
material
powder painted Magnelis® sheet
color
structural, light grey RAL7035
standards and certificates
ISO 9001:2015, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
