ZK-750/750/240-S-R7035

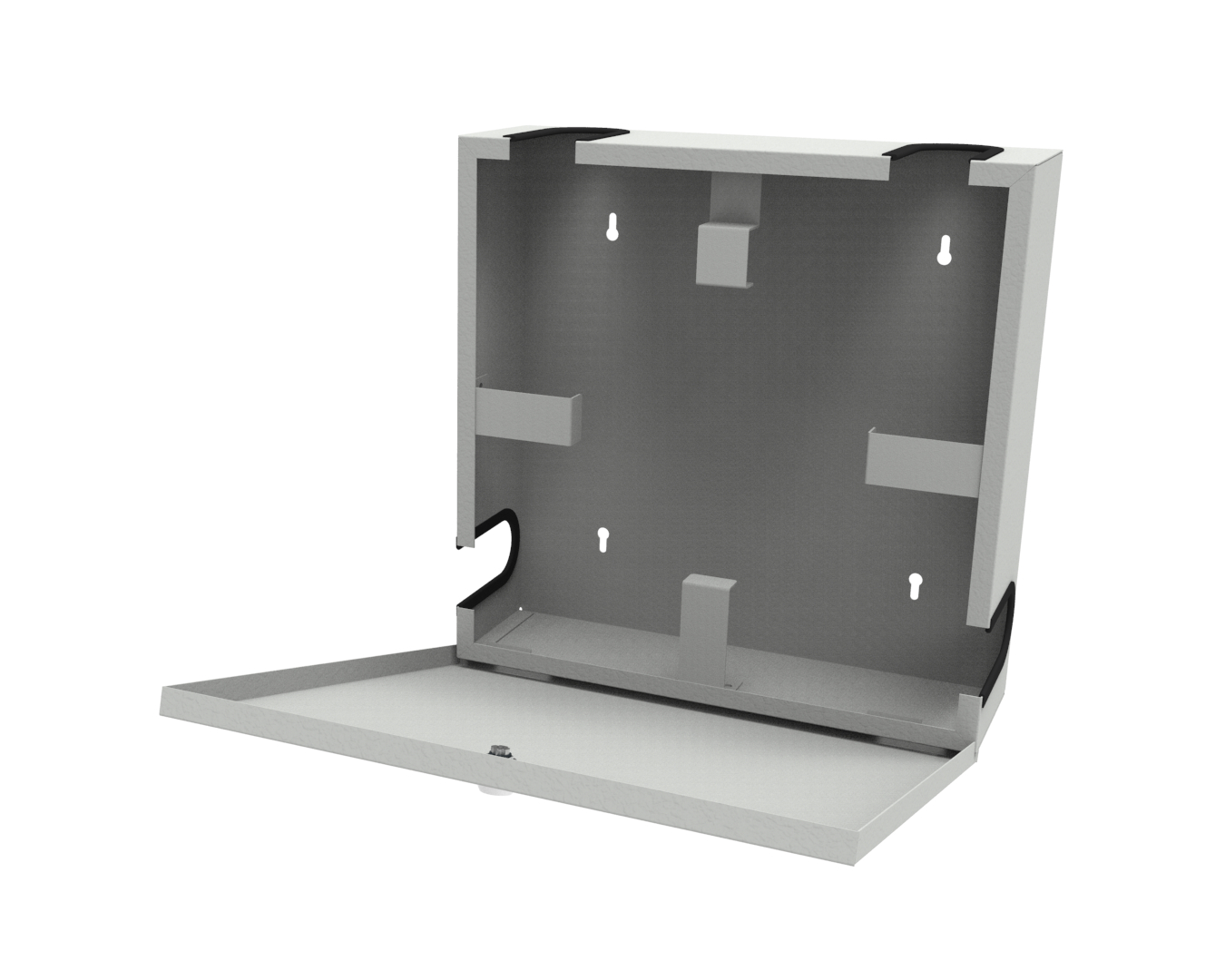

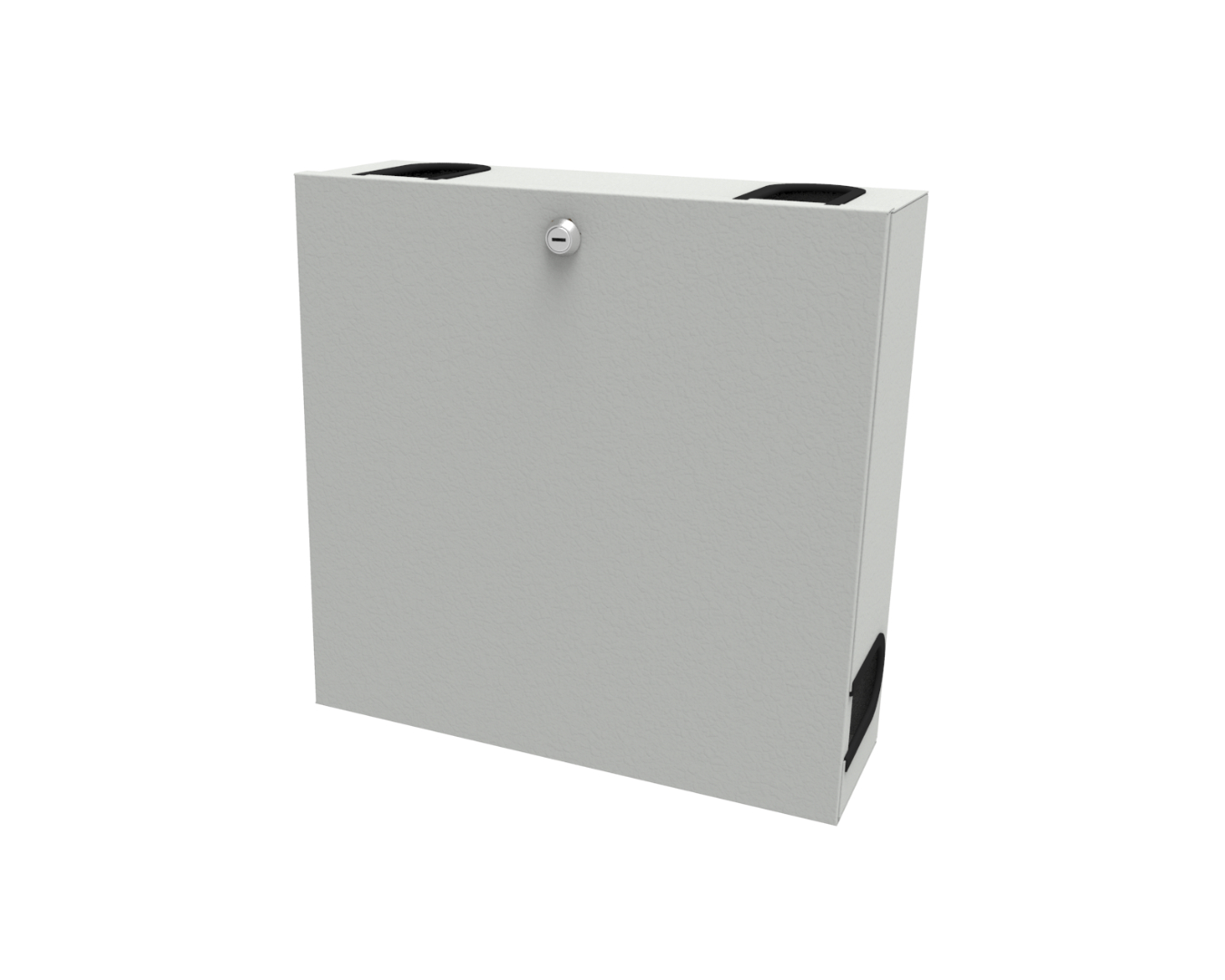

Cable storage box ZK-750/750/240, 750x750x240mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation
  • designed for use in a cable room or near distribution points,

  • the cable storage box protects the cables from external mechanical damage while provide a safe bending radius,

  • integrated handles inside the box facilitate proper arrangement of the cable reserve,

  • possibility of mounting on the wall or in the telecommunication manholes,

  • the box has a hinged cover locked with a key, key code depending on preferences can be repeatable or different,

  • provides additional protection against unauthorized access,

  • Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

application
telecommunication, power industry
dimensions (width x height x depth)
750mm x 750mm x 240mm
cable storage capacity
⌀ 13 mm – 200 m
cable entry type
breakable cable slot / hole cap
cable entry diameter
⌀ 38 mm
number of cable entries
8
mounting type
indoor/outdoor, wall-mounted
operation temperature range
-40°C to +70°C
impact protection degree IK
IK 10
flammability class
V0 acc. UL 94
weight
~28.0 kg
material
powder painted Magnelis® sheet
color
structural, light grey RAL7035
standards and certificates
ISO 9001:2015, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
