Fiber optic tube dividers

LRT-19"-1U-G-R7035

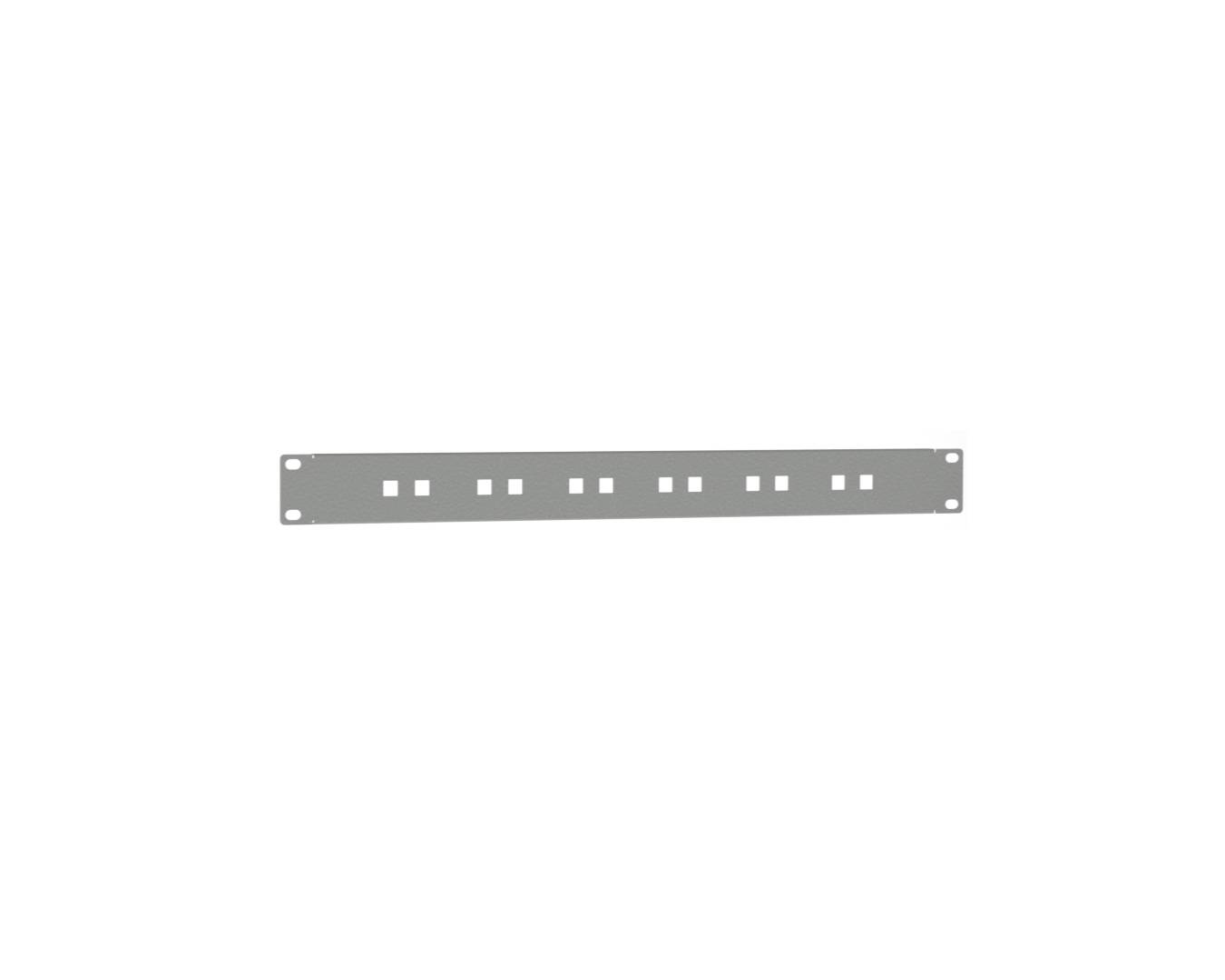

Fiber optic tube divider rail LRT-19"-1U, 1U, capacity 6x RT-12 / 3x RT-24, 483x44x8mm (WxHxD), Magnelis®, smooth, RAL7035

Request for quotation

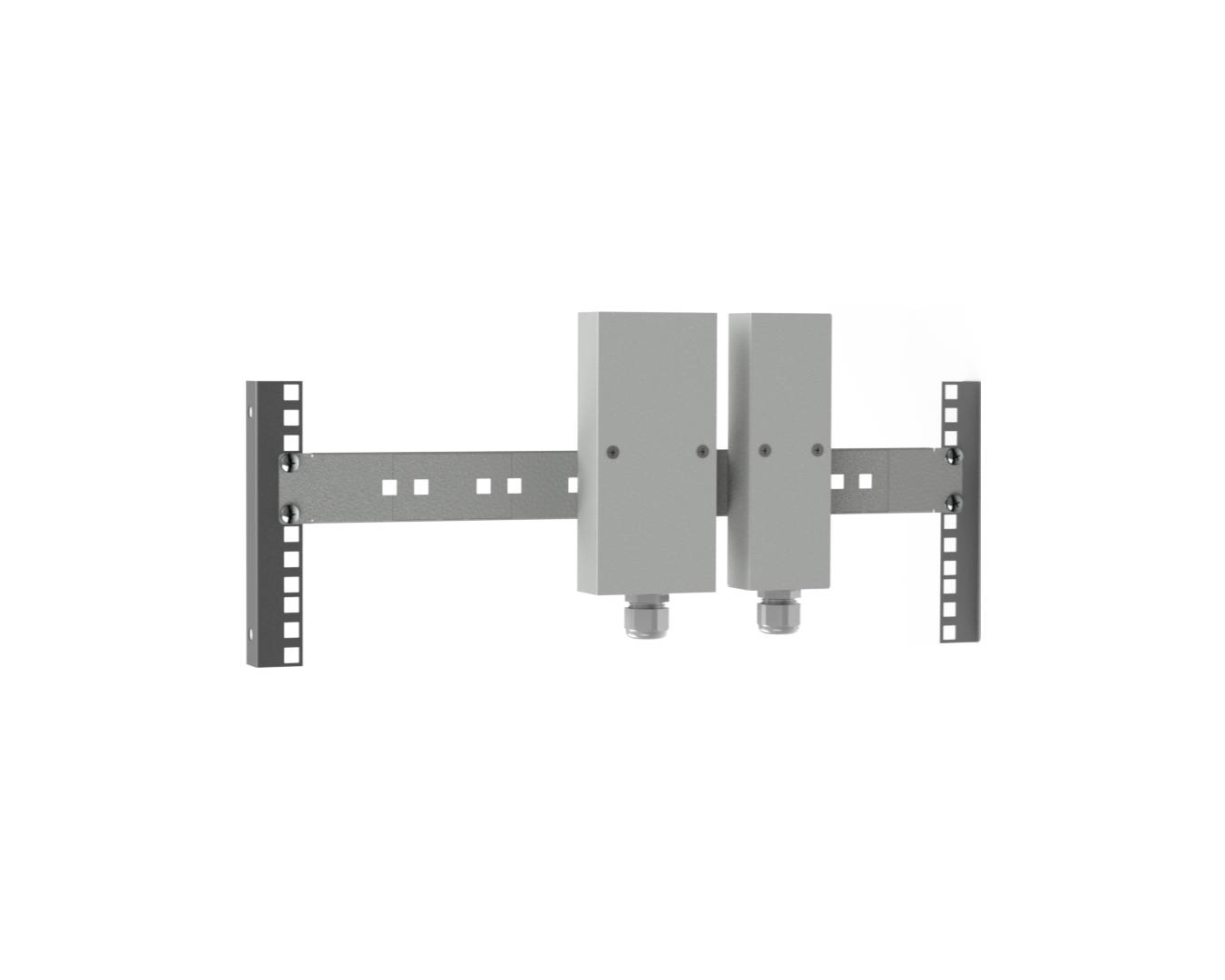

rail dedicated to mounting RT fiber optic tube dividers,
the holes on the rail allow for the installation of up to 6 RT-12 dividers or up to 3 RT-24 dividers,
possibility to mount on rear rack rails helps reduce the space occupied in the cabinet,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

application: telecommunication
product family: RT
dimensions (width x height x depth): 483mm x 44mm x 8mm
rack unit height: 1U
rack standard: 19"
number of dividers mounted on the rail: 6x RT-12 or 3x RT-24
mounting type: indoor, inside a rack cabinet
operation temperature range: -40°C to +70°C
impact protection degree IK: IK 10
flammability class: V0 acc. UL 94
weight: ~0.2 kg
material: powder painted Magnelis® sheet
color: smooth, light grey RAL7035
standards and certificates: ISO 9001:2015, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
