Fiber optic tube dividers

RT-24-80/180/35-G-R7035

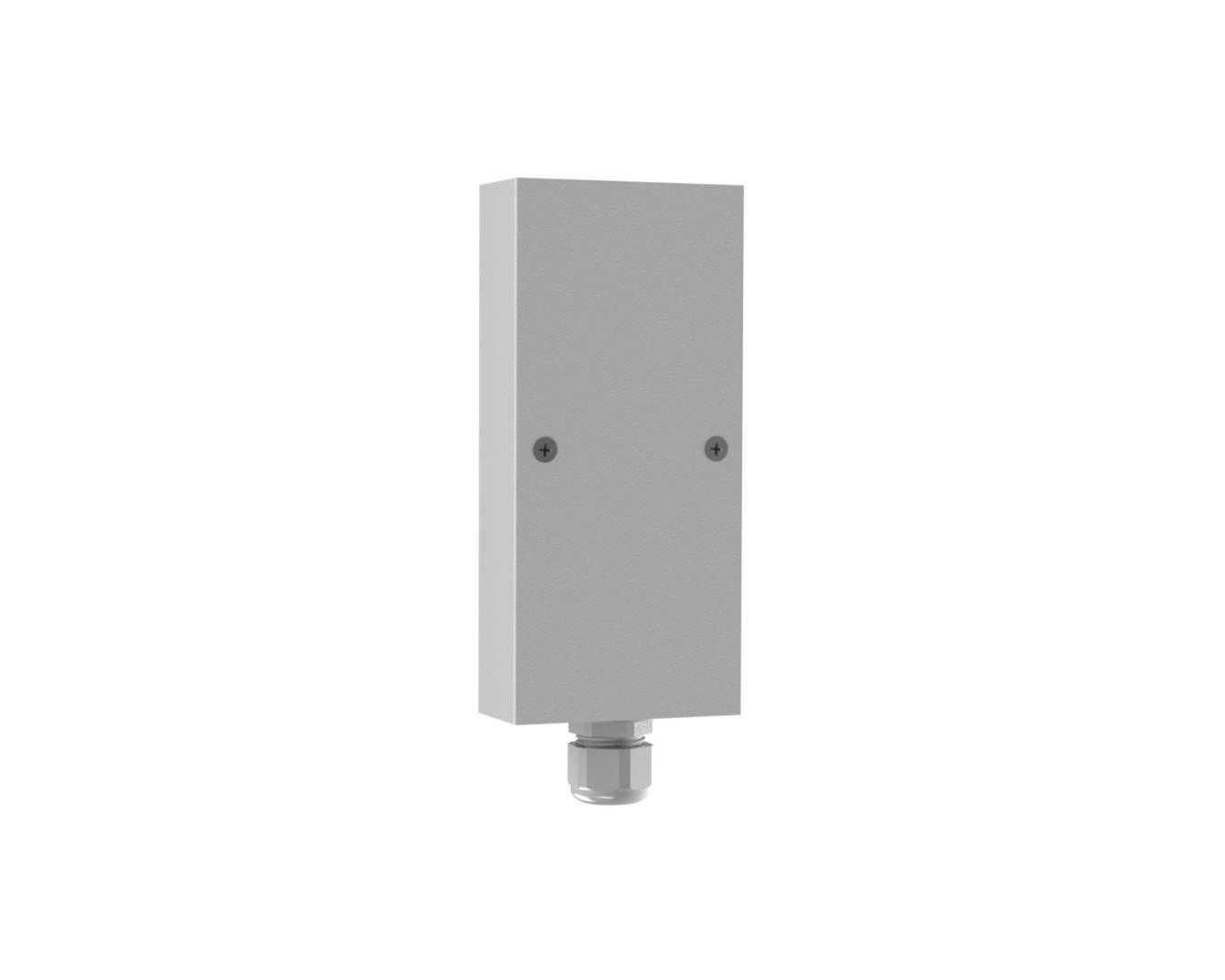

Fiber optic tube divider RT-24 for up to 24 line cable tubes, PG19, 100x180x35mm (WxHxD), Magnelis®, smooth, RAL7035

Request for quotation

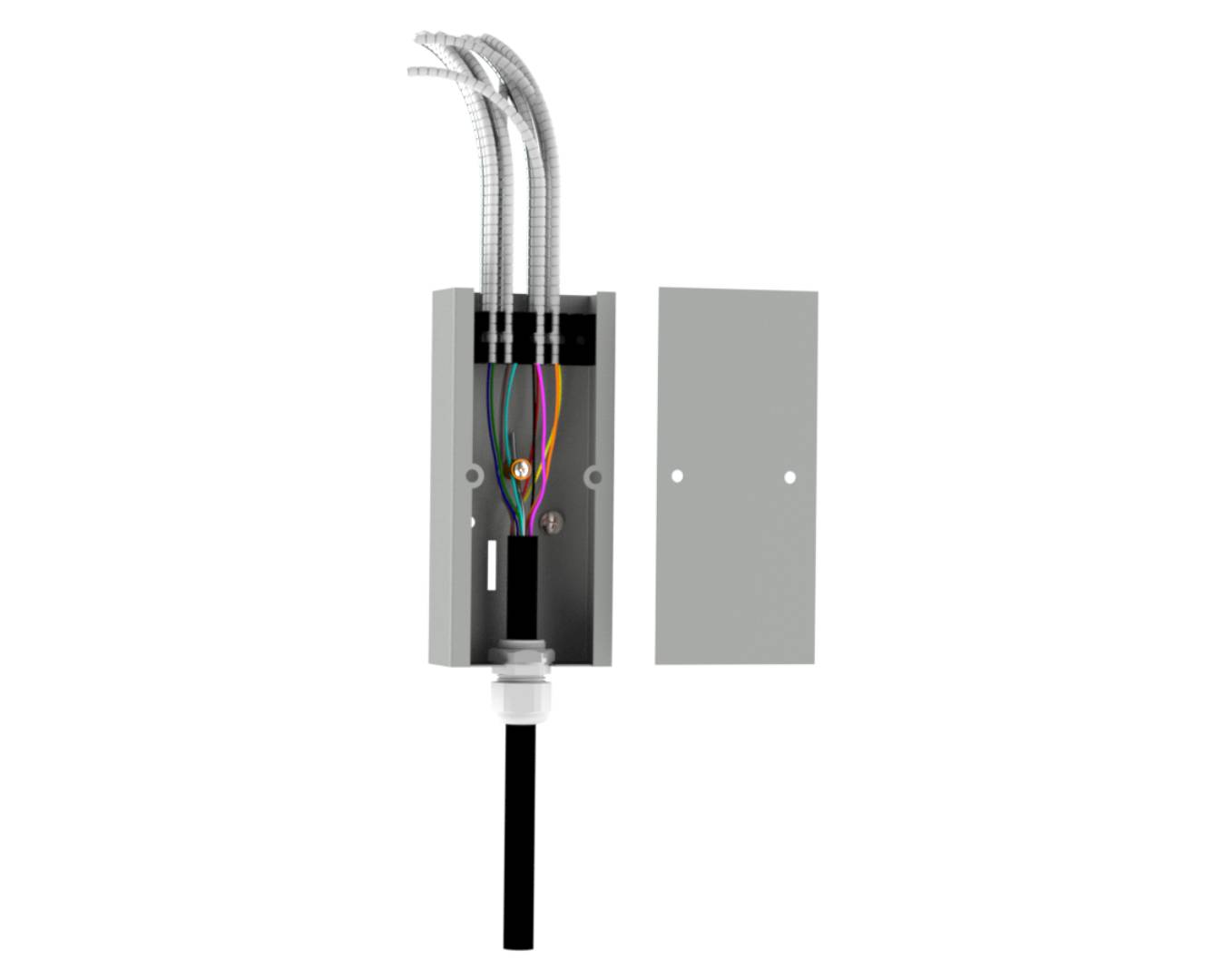

fiber optic divider allows for branching, lead-out and protection of the loose tube cable inside the rack cabinet,
dedicated holder enables tool-free organization, separation and protection of cable tubes,
capacity up to 24 Miniflex® protection tubes (⌀ 5 mm),
PG19 gland allows the installation of a line cable (⌀ 12 -15 mm),
divider adapted for cable entry from the bottom of the housing,

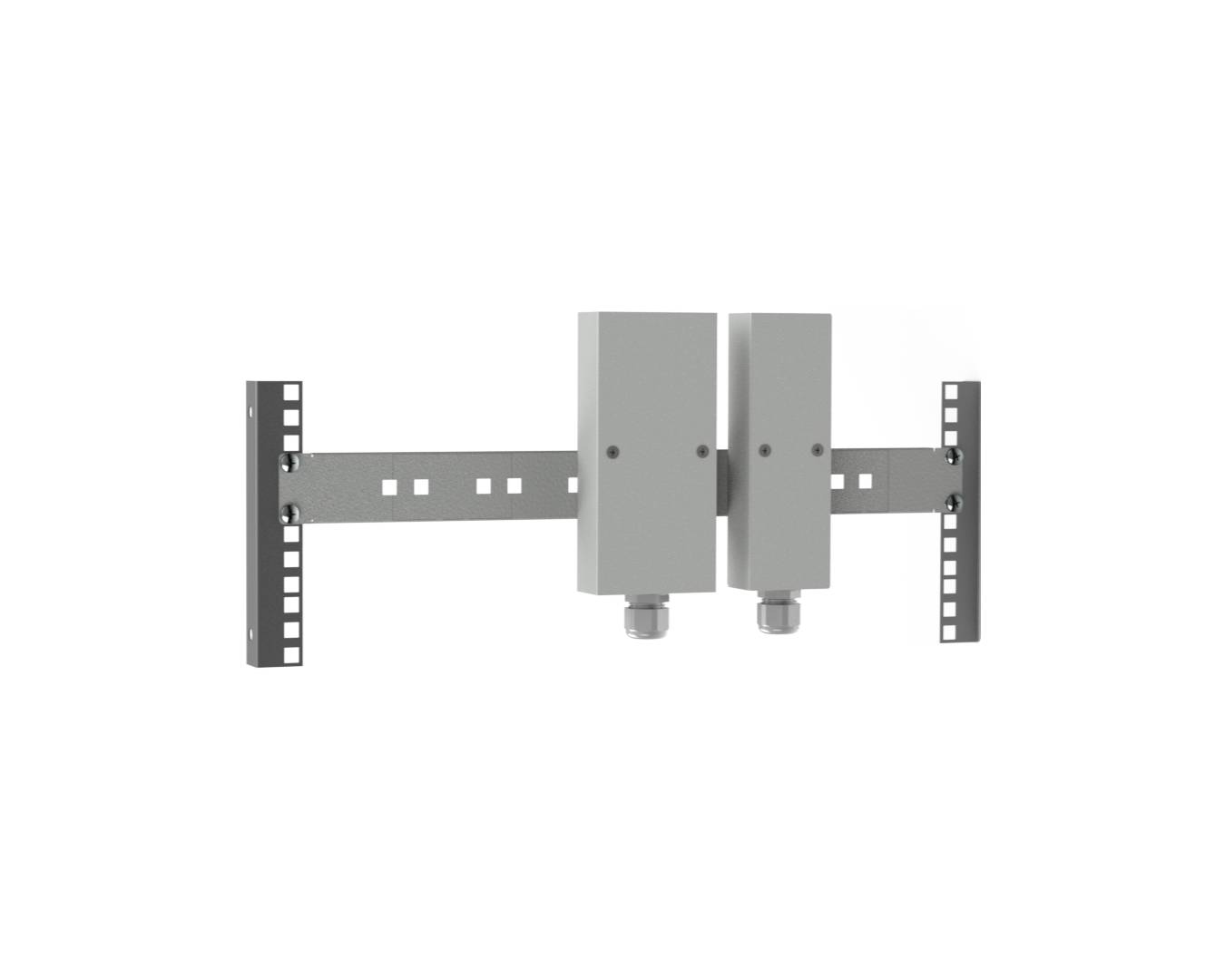

designed to be mounted on the LRT rail or TH35 mounting rail,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

application: telecommunication
product family: RT
dimensions (width x height x depth): 80mm x 180mm x 35mm
tube holder capacity: 24
max. protective tube diameter: ⌀ 5 mm
cable entry type: PG19 cable gland
cable entry diameter: ⌀ 25 mm
number of cable entries: 1
central strength member holder (FRP rod): YES
compatibility: DIN 35 mm mounting rail (EN 60715), LRT-19"-1U tube divider rail
operation temperature range: -40°C to +70°C
ingress protection degree IP: IP 41
impact protection degree IK: IK 10
flammability class: V0 acc. UL 94
weight: ~0.4 kg
material: powder painted Magnelis® sheet
color: smooth, light grey RAL7035
standards and certificates: ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
