P-SZW-1200/865/610-S-R7035

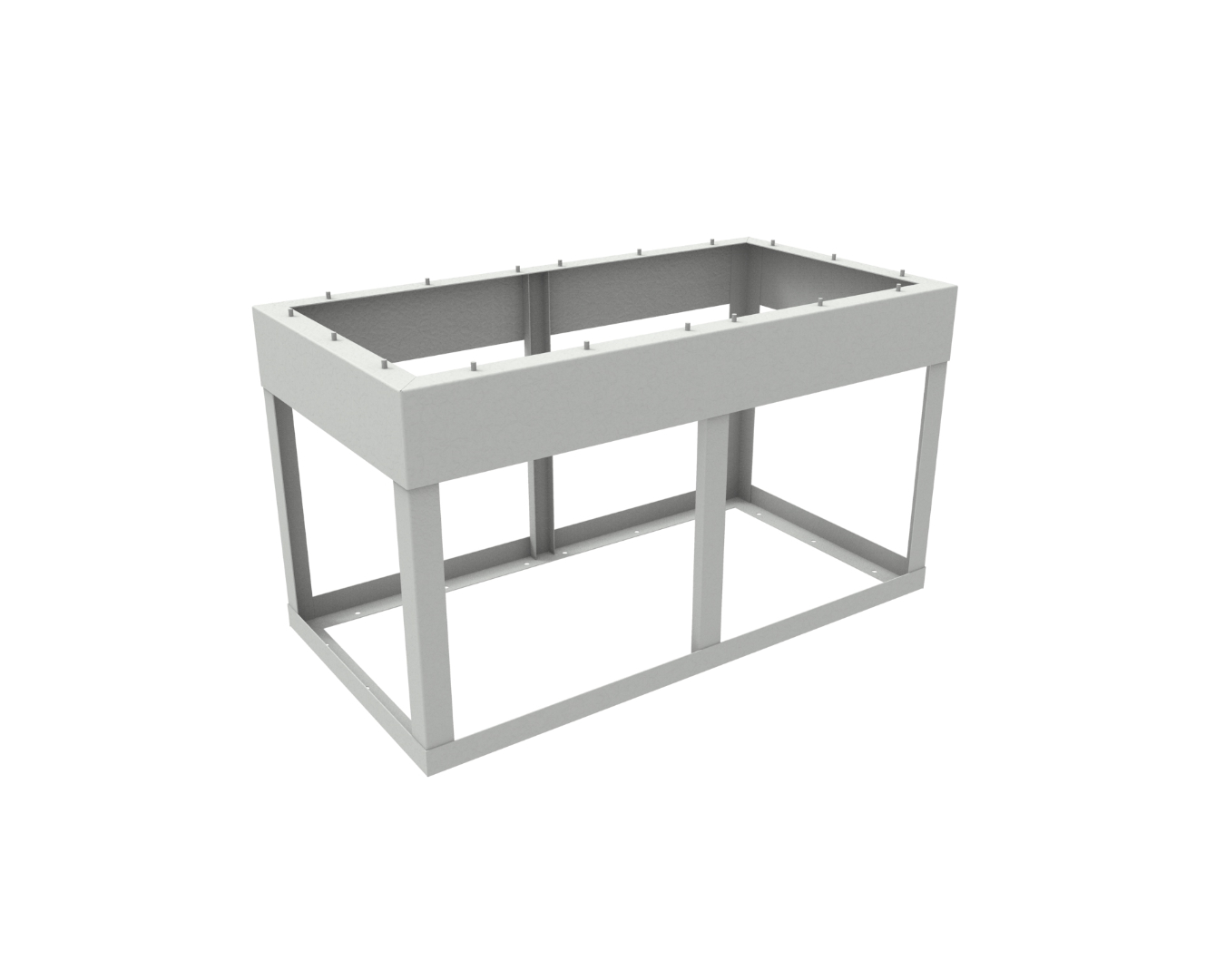

Ground-mounted plinth, 1200x865x610mm (WxHxD), Magnelis®, structural, RAL7035
Request for quotation
-67b22bd834bf8.jpg)
the ground-mounted plinth compatible with the SZW, SZWM, SZWD, and SZWDK series cabinets,
designed for embedding the cabinet in the ground as an alternative to concrete manhole (SK-1),
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.
Technical specification
- application
- telecommunication, power industry
- product family
- P-SZW-1200
- dimensions (width x height x depth)
- 1200mm x 865mm x 610mm
- thickness
- 2 mm
- operation temperature range
- -40°C to +70°C
- mounting type
- outdoor, for embedding in the ground
- impact protection degree IK
- IK 10
- flammability class
- V0 acc. UL 94
- weight
- ~32.0 kg
- material
- powder painted Magnelis® sheet
- color
- structural, light grey RAL7035
- standards and certificates
- ISO 9001:2015, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
Datasheet
