SZW-1160/1450/630-P-19"-50U-S-R7035

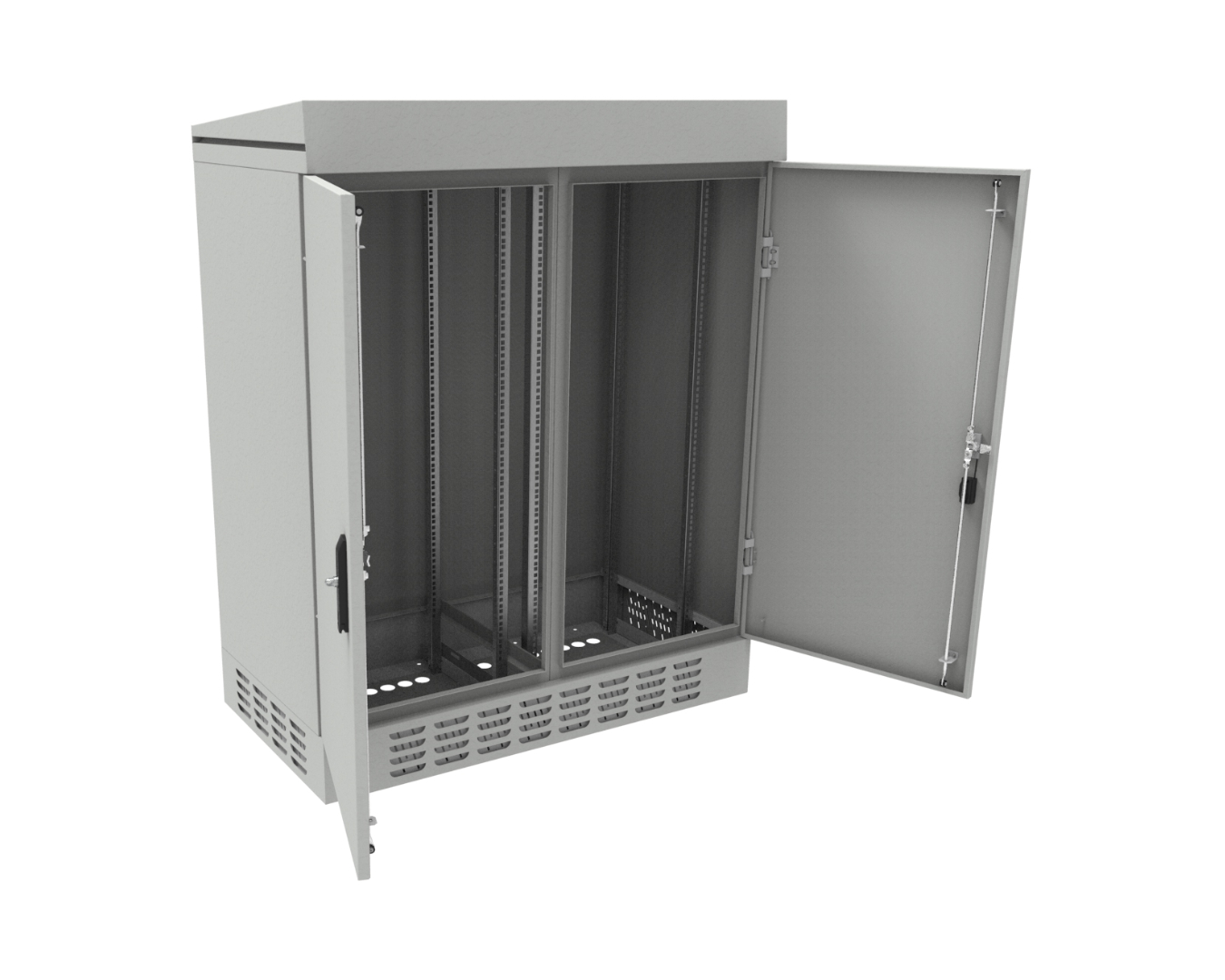

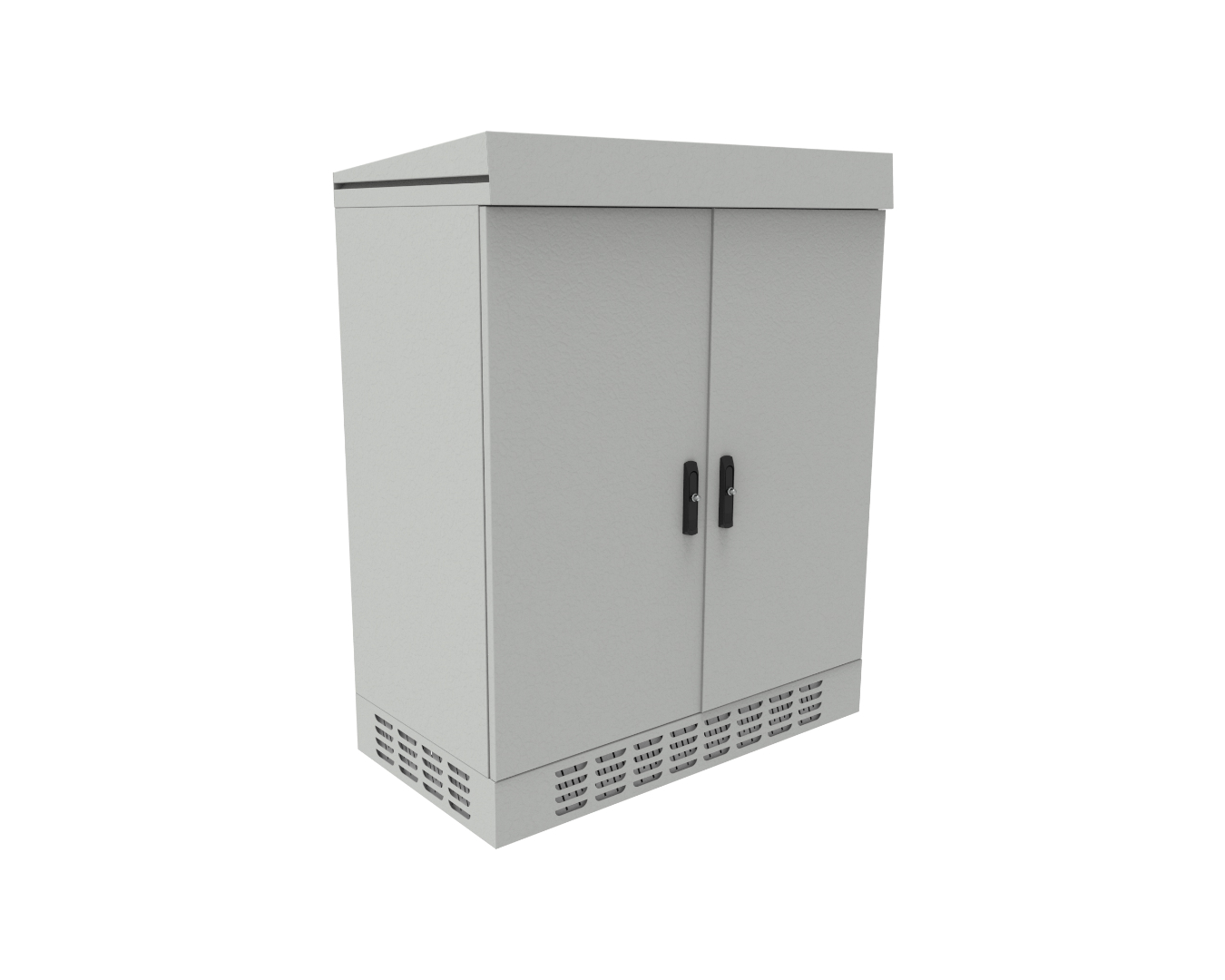

Free-standing 19" rack cabinet, SZW-1160/1450/630-P-19"-50U, outdoor, solid doors, double doors, 1160x1450x630mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation

rack cabinet designed for outdoor installation, used in optical access networks also with automation and control systems,
rack solution allows the installation of devices adapted to the 19-inch standard,
the construction ensures a high protection degree against adverse weather conditions and unauthorized access,
allows for optimal cable management and safe storage of network equipment,
design of the cabinet ensures proper heat dissipation which protects the devices from overheating,
cabinet protected with a single or double three-point locking door, closed with a patent lock installed in the hinged handle,
maximum opening angle of the front door up to 120°,
designed for installation on a telecommunication manholes or on a dedicated plinth to be buried into the ground,
cable entries located at the bottom of the housing,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

product family: P-SZW-1200, ZW, ZG
application: telecommunication, power industry
dimensions (width x height x depth): 1160mm x 1450mm x 630mm
rack unit height: 50U (2x 25U)
rack standard: 19"
rack mounting depth: 410 mm
number of rack rails: 2x front / 2x rear
cable entry type: breakable cable slot / hole cap
cable entry diameter: ⌀ 38 mm
number of cable entries: 14x bottom
construction: single-walled, single-chamber
door type: solid
number of doors: 2
removable side panels: NO
thermostat: equipment ordered separately
air conditioner: NO
active ventilation: space for a 4 ⌀ 125mm fans
passive ventilation: ventilation holes on the sides of the plinth
grounding details: doors, roof, plinth
mounting type: free-standing
operation temperature range: -40°C to +70°C
ingress protection degree IP: IP 54
impact protection degree IK: IK 10
flammability class: V0 acc. UL 94
weight: ~105.0 kg
material: powder painted Magnelis® sheet
color: structural, light grey RAL7035
standards and certificates: ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
