Additional cabinet accessories

ZW-TH35-230V-50W-4W

Ventilation kit with thermostat, TH35, 230V, 50W, 4 fans

Request for quotation

  • compatible with SZM, SZW, SZWD, and SZWM series,

  • designed for installation on dedicated cabinet ventilation holes,

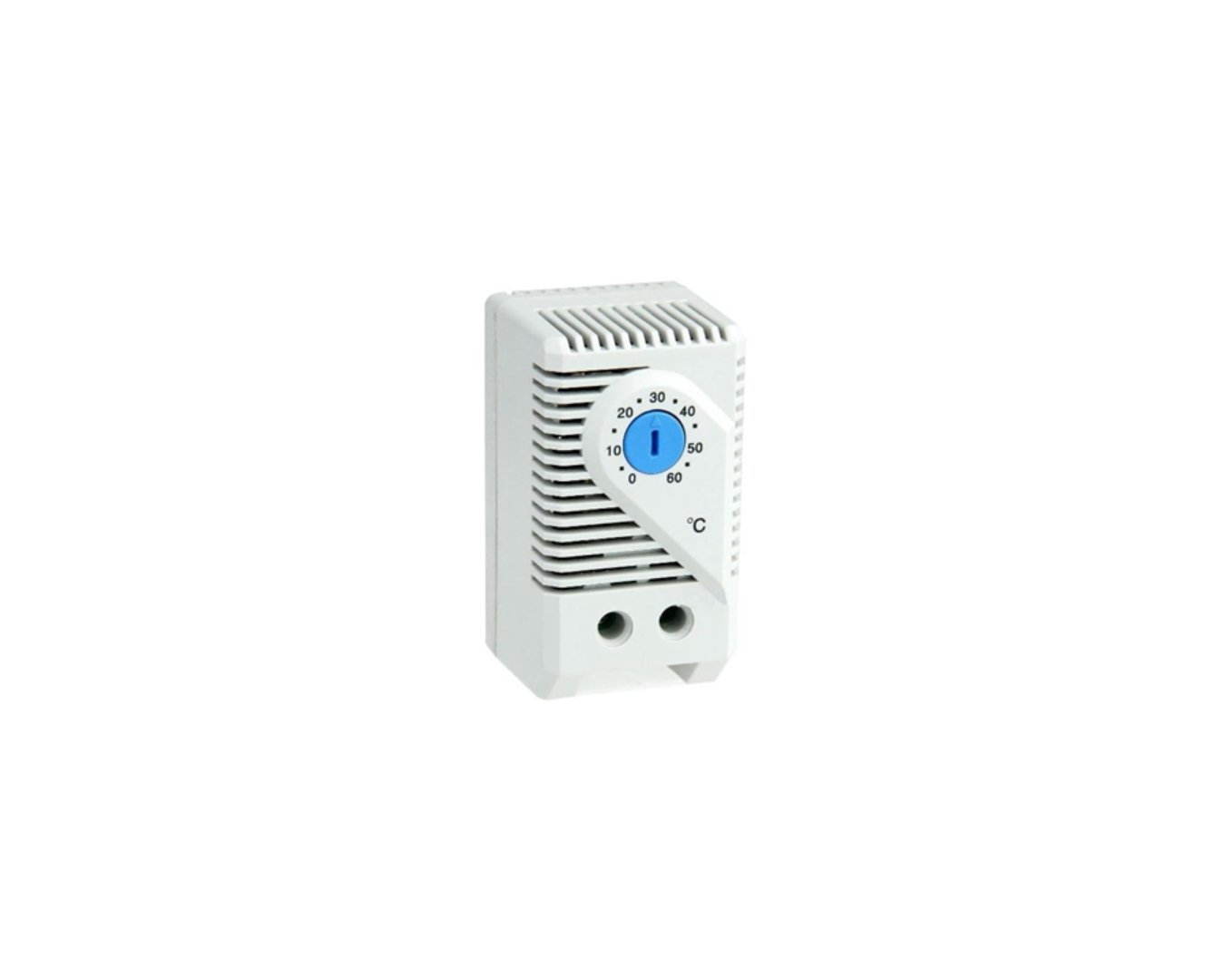

  • closing thermostat allows automatic activation of fans when the internal cabinet temperature exceeds the set value,

  • rail connectors ensure convenient installation,

  • perforated TH35 mounting rail,

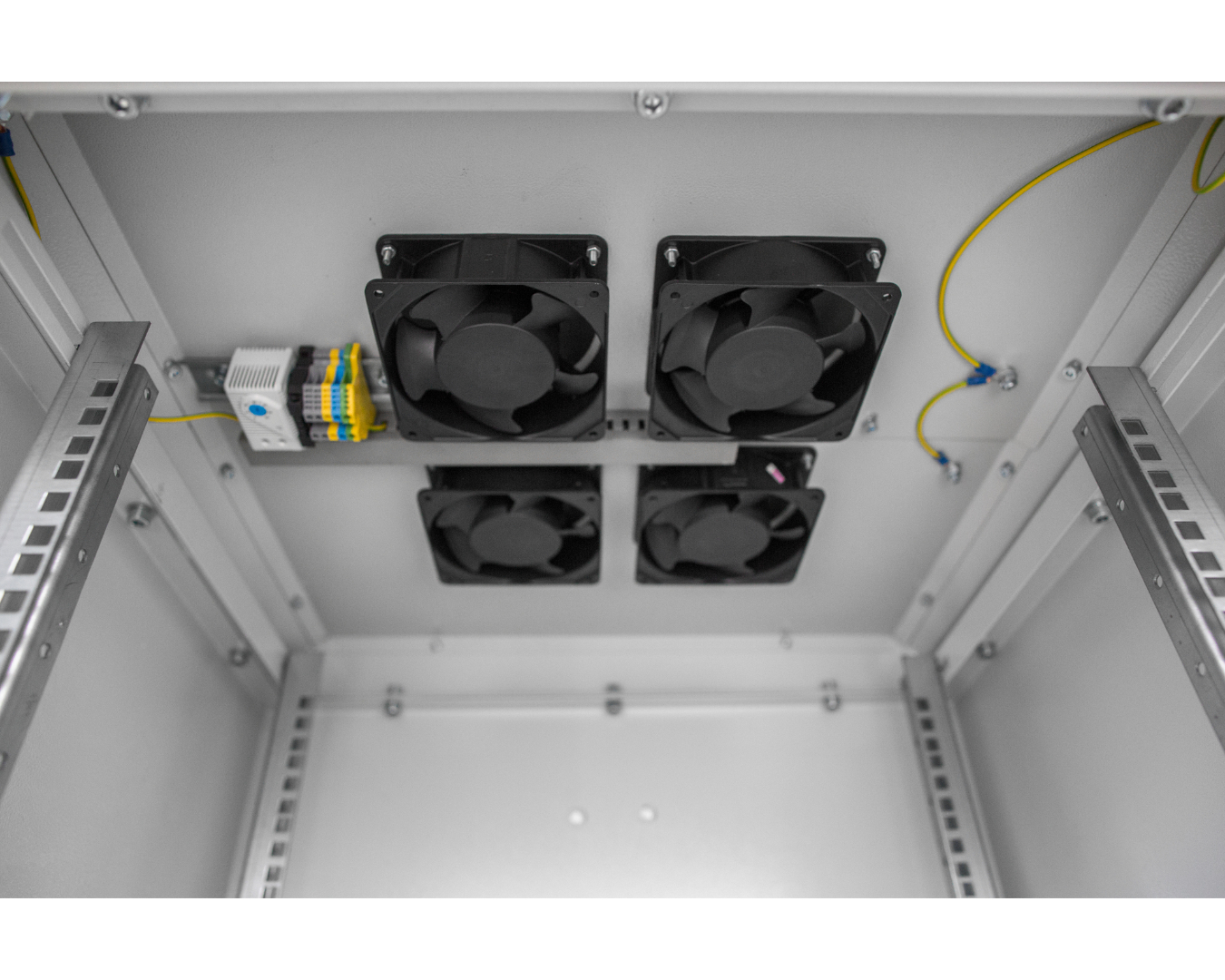

  • ventilation kit consisting of a 4 or 2 fans, powered by 230V,

  • recommended installation at the top of the cabinet.

Technical specification

application
telecommunication, power industry
dimensions (width x height x depth)
33mm x 60mm x 43mm
sensor type
thermostatic bimetal
max. operating AC voltage
250V
max. inrush current
16A for 10 sec.
temperature setting range
0°C to +60°C
hysteresis
7 +/- 4
operation temperature range
-40°C to +70°C
mounting type
DIN 35 mm mounting rail (EN 60715)
ingress protection degree IP
IP 20
flammability class
V0 acc. UL 94
weight
~0.04 kg
material
plastic
color
light grey RAL7035
standards and certificates
ISO 9001:2015, PN-EN 60529, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
