Additional cabinet accessories

ZG-TH35-230V-50W

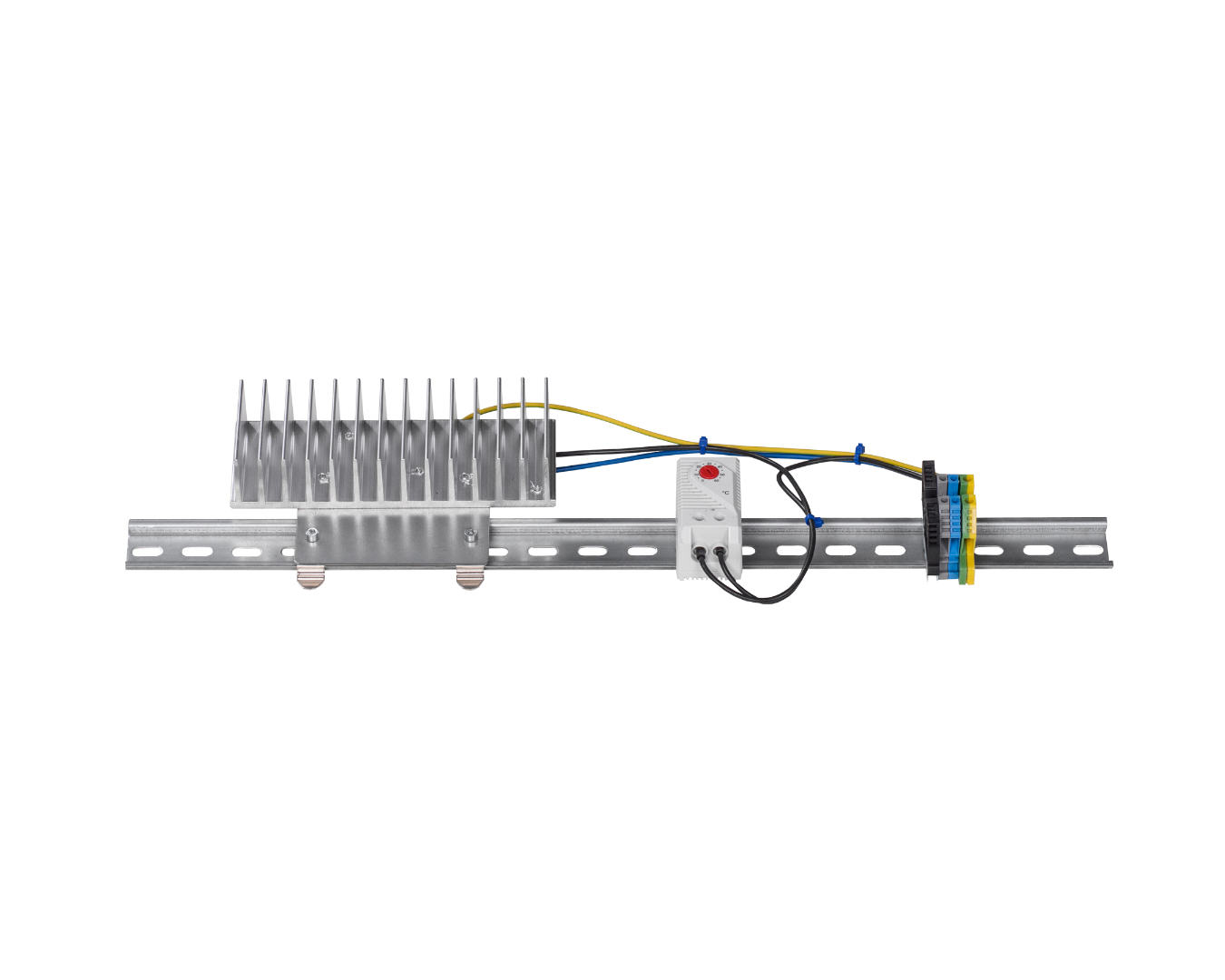

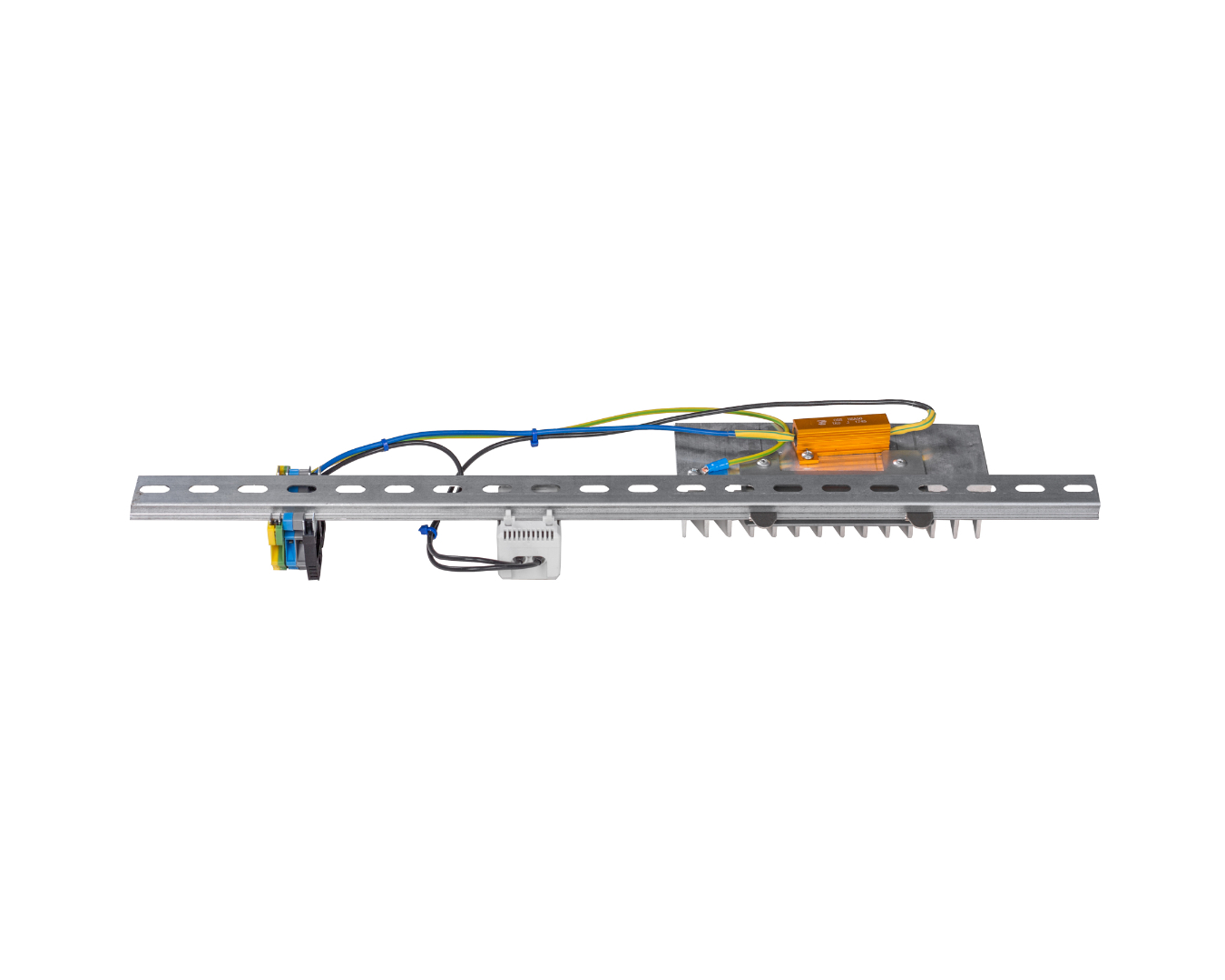

Heating kit with thermostat, TH35, 230V, 50W

Request for quotation

  • compatible with SZM, SZW, SZWD, and SZWM series,

  • designed for installation in 10" or 19" rack mounting rails,

  • opening thermostat allows automatic heater shutdown when the internal cabinet temperature exceeds the set value,

  • rail connectors ensure convenient installation,

  • perforated TH35 mounting rail,

  • heating kit consisting of a heater with a power rating of 50W or 200W, powered by 230V,

  • recommended installation at the bottom of the cabinet.

Technical specification

application
telecommunication, power industry
dimensions (width x height x depth)
33mm x 60mm x 43mm
sensor type
thermostatic bimetal
max. operating AC voltage
250V
max. inrush current
16A for 10 sec.
temperature setting range
0°C to +60°C
hysteresis
7 +/- 4
operation temperature range
-40°C to +70°C
mounting type
DIN 35 mm mounting rail (EN 60715)
ingress protection degree IP
IP 20
flammability class
V0 acc. UL 94
weight
~0.04 kg
material
plastic
color
light grey RAL7035
standards and certificates
ISO 9001:2015, PN-EN 60529, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
