PR-10"-150-1U-S-R7035

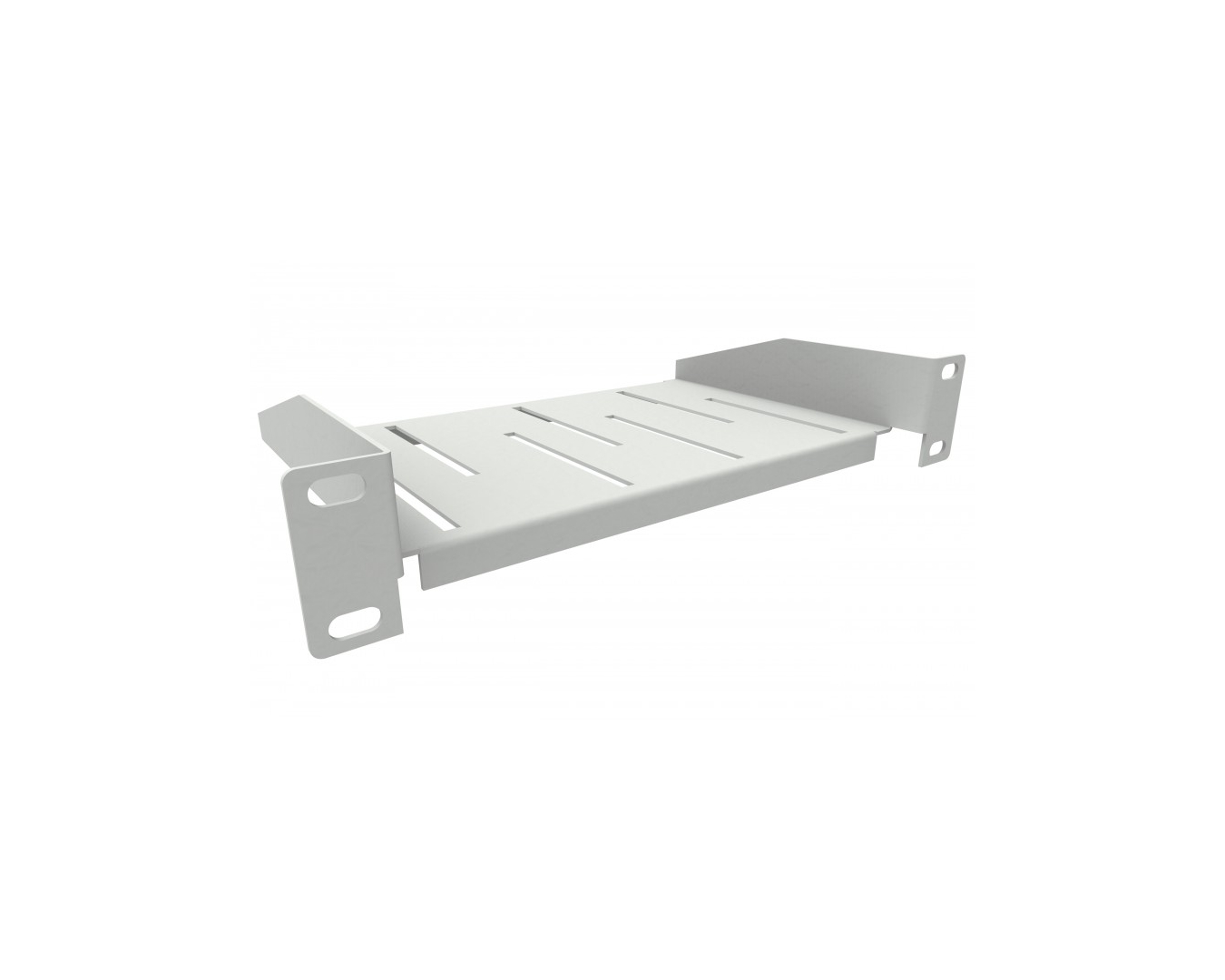

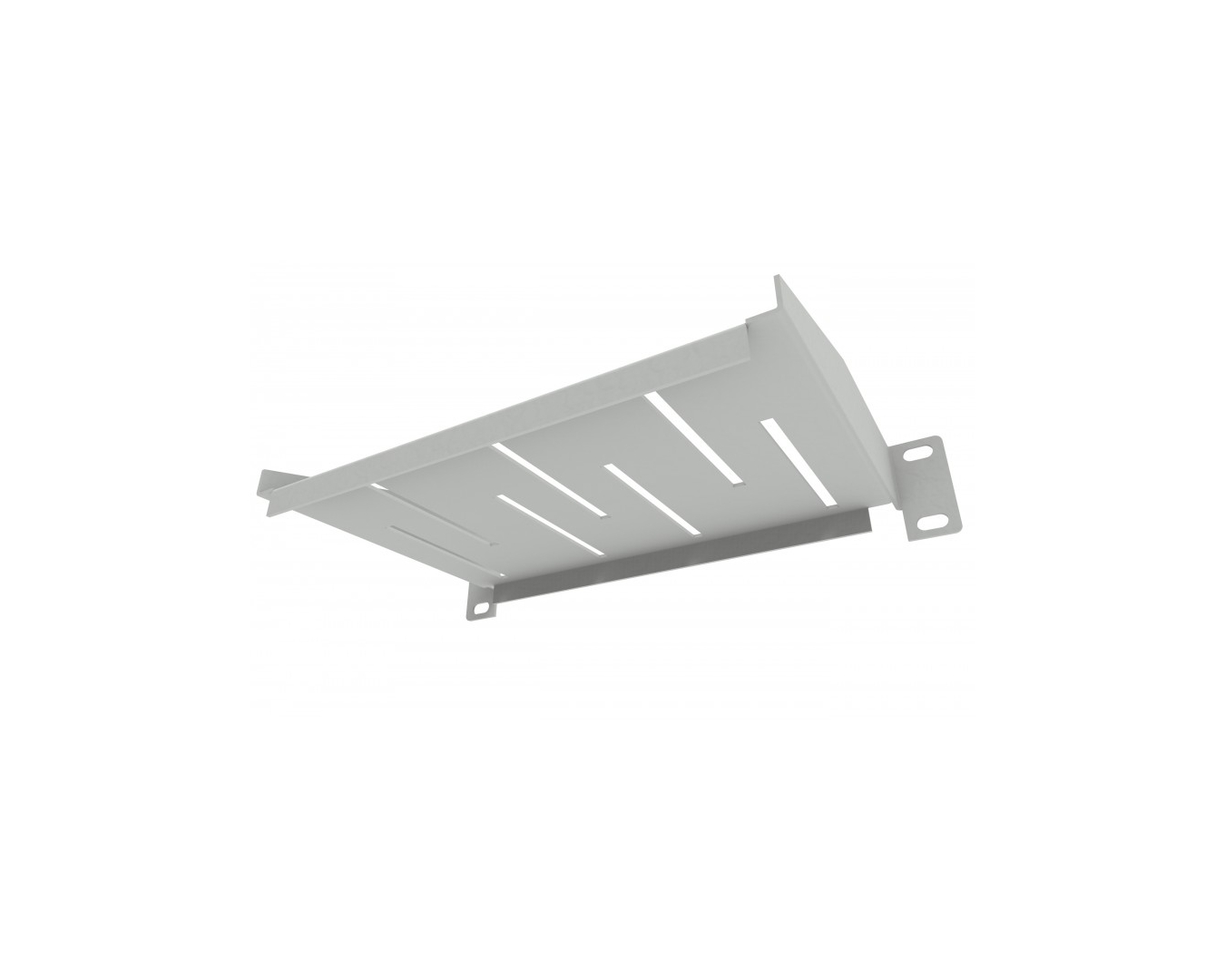

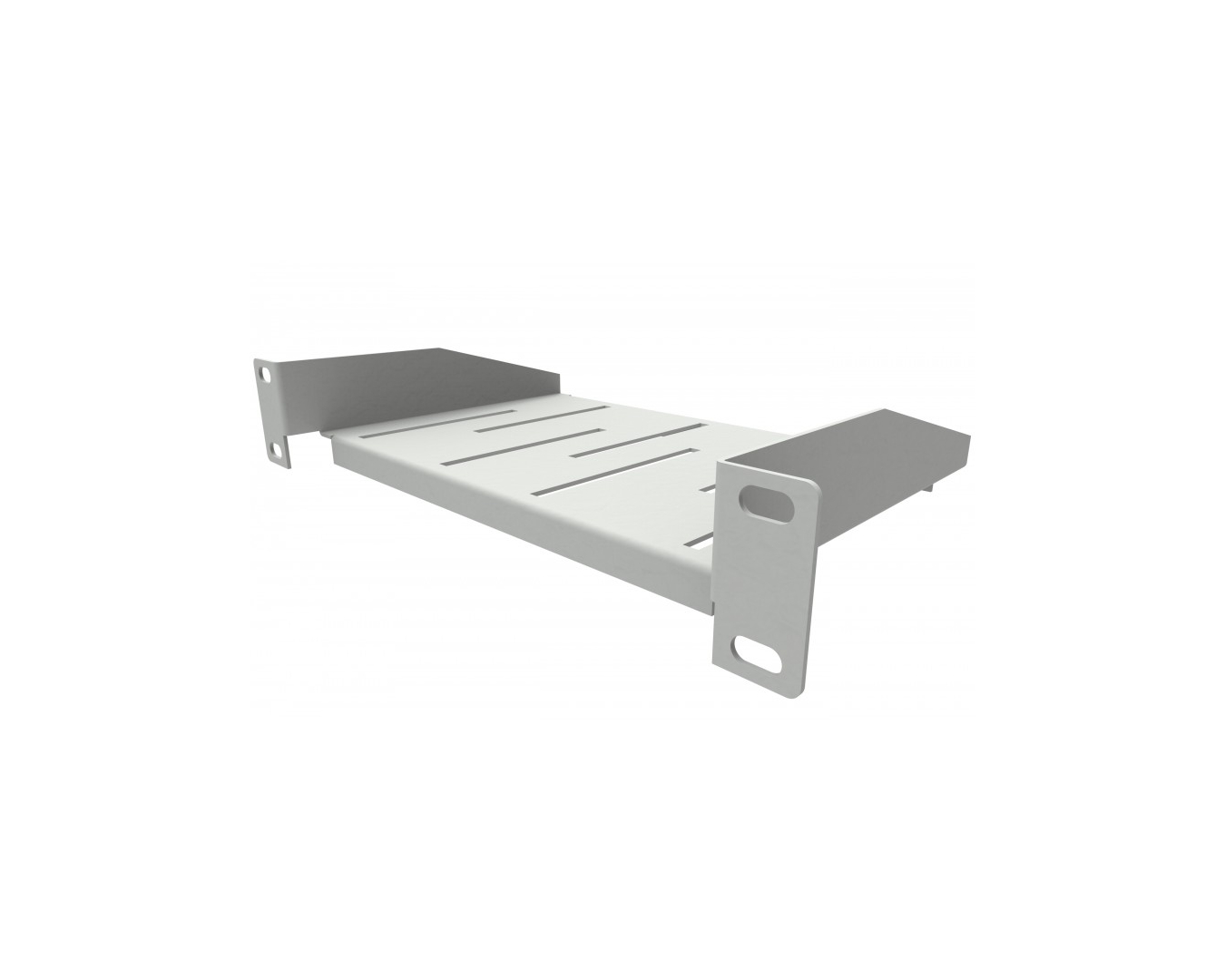

Rack shelf PR-10"-150-1U-S-R7035, 254x44x150mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation

designed for installation in 10" cabinets and racks,
the shelf has many perforations to ensure proper heat dissipation from the devices placed on it,
high-quality construction with 4-point mounting provides durability and structural stability,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

application: telecommunication
product family: PR
dimensions (width x height x depth): 254mm x 44mm x 150mm
rack unit height: 1U
rack standard: 10"
adjustment: NO
mounting type: front rack rails
operation temperature range: -40°C to +70°C
impact protection degree IK: IK 10
flammability class: V0 acc. UL 94
weight: ~2.2 kg
material: powder painted Magnelis® sheet
color: structural, light grey RAL7035
standards and certificates: ISO 9001:2015, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
