Rack shelfs - solid

PR-19"-350-1U-S-R7035

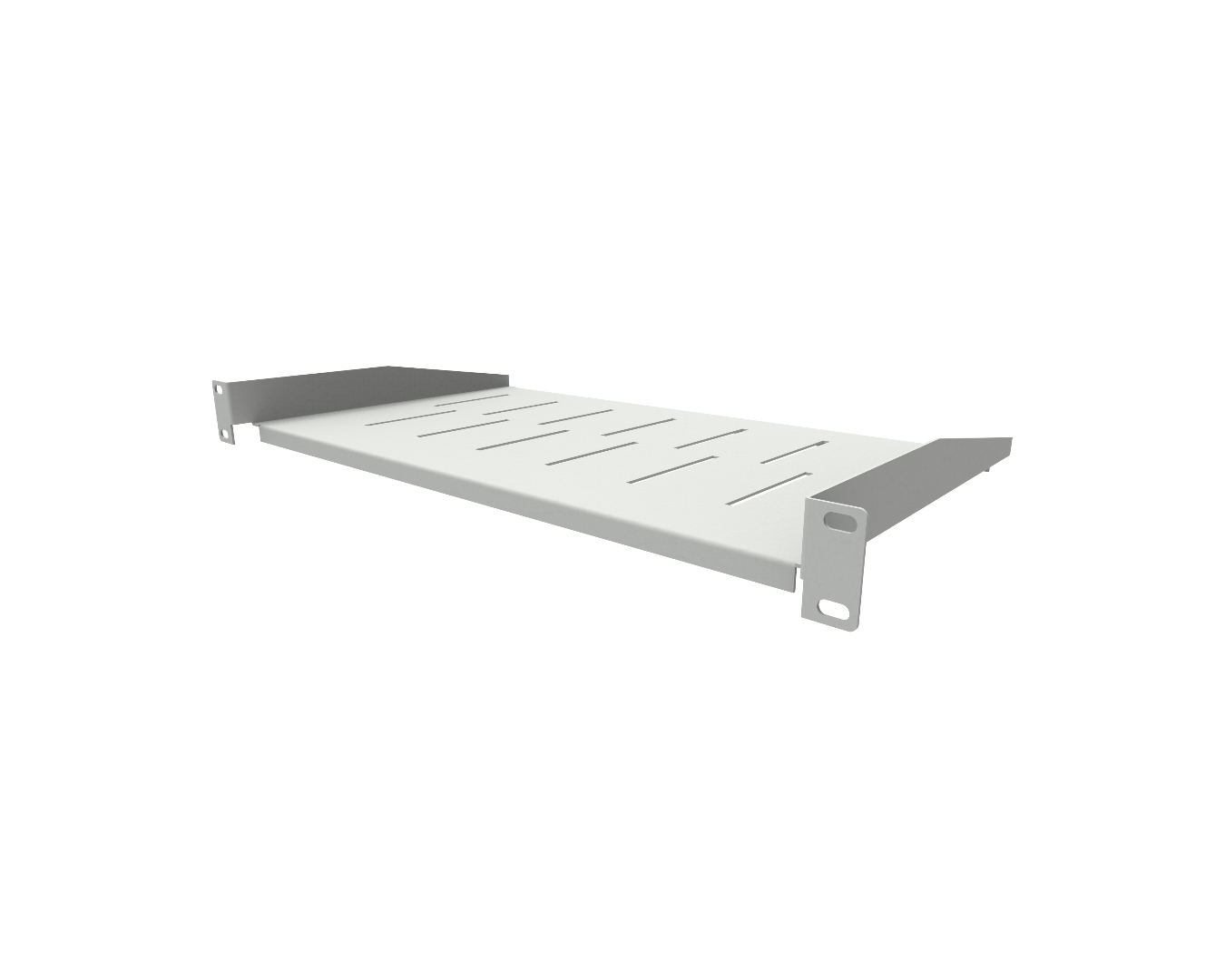

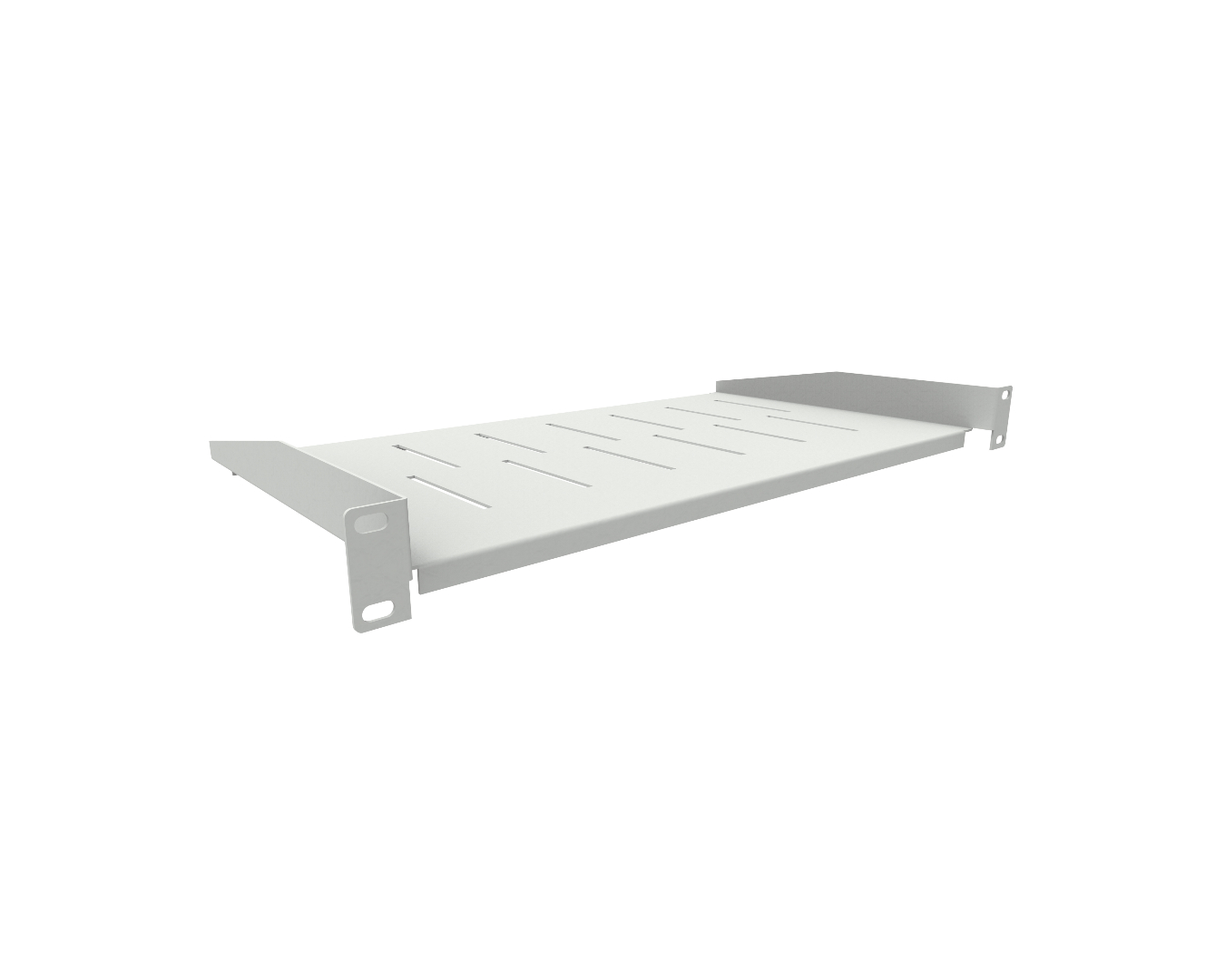

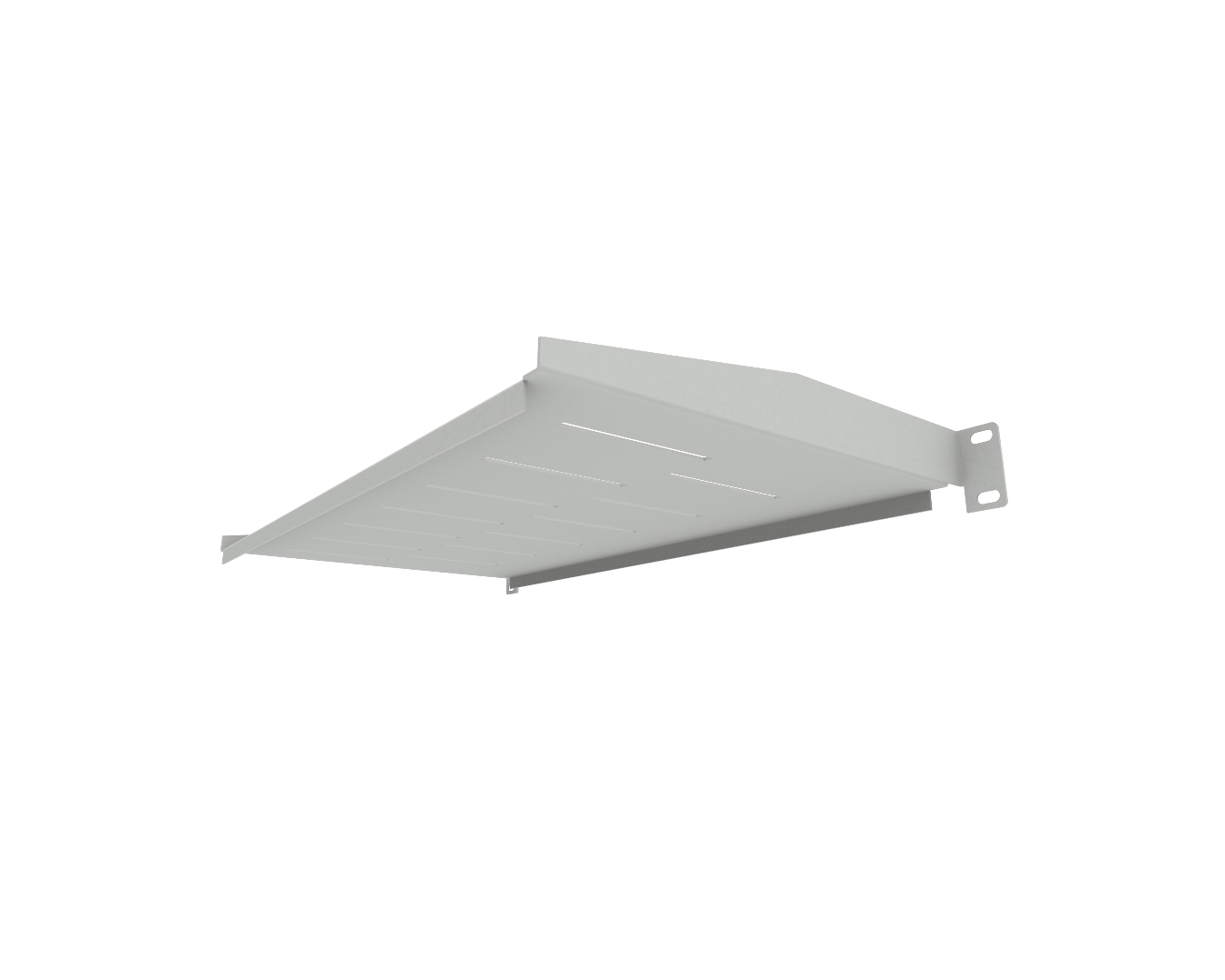

Rack shelf PR-19"-350-1U, 483x44x350mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation

designed for installation in 19" or 21" (with additional reducers) ODF cabinets and racks
the shelf has many perforations to ensure proper heat dissipation from the devices placed on it,
high-quality construction with 4-point mounting provides durability and structural stability,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

application: telecommunication
product family: PR
dimensions (width x height x depth): 483mm x 44mm x 350mm
rack unit height: 1U
rack standard: 19"
adjustment: NO
mounting type: front rack rails
operation temperature range: -40°C to +70°C
impact protection degree IK: IK 10
flammability class: V0 acc. UL 94
weight: ~2.0 kg
material: powder painted Magnelis® sheet
color: structural, light grey RAL7035
standards and certificates: ISO 9001:2015, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
