SA-400/400/150-ZNK-PM-S-R7035

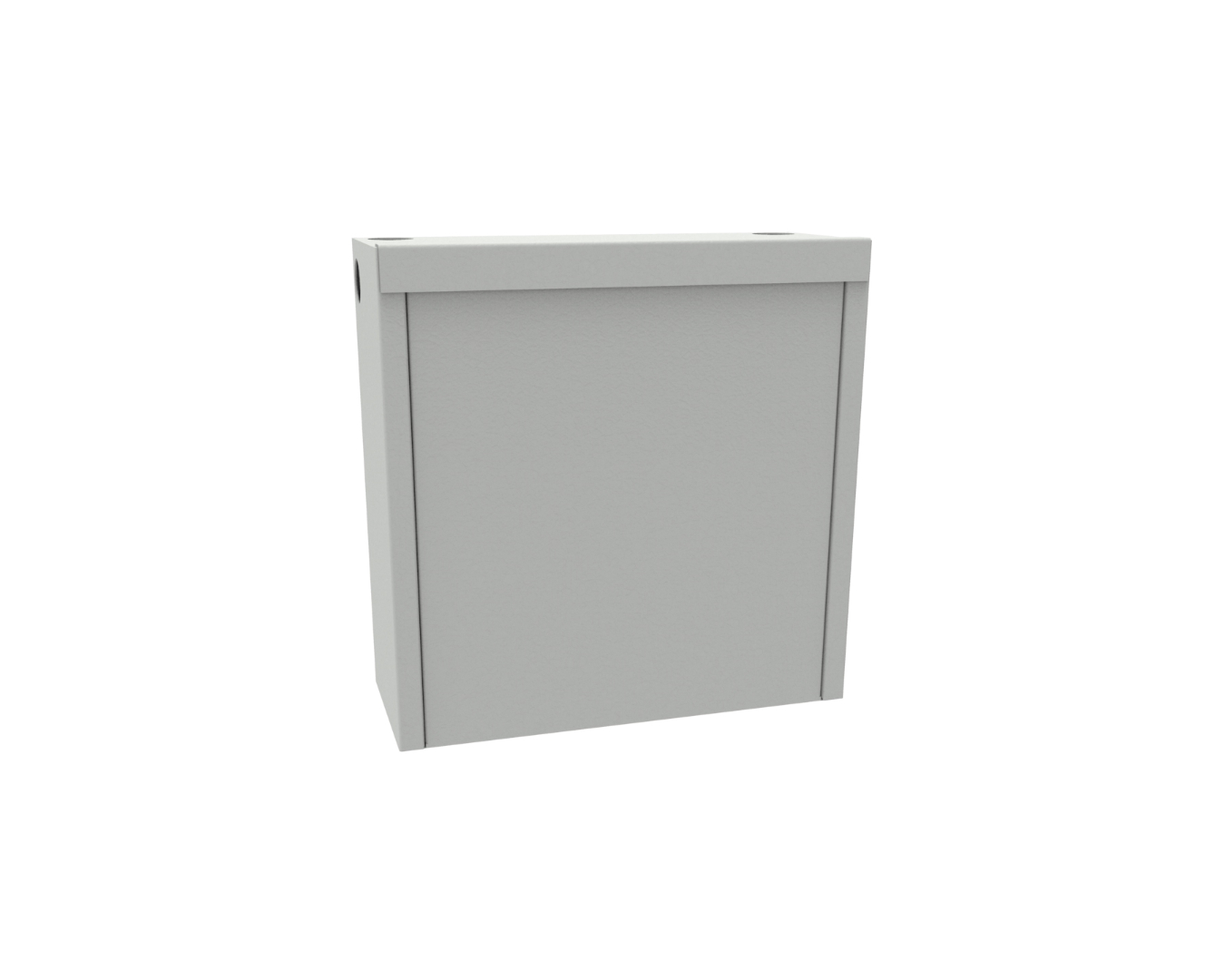

Anti-burglary cabinet with mounting plate SA-400/400/150-ZNK, indoor, wall-mounted, padlock, 400x400x150mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation

Anti-burglary cabinets - with a padlock: SA-400/400/150-ZNK-PM-S-R7035

designed for wall mounting in locations particularly vulnerable to vandalism or unauthorized access,
guarantees complete and effective protection of electrical installation components, controllers, and all types of control systems and equipment against external factors,
protects against mechanical damage and acts of vandalism,

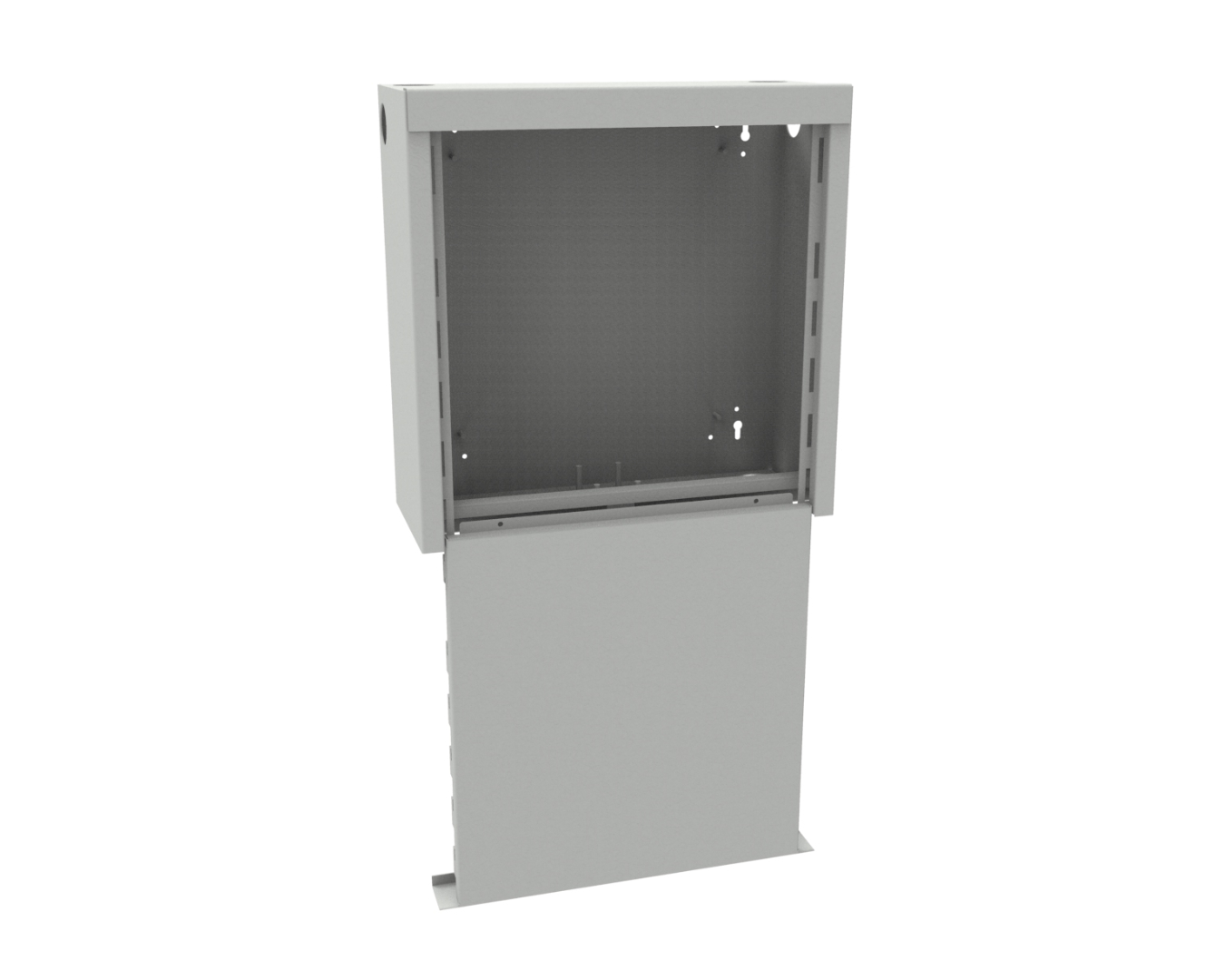

the anti-burglary cabinet is equipped with a sliding cover secured by two T-13/8 shackle padlocks with identical key codes,
offers additional protection by limiting access to unauthorized personnel,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

accessory family
product family: SA-ZNK
application: telecommunication, power industry
dimensions (width x height x depth): 400mm x 400mm x 150mm
cable entry type: breakable cable slot / hole cap
cable entry diameter: ⌀ 38 mm
number of cable entries: 6 (2x top / 2x bottom / 1x side / 1x side)
construction: single-walled, single-chamber
door type: solid
number of doors: 1
protection: shackle padlocks model T-13/8
mounting type: indoor, wall-mounted
operation temperature range: -40°C to +70°C
ingress protection degree IP: IP 41
impact protection degree IK: IK 10
flammability class: V0 acc. UL 94
weight: ~10.0 kg
material: powder painted Magnelis® sheet
color: structural, light grey RAL7035
standards and certificates: ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE

Download

Datasheet
EU Declaration of Conformity
RoHS & REACH Declaration
