SA-500/500/300-ZNK-19"-W-5U-S-R7035

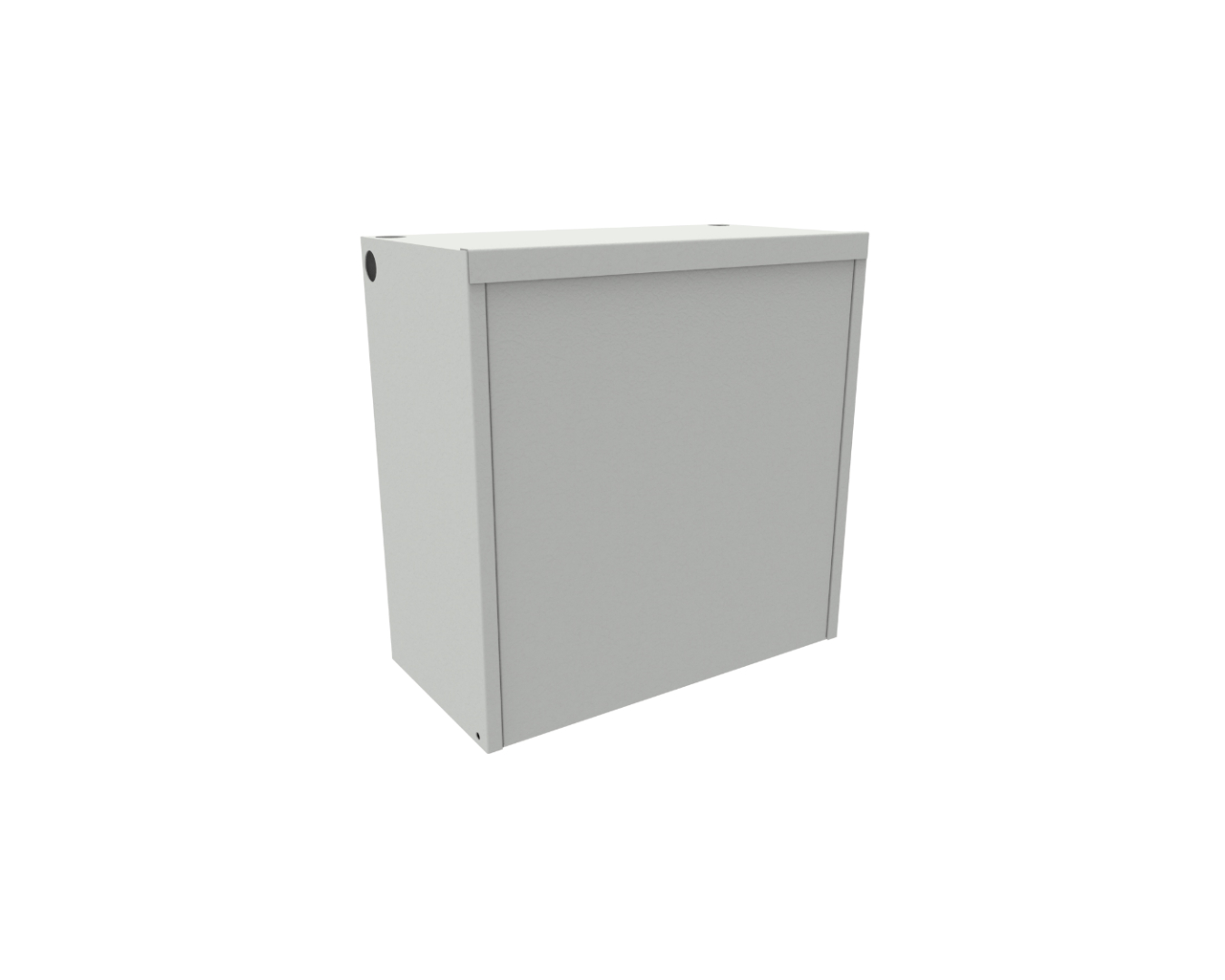

Anti-burglary 19" rack cabinet SA-500/500/300-ZNK, indoor, wall-mounted, padlock, telescopic rack rails, 500x500x300mm (WxHxD), Magnelis®, structural, RAL7035
designed for wall mounting in locations particularly vulnerable to vandalism or unauthorized access,
rack solution allows the installation of devices adapted to the 19-inch standard,
guarantees complete and effective protection of electrical installation components, controllers, and all types of control systems and equipment against external factors,
protects against mechanical damage and acts of vandalism,

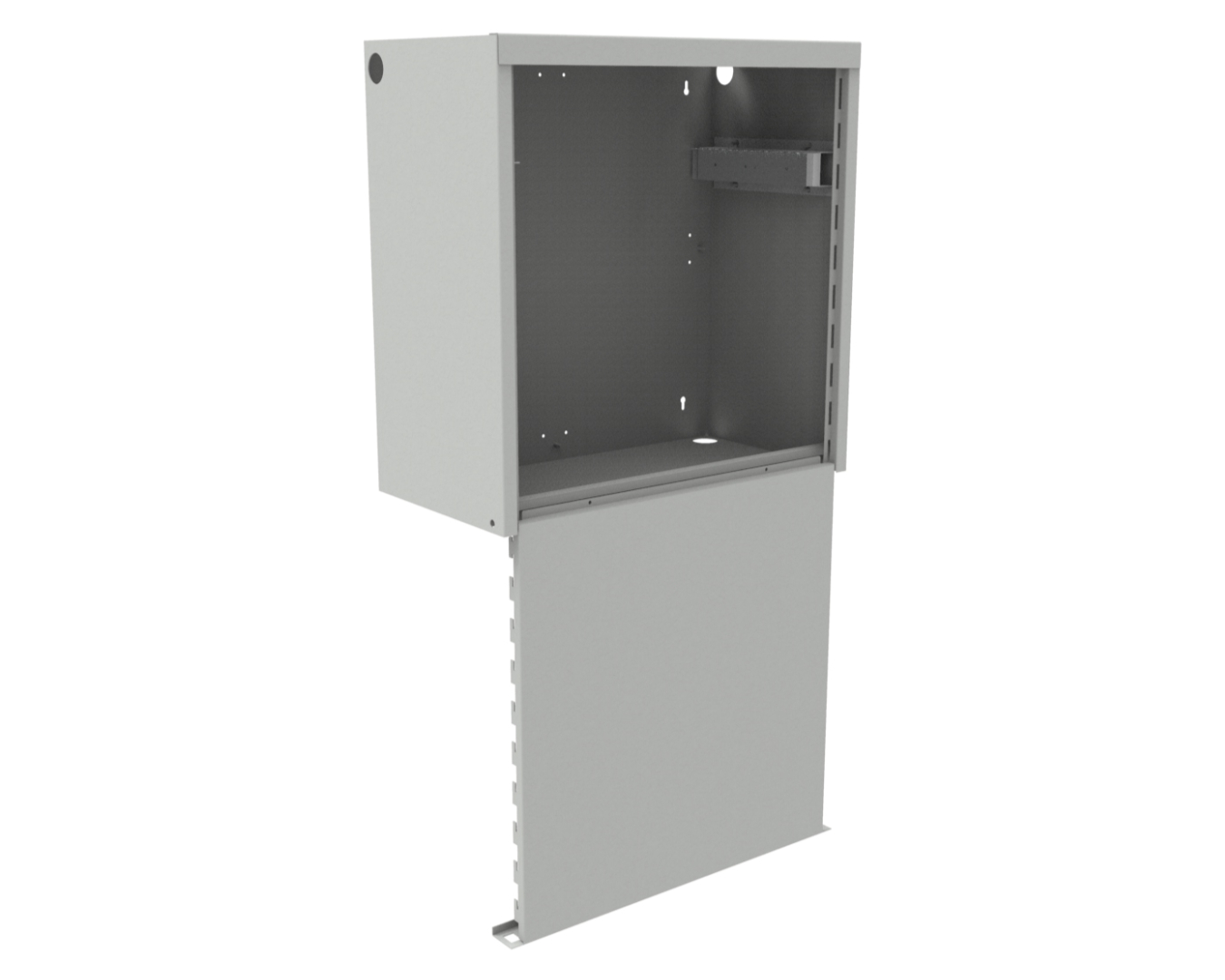

the anti-burglary cabinet is equipped with a sliding cover secured by two T-13/8 shackle padlocks with identical key codes,
offers additional protection by limiting access to unauthorized personnel,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.
Technical specification
- accessory family
- product family
- SA-ZNK
- application
- telecommunication, power industry
- dimensions (width x height x depth)
- 500mm x 500mm x 300mm
- rack unit height
- 5U
- rack standard
- 19"
- number of rack rails
- 2
- cable entry type
- breakable cable slot / hole cap
- cable entry diameter
- ⌀ 38 mm
- number of cable entries
- 6 (2x top / 2x bottom / 1x side / 1x side)
- construction
- single-walled, single-chamber
- door type
- solid
- number of doors
- 1
- protection
- shackle padlocks model T-13/8
- mounting type
- indoor, wall-mounted
- operation temperature range
- -40°C to +70°C
- ingress protection degree IP
- IP 41
- impact protection degree IK
- IK 10
- flammability class
- V0 acc. UL 94
- weight
- ~14.5 kg
- material
- powder painted Magnelis® sheet
- color
- structural, light grey RAL7035
- standards and certificates
- ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
