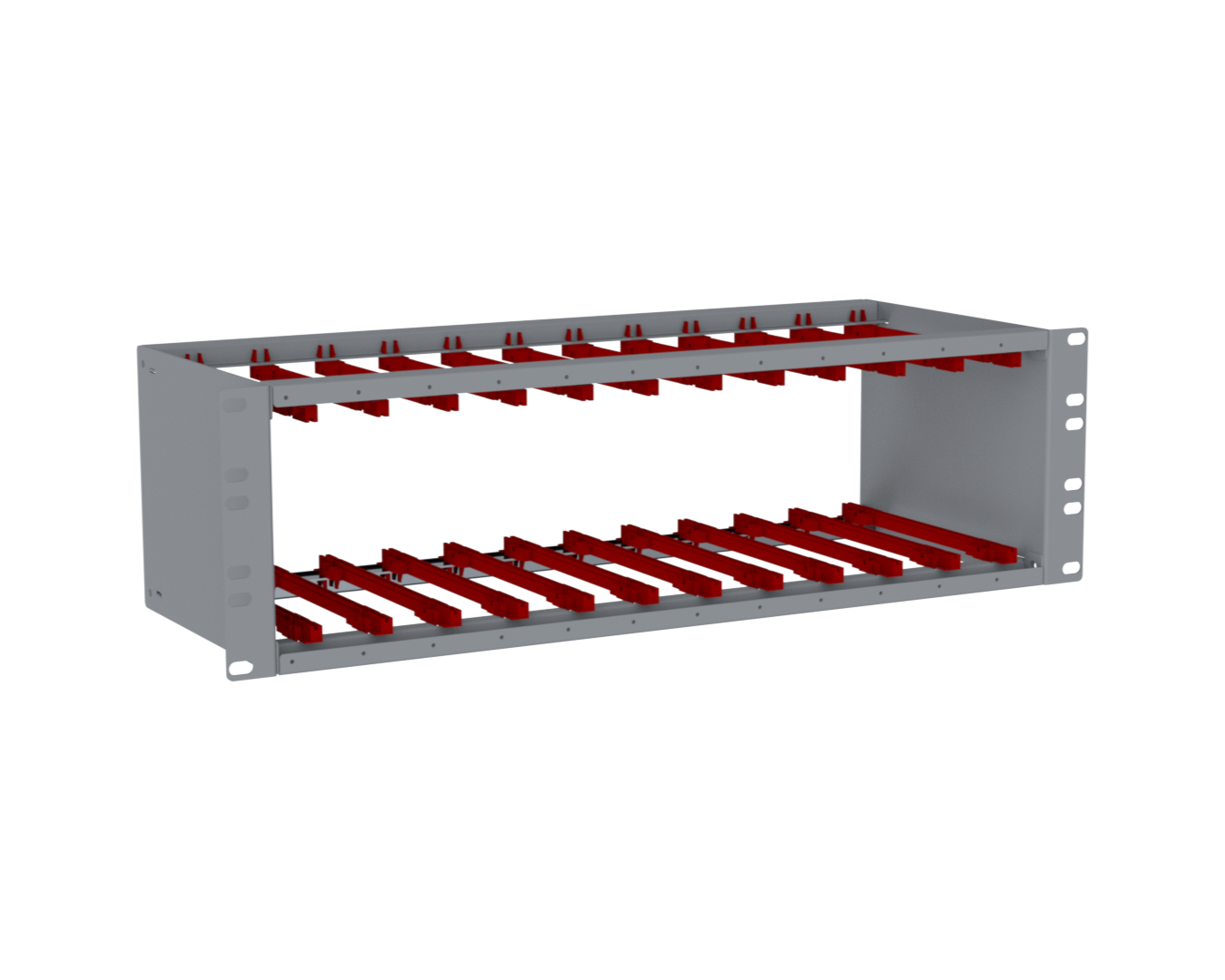

PM-19"-180-3U-12-S-R7035

FO modular subrack PM-19"-180-3U-R7035, 3U, 12 cassette modules capacity, 483x210x180mm (WxHxD), Magnelis®, structural, RAL7035

Request for quotation

Fiber optic modular subracks: PM-19"-180-3U-12-S-R7035

the modular system design allows for easy and quick incremental expansion, enabling flexible adaptation of the system to changing needs and requirements,
fiber optic patch panel enables termination of up to 144 optical fibers,

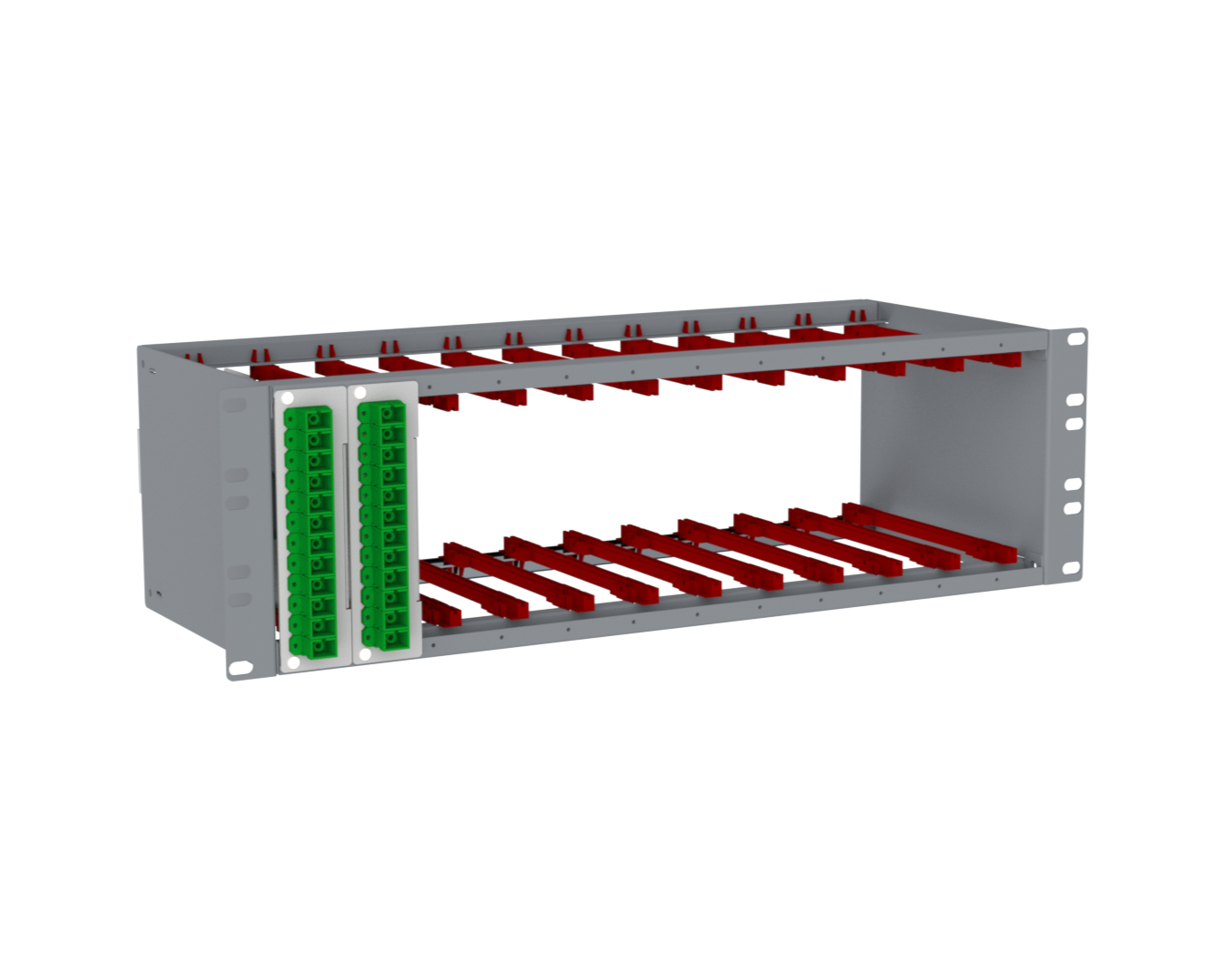

allows for the installation of 12 modules,
possibility of mounting connector standards: SC simplex, E2000 simplex, LC duplex,
designed for installation in 19" or 21" (with additional reducers) ODF cabinets and racks,
subrack is adapted for a line cable or a multipatchcord entry from the rear,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

application: telecommunication
product family: PM
dimensions (width x height x depth): 483mm x 132mm x 180mm
rack unit height: 3U
rack standard: 19"
max. number of modules: 12
number of SC simplex ports: 144 (12 x 12 modules)
ports standard: SC simplex, E2000 simplex, LC duplex
installation depth adjustment: NO
mounting type: front rack rails
operation temperature range: -40°C to +70°C
ingress protection degree IP: IP 41
impact protection degree IK: IK 10
flammability class: V0 acc. UL 94
weight: ~1.2 kg
material: powder painted Magnelis® sheet
color: structural, light grey RAL7035
standards and certificates: ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE

Download

Datasheet
EU Declaration of Conformity
RoHS & REACH Declaration

Related products

MS-PM-12-SCS-1K3-S-R7035

Splice cassette module, MS-PM-12-SCS-1K3-R7035, 12 ports SC simplex, 1 splice cassette with cover, 30x130x210mm (WxHxD), Magnelis®, structural, RAL7035

Z-PM-R7035

Blank slot cover, Z-PM-R7035, 35x130x1,5mm (WxHxD), Magnelis®, structural, RAL7035

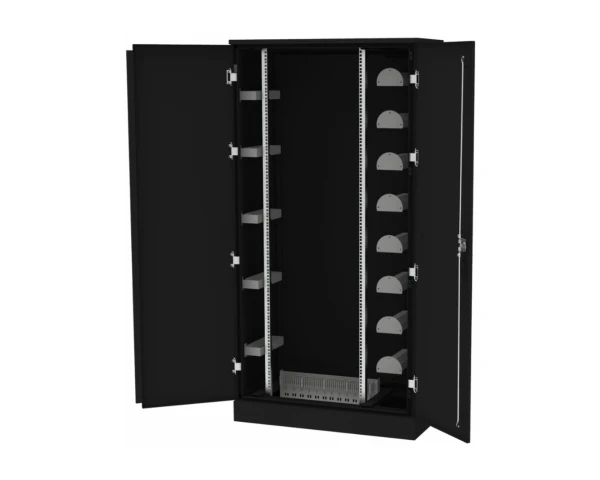

SDR-900/400/2200-19"-42-1111-S-R9005
