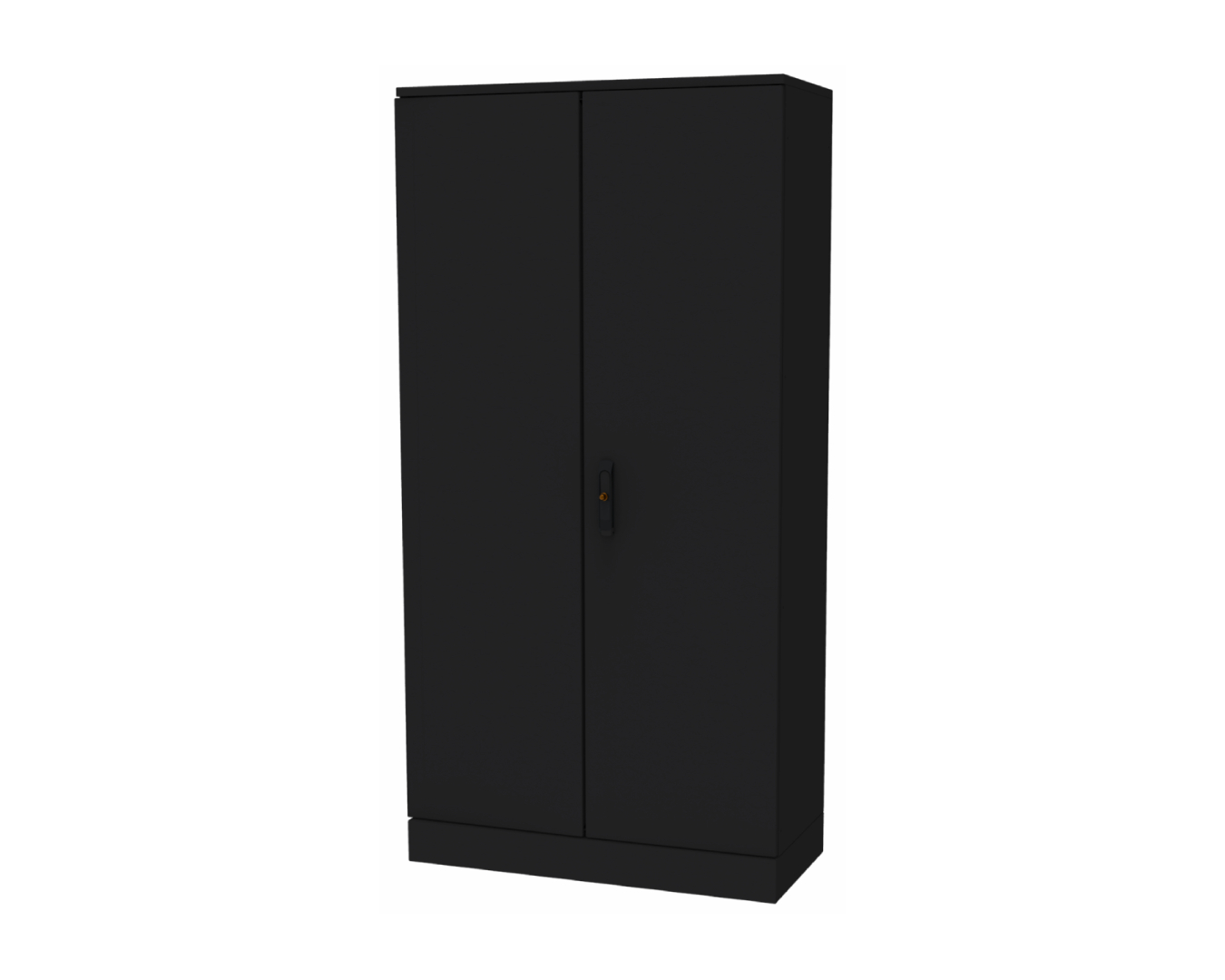

Optical distribution frame 19" free-standing SDR-900/400/2000-19", indoor, 40U, solid doors, double doors 50/50, side panels, rear panel, 900x2000x400mm (WxHxD), Magnelis®, structural, RAL9005

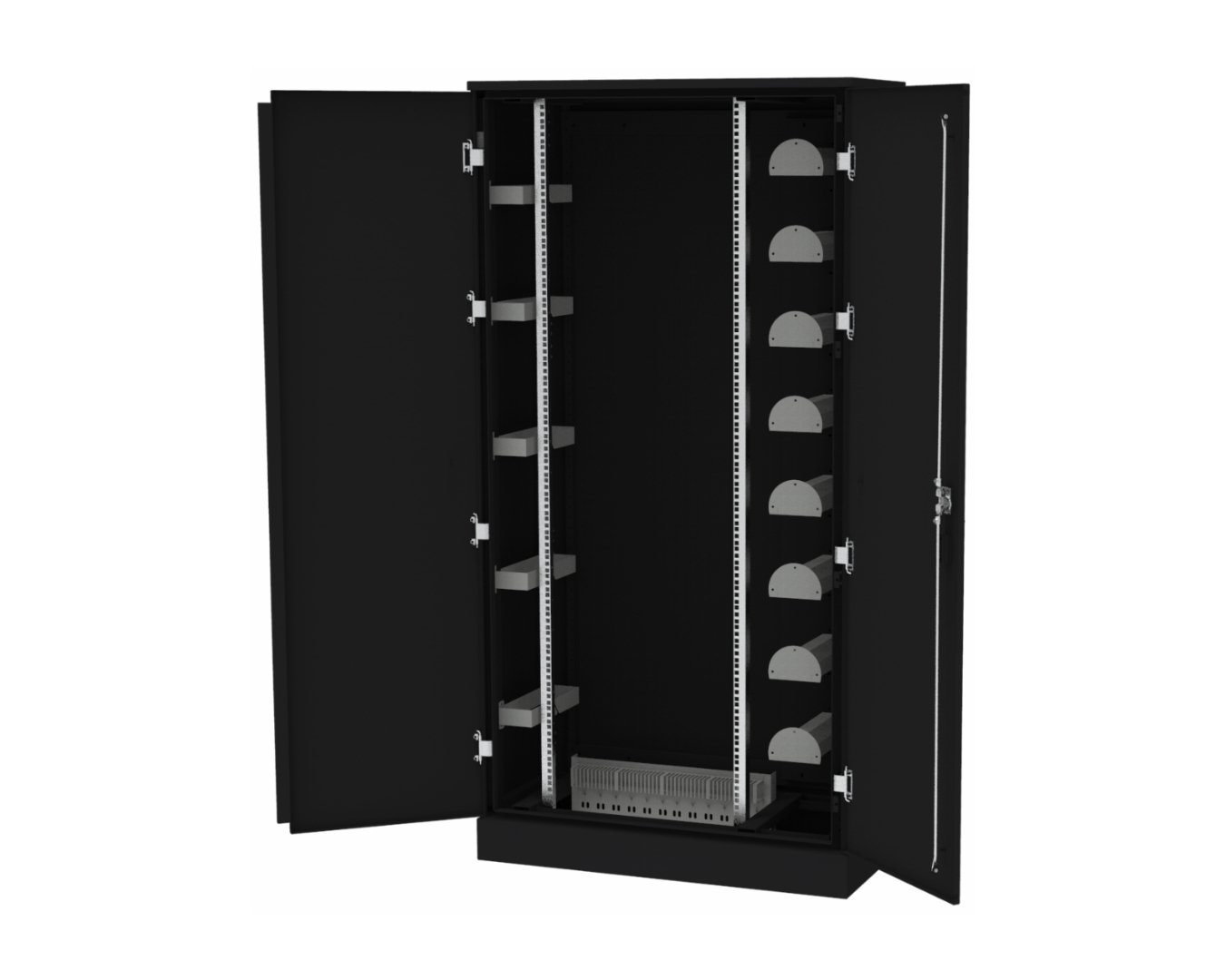

ODF designed in a three-section setup: line section, rack section, and cable management – providing clear functional separation and efficient space organization,
cable management section equipped with cable organizers, dedicated to managing and storing patchcord overlength while maintaining the safe bending radius – enhancing safety and operational ergonomics,
the rack solution allows for the installation of devices adapted to the 19-inch standard with a depth of up to 300 mm,
cabinet protected with a double three-point locking door, closed with a patent lock installed in the hinged handle,
front door allows an opening angle of up to 120°,
side and rear panels are designed as removable elements, ensuring both the security of installed equipment and easy access for inspection and maintenance,
the breakout plate includes 12 central strength member holders (FRP rod) and a Richco comb for organizing protection tubes,
cable entries located at the top and bottom of the housing – equipped with brush grommets to provide dust protection,
dedicated for installation on concrete floor or raised (technical) flooring,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.
