SDR-900/400/1800-19"-36-1111-S-R9005

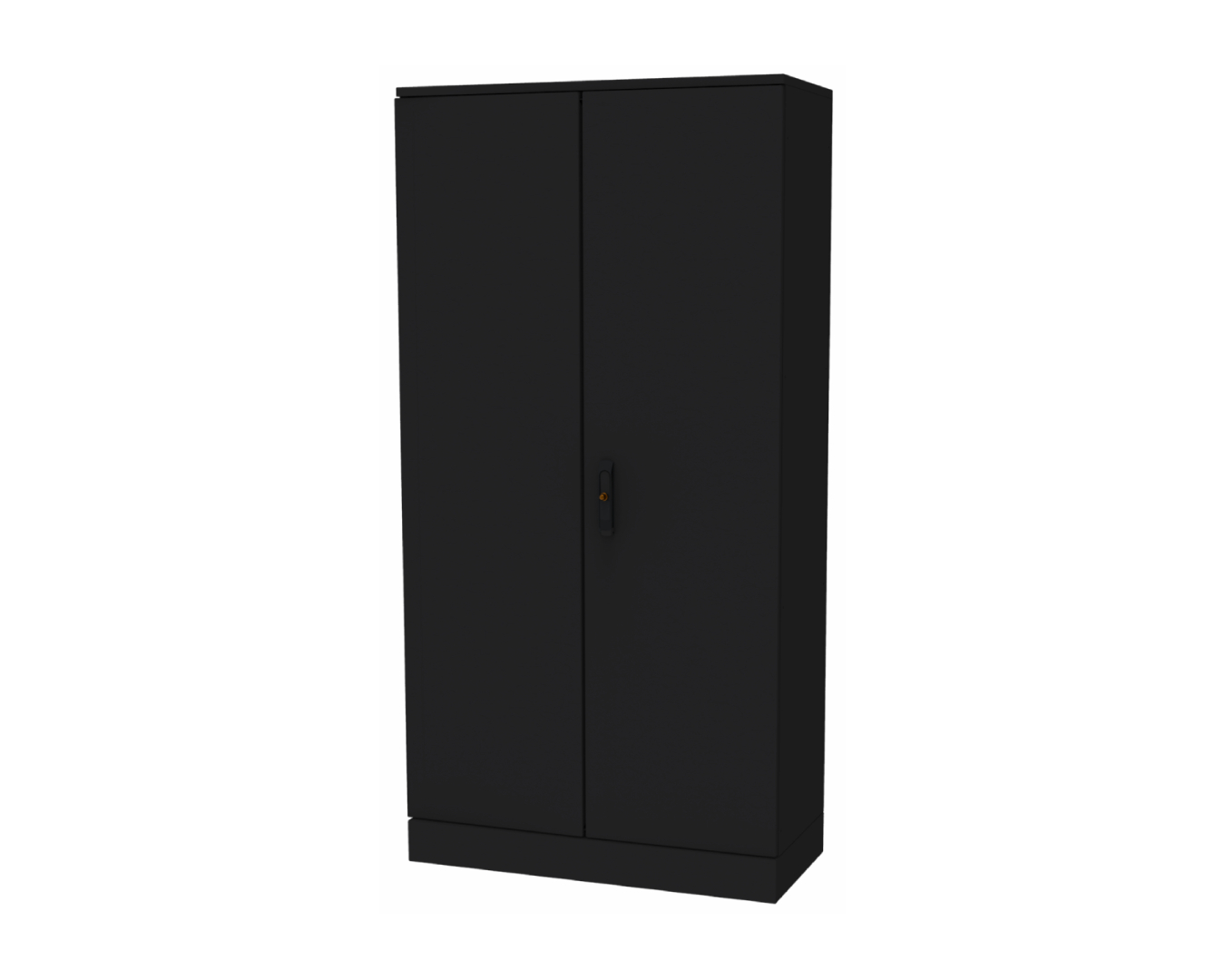

Optical distribution frame 19" free-standing SDR-900/400/1800-19", indoor, 36U, solid doors, double doors 50/50, side panels, rear panel, 900x1800x400mm (WxHxD), Magnelis®, structural, RAL9005

Request for quotation
Optical distribution frames: SDR-900/400/1800-19"-36-1111-S-R9005Cabinex
Optical distribution frames: SDR-900/400/1800-19"-36-1111-S-R9005Optical distribution frames: SDR-900/400/1800-19"-36-1111-S-R9005

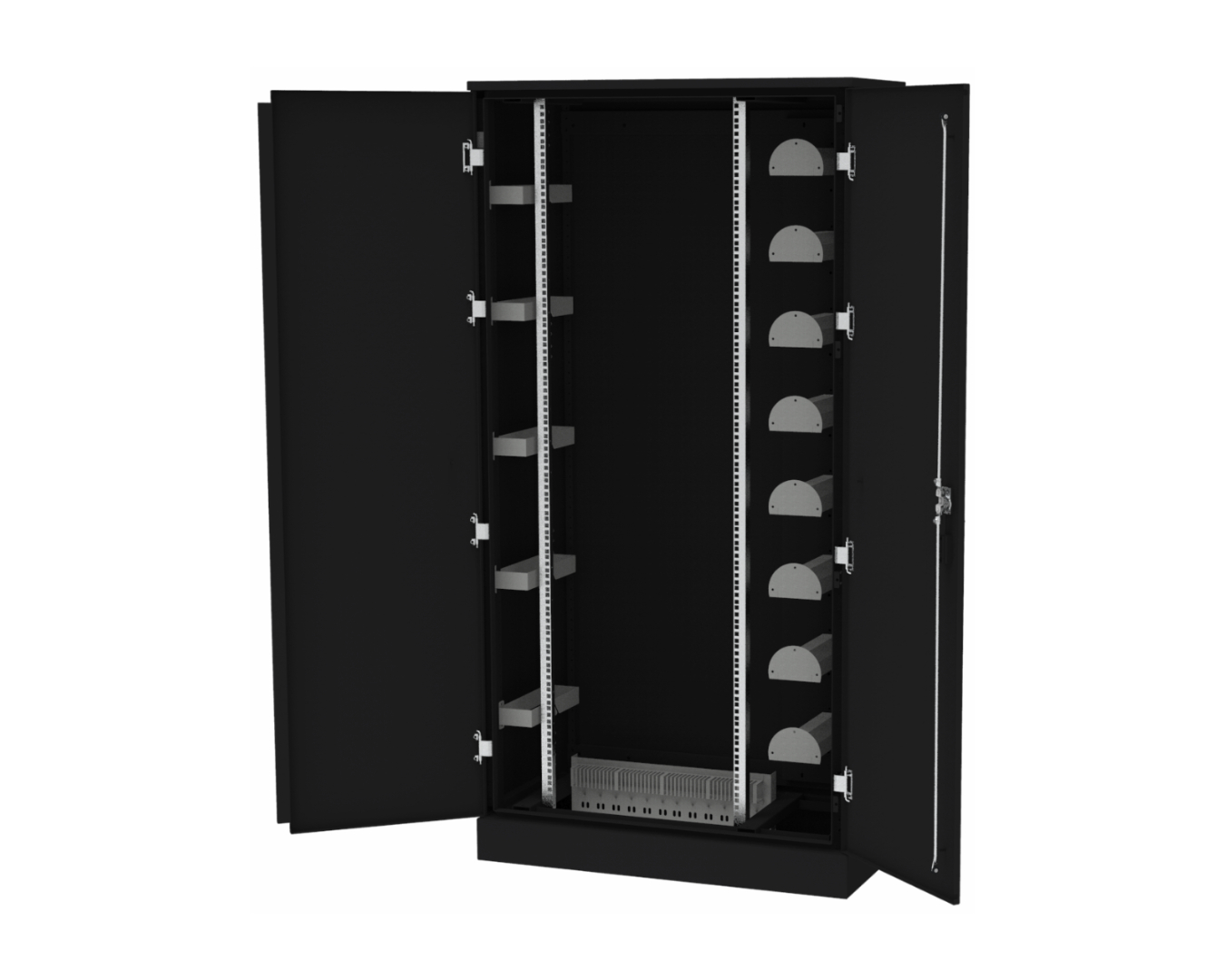

  • ODF designed in a three-section setup: line section, rack section, and cable management – providing clear functional separation and efficient space organization,

  • cable management section equipped with cable organizers, dedicated to managing and storing patchcord overlength while maintaining the safe bending radius – enhancing safety and operational ergonomics,

  • the rack solution allows for the installation of devices adapted to the 19-inch standard with a depth of up to 300 mm,

  • cabinet protected with a double three-point locking door, closed with a patent lock installed in the hinged handle,

  • front door allows an opening angle of up to 120°,

  • side and rear panels are designed as removable elements, ensuring both the security of installed equipment and easy access for inspection and maintenance,

  • the breakout plate includes 12 central strength member holders (FRP rod) and a Richco comb for organizing protection tubes,

  • cable entries located at the top and bottom of the housing – equipped with brush grommets to provide dust protection,

  • dedicated for installation on concrete floor or raised (technical) flooring,

  • Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

application
telecommunication
dimensions (width x height x depth)
900mm x 400mm x 1800mm
rack unit height
36U
rack standard
19"
rack mounting depth
300 mm
number of rack rails
2x front
cable entry type
brush grommet
cable entry dimensions
90mm x 500mm
number of cable entries
1x top / 1x bottom
breakout plate capacity
12 central strength member holders (FRP rod)
construction
single-walled, single-chamber, three-section
door type
solid
number of doors
2
removable side panels
YES
grounding details
doors, side panels, rear panel
mounting type
indoor, free-standing
operation temperature range
-40°C to +70°C
ingress protection degree IP
IP 20
impact protection degree IK
IK 10
flammability class
V0 acc. UL 94
weight
~90.0 kg
material
powder painted Magnelis® sheet
color
structural, black RAL9005
standards and certificates
ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
