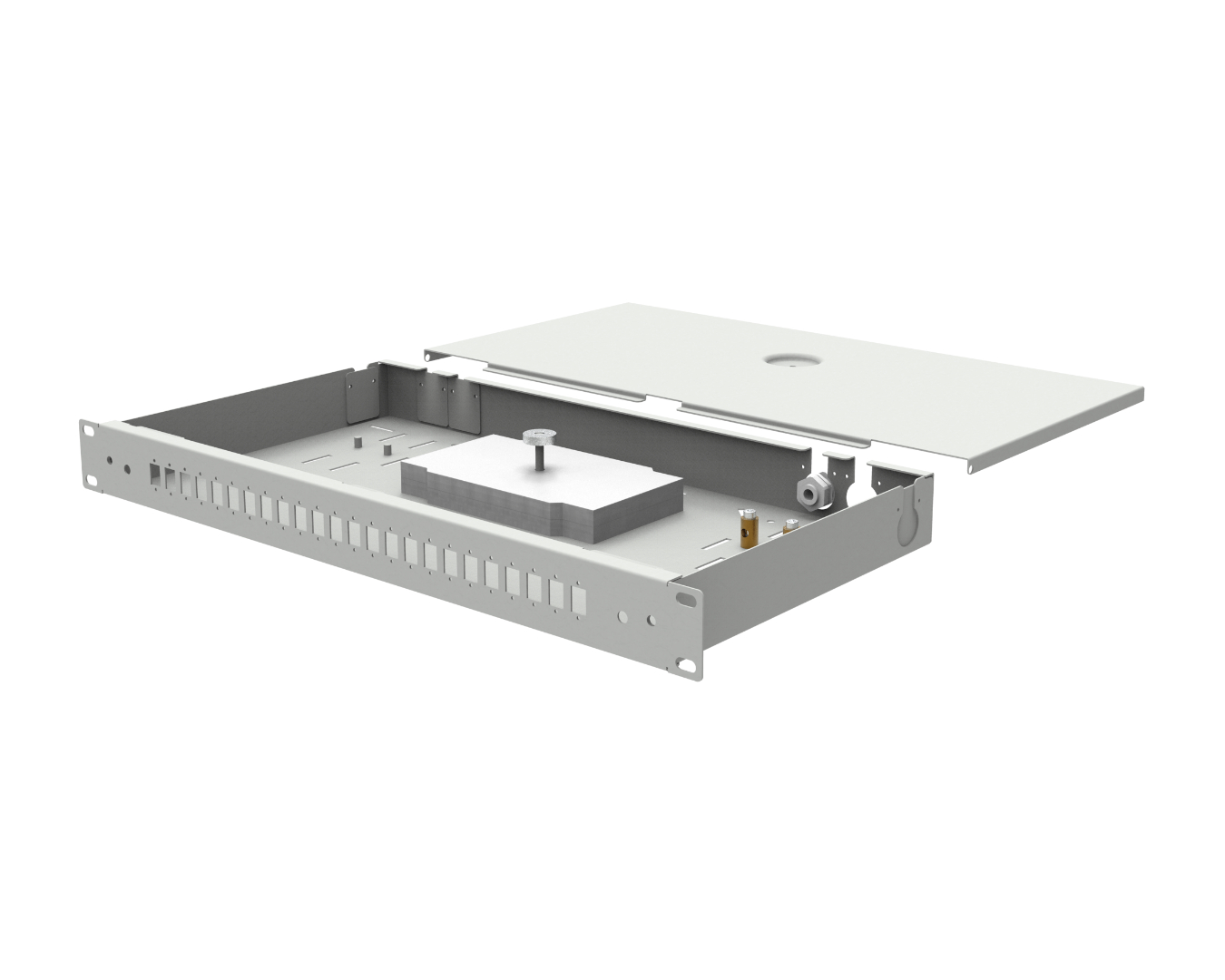

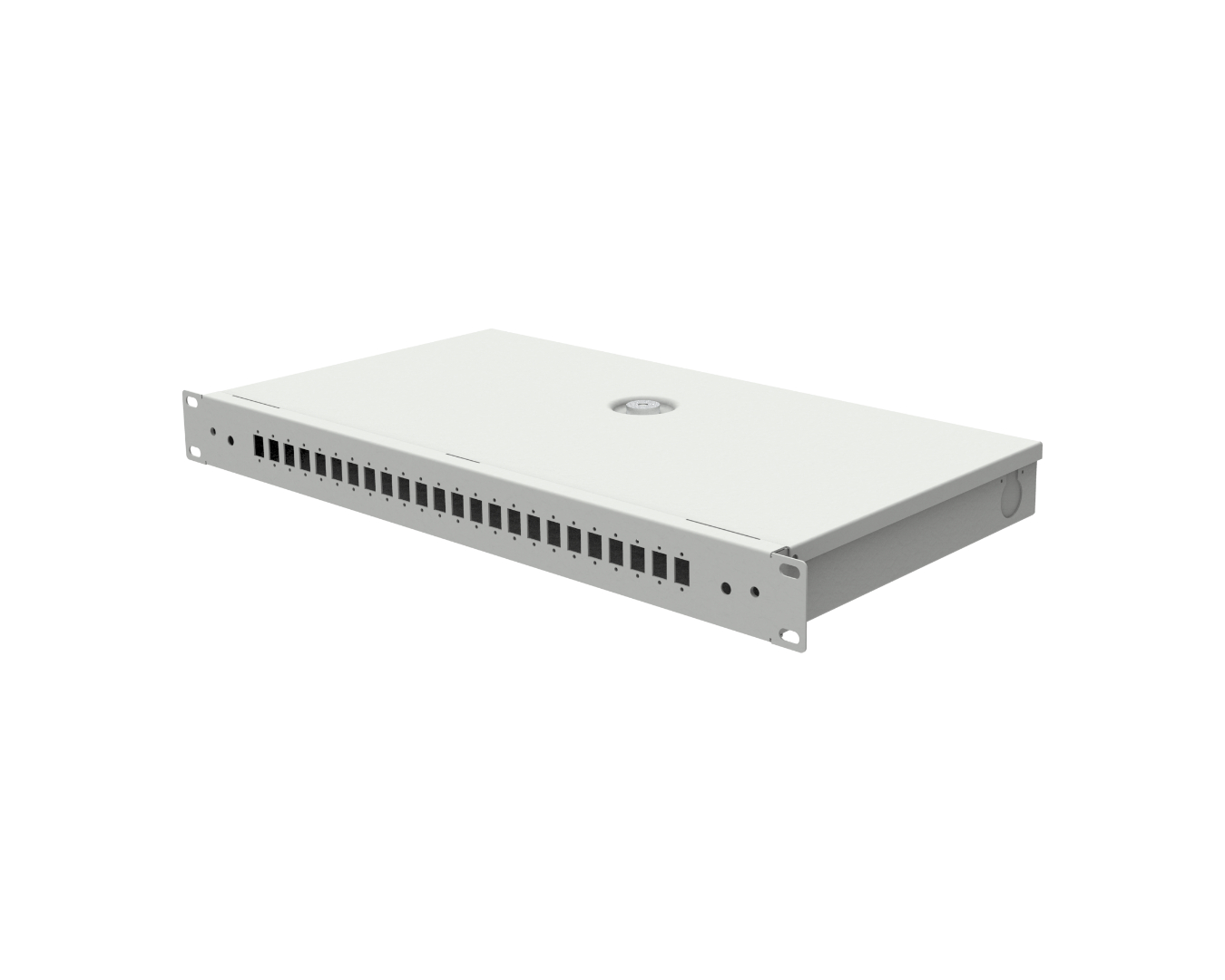

PSS-19"-240-1U-12-SCD-0K3-S-R7035

FO solid patch panel PSS-19"-240-1U-12, 12 ports SC duplex, without splice cassettes, Magnelis®, structural, RAL7035

Request for quotation

Fiber optic patch panels - solid: PSS-19"-240-1U-12-SCD-0K3-S-R7035

fiber optic patch panel enables termination of up to 24 optical fibers,
possibility of mounting connector standards: SC duplex, LC quad,
designed for installation in 19" or 21" (with additional reducers) ODF cabinets and racks,
PG13.5 gland allows the installation of a line cable (⌀ 8-12 mm) or a multipatchcord into the patch panel,
well organized spare area of the patch panel guarantees safe bending radius, thanks to integrated handles and perforations for cable ties,
numbering on the front panel is permanent applied by screen printing,
the solid construction of the patch panel is the most effective protection against unauthorized access,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

Technical specification

accessory family: PP-A, KS-03-24
application: telecommunication
product family: PSS
dimensions (width x height x depth): 483mm x 44mm x 240mm
rack unit height: 1U
rack standard: 19"
number of SC duplex ports: 12
ports standard: SC duplex, LC quad
fiber splice cassette type: KS-03-24
fiber splice cassette capacity: 24F
max. number of fiber splice cassettes: 3
max. splice capacity: 72F
recommended pigtail length: 2 – 2.5 m
cable entry type: PG13.5 cable gland
cable entry diameter: ⌀ 22.5 mm
number of cable entries: 6 (4x rear / 2x side)
central strength member holder (FRP rod): YES
installation depth adjustment: NO
telescopic rails: NO
mounting type: front rack rails
anti-rodent protection: equipment ordered separately
operation temperature range: -40°C to +70°C
ingress protection degree IP: IP 41
impact protection degree IK: IK 10
flammability class: V0 acc. UL 94
weight: ~2.3 kg
material: powder painted Magnelis® sheet
color: structural, light grey RAL7035
standards and certificates: ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
