PSS-19"-240-1U-12-SCS-0K3-S-R7035

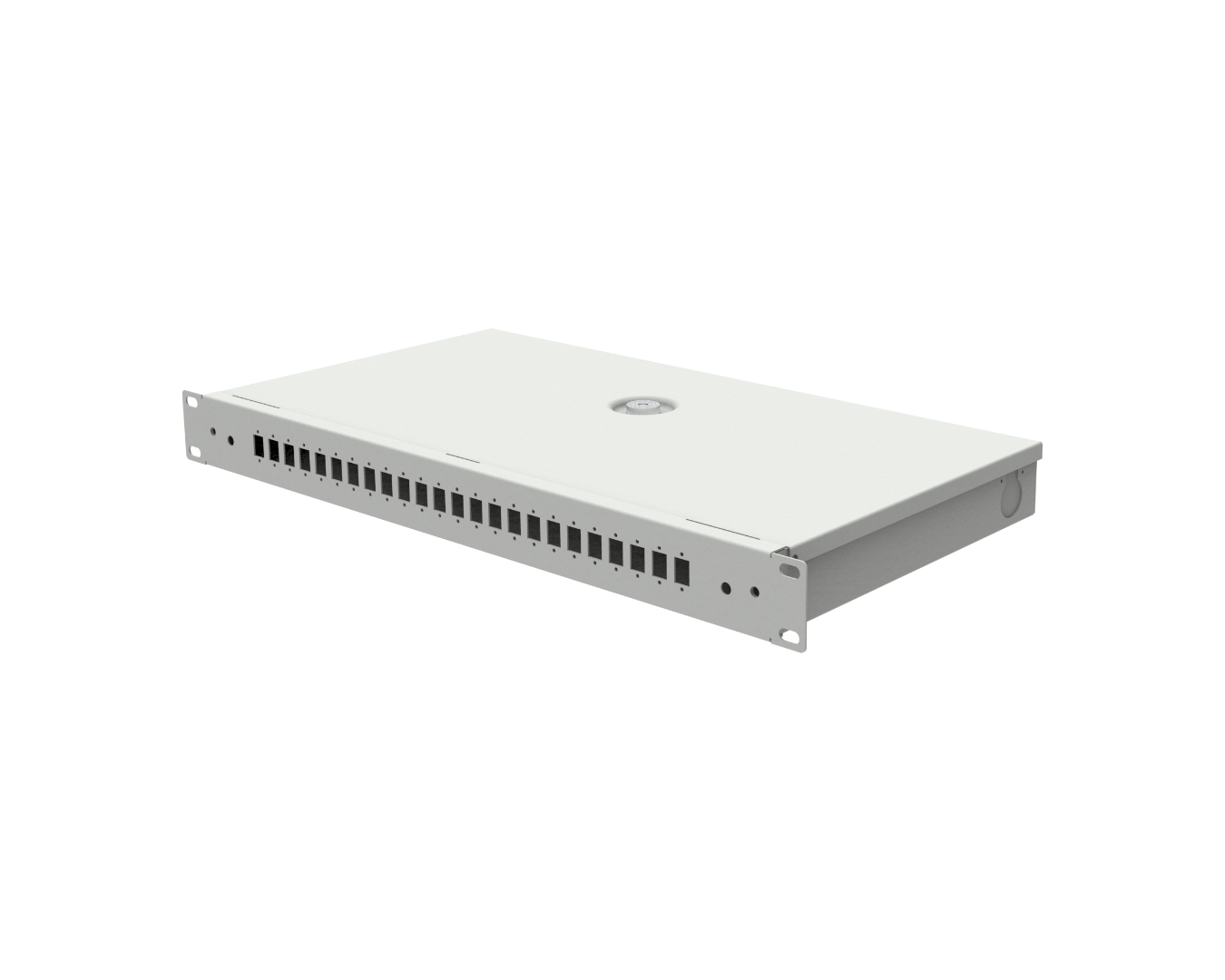

FO solid patch panel PSS-19"-240-1U-12, 12 ports SC simplex, without splice cassettes, Magnelis®, structural, RAL7035
-67b6ee5a6cc08.jpg)
-67b6ee59eac03.jpg)
fiber optic patch panel enables termination of up to 24 optical fibers,
possibility of mounting connector standards: SC simplex, E2000 simplex, LC duplex,
designed for installation in 19" or 21" (with additional reducers) ODF cabinets and racks,
PG13.5 gland allows the installation of a line cable (⌀ 8-12 mm) or a multipatchcord into the patch panel,
well organized spare area of the patch panel guarantees safe bending radius, thanks to integrated handles and perforations for cable ties,
numbering on the front panel is permanent applied by screen printing,
the solid construction of the patch panel is the most effective protection against unauthorized access,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.
Technical specification
- application
- telecommunication
- product family
- PSS
- dimensions (width x height x depth)
- 483mm x 44mm x 240mm
- rack unit height
- 1U
- rack standard
- 19"
- number of SC simplex ports
- 12
- ports standard
- SC simplex, E2000 simplex, LC duplex
- fiber splice cassette type
- KS-03-24
- fiber splice cassette capacity
- 24F
- max. number of fiber splice cassettes
- 3
- max. splice capacity
- 72F
- recommended pigtail length
- 2 – 2.5 m
- cable entry type
- PG13.5 cable gland
- cable entry diameter
- ⌀ 22.5 mm
- number of cable entries
- 6 (4x rear / 2x side)
- central strength member holder (FRP rod)
- YES
- installation depth adjustment
- NO
- telescopic rails
- NO
- mounting type
- front rack rails
- anti-rodent protection
- equipment ordered separately
- operation temperature range
- -40°C to +70°C
- ingress protection degree IP
- IP 41
- impact protection degree IK
- IK 10
- flammability class
- V0 acc. UL 94
- weight
- ~2.3 kg
- material
- powder painted Magnelis® sheet
- color
- structural, light grey RAL7035
- standards and certificates
- ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
