Indoor cabinets - free-standing

SWW-600/1160/530-S-19"-24U-S-R9005

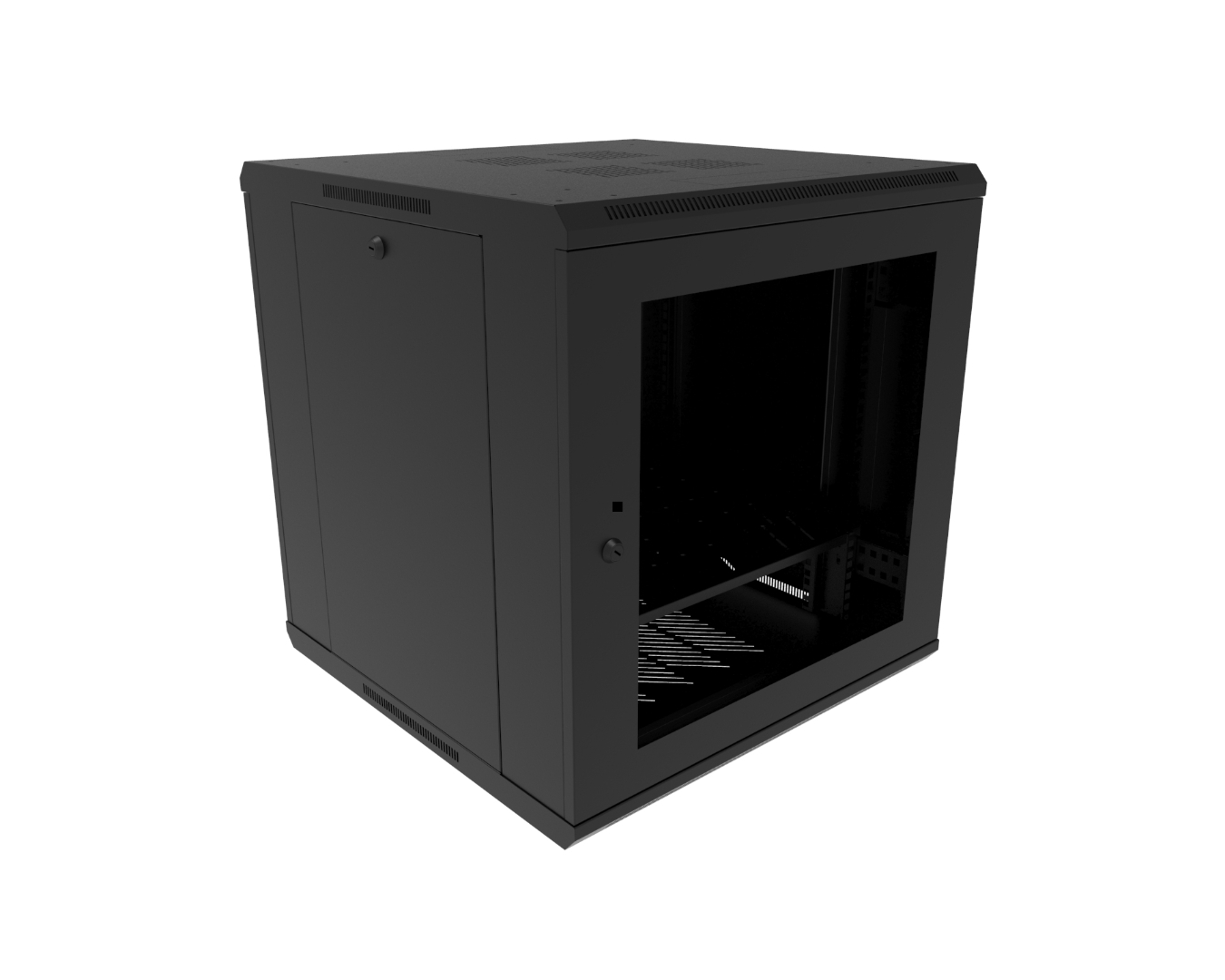

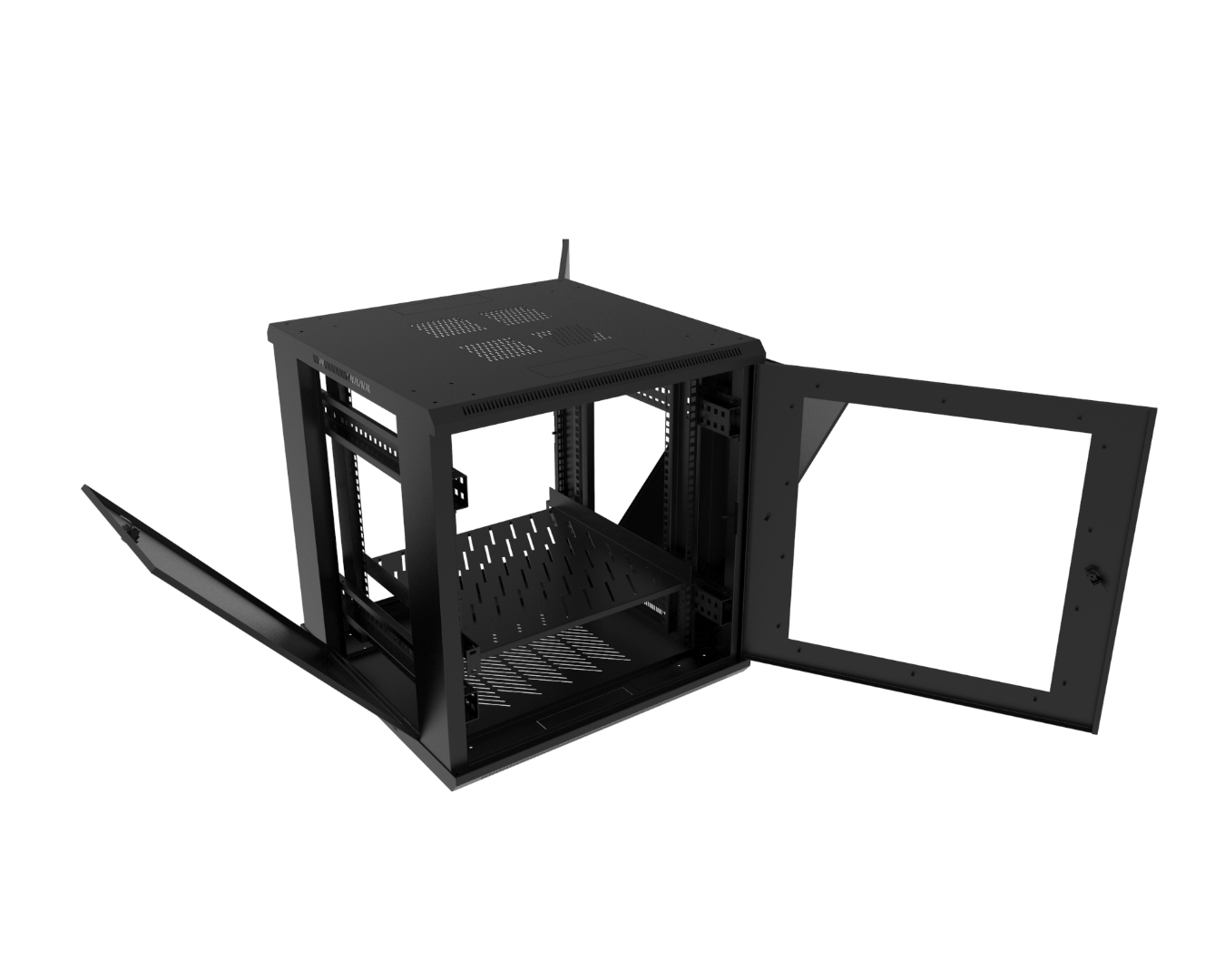

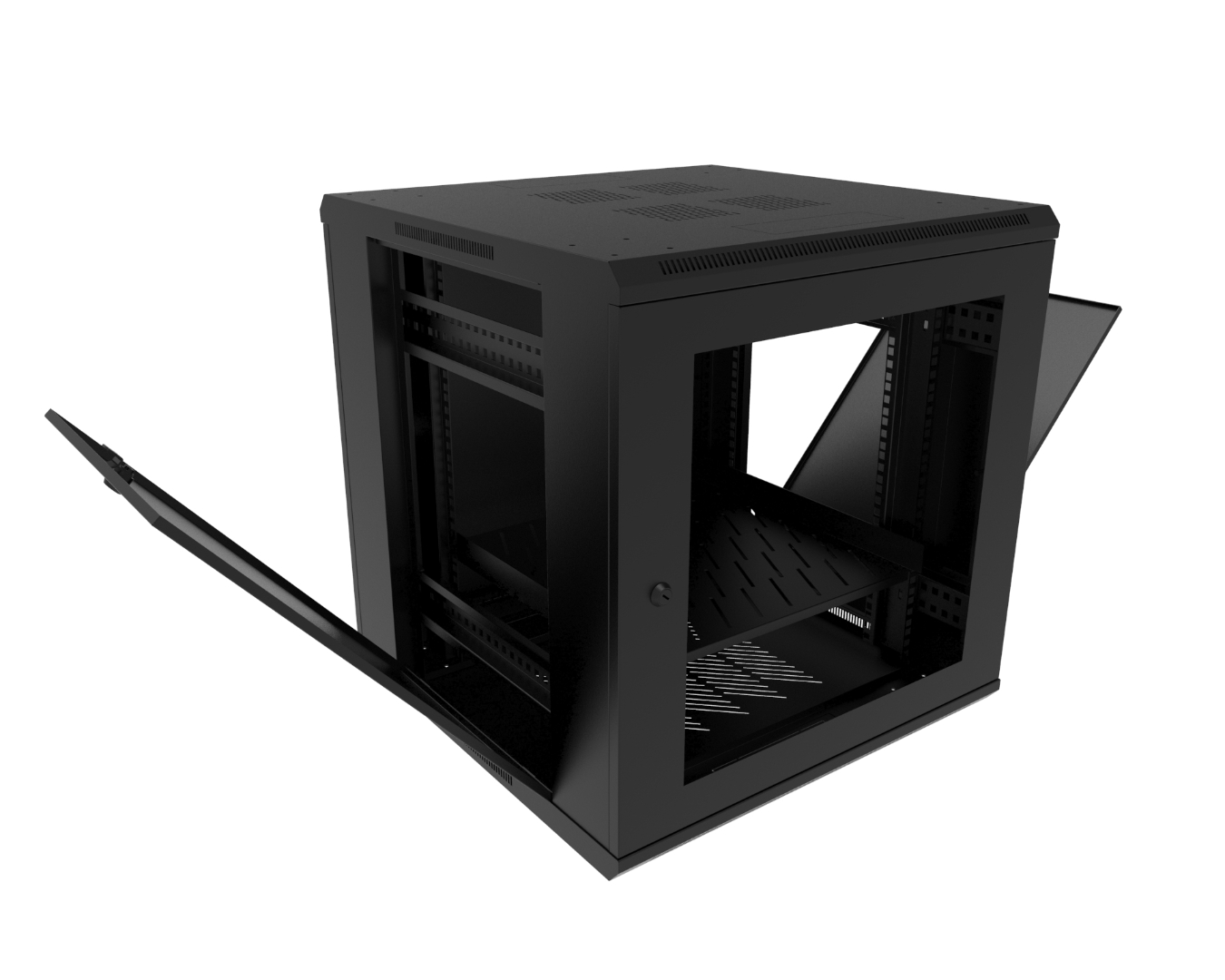

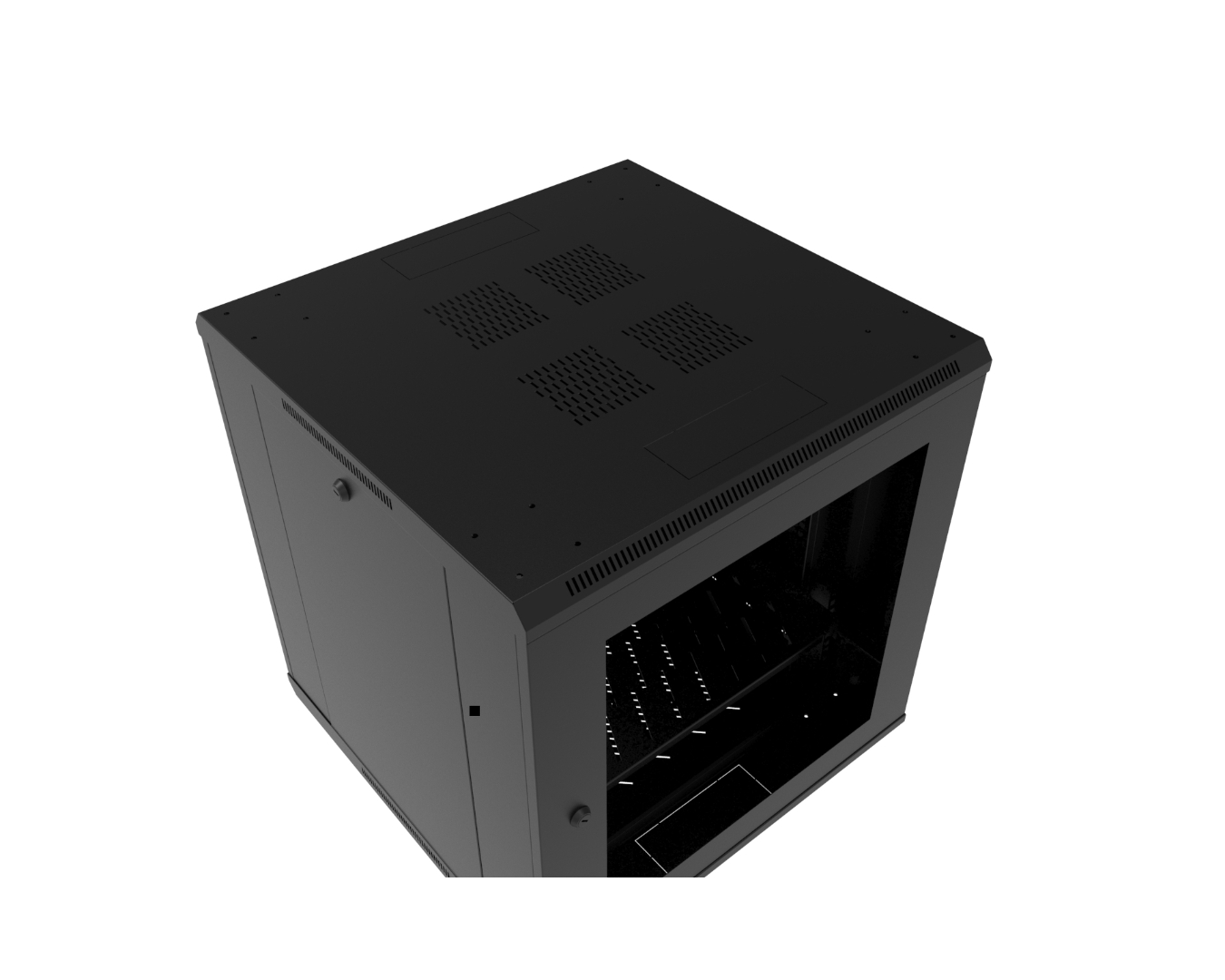

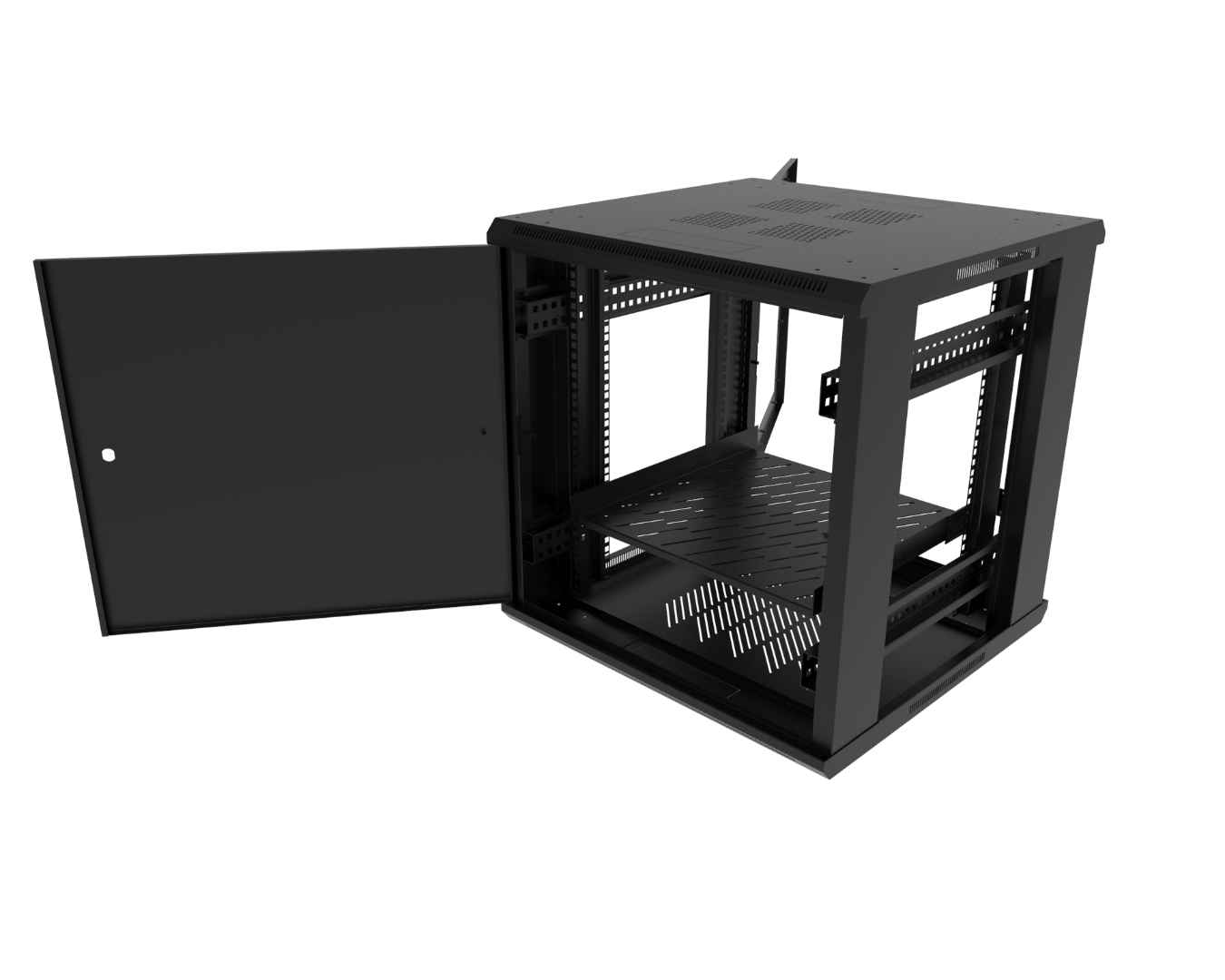

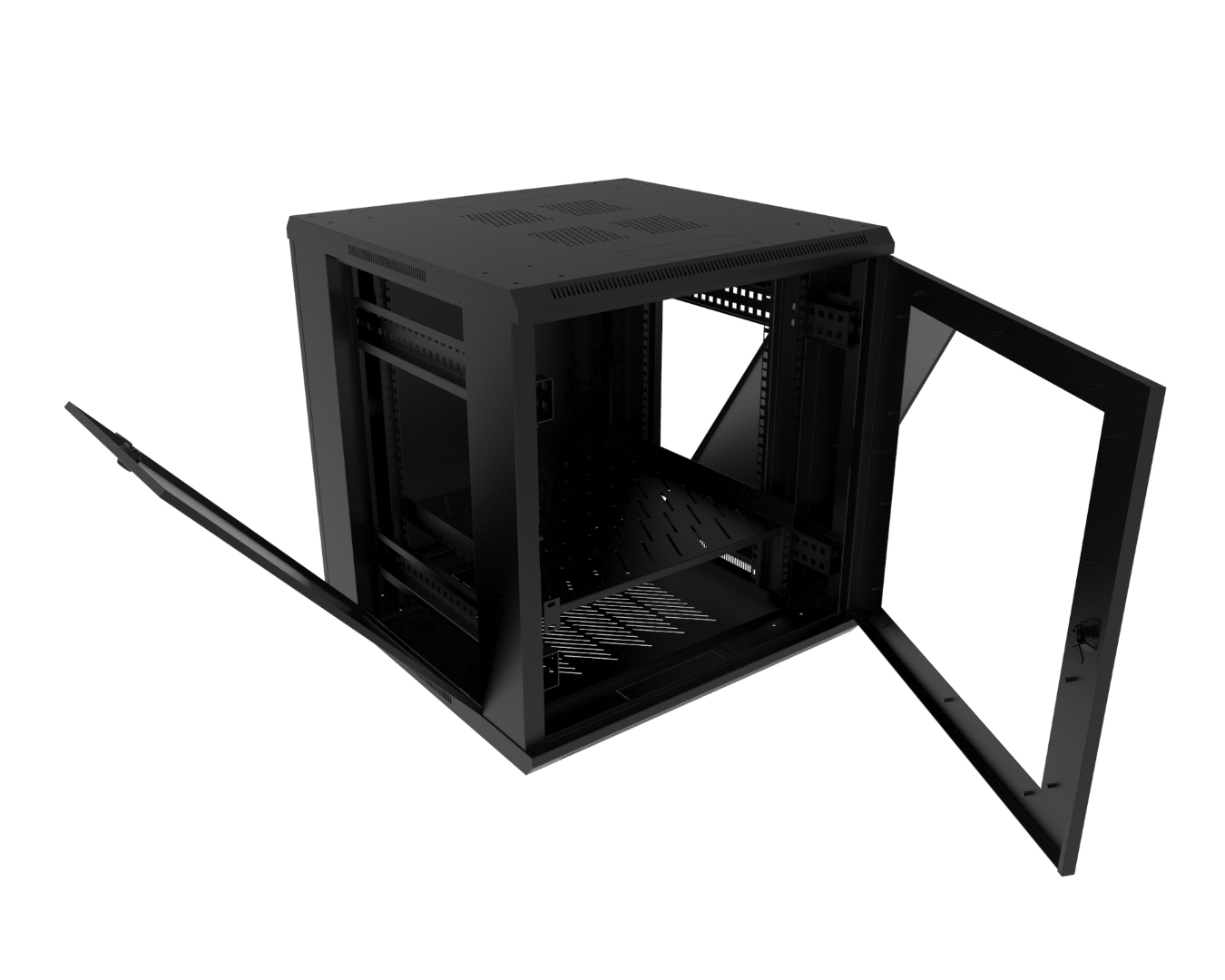

Free-standing 19" rack cabinet, SWW-600/1160/530-S-19"-24U, indoor, door with plexi, 600x1160x530mm (WxHxD), Magnelis®, structural, RAL9005

Request for quotation

rack cabinet is designed for wall mounting in offices, network server rooms and CCTV control rooms,

rack solution allows the installation of devices adapted to the 19-inch standard,

cabinets are available in various sizes and configurations, which allows for optimal cable management and safe storage of network equipment,

design of the cabinet ensures proper heat dissipation which protects the devices from overheating,

rack cabinet equipped with doors locked with a key, key code depending on preferences can be repeatable or different,

maximum opening angle of the front door up to 120°,

the brush grommet enables the insertion of cabling through a 60 x 180 mm hole,

cable entries located at the top and bottom of the housing,

Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.

application: telecommunication, power industry
product family: SWW
dimensions (width x height x depth): 600mm x 1160mm x 530mm
rack unit height: 24U
rack standard: 19"
rack mounting depth: 490 mm
number of rack rails: 2x front / 2x rear
cable entry type: breakable cable slot / hole cap
cable entry dimensions: 60mm x 180mm
number of cable entries: 2x top / 2x bottom
construction: single-walled, single-chamber
door type: front with plexi / rear solid
number of doors: 1
removable side panels: YES
thermostat: equipment ordered separately
grounding details: doors, side panels
active ventilation: space for a 4 ⌀ 125mm fans
passive ventilation: ventilation holes on the sides, in the top and bottom
mounting type: free-standing
operation temperature range: -40°C to +70°C
ingress protection degree IP: IP 20
impact protection degree IK: IK 10
flammability class: V0 acc. UL 94
weight: ~30.0 kg
material: powder painted Magnelis® sheet
color: structural, black RAL9005
standards and certificates: ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
