SWW-600/620/530-S-19"-12U-S-R9005

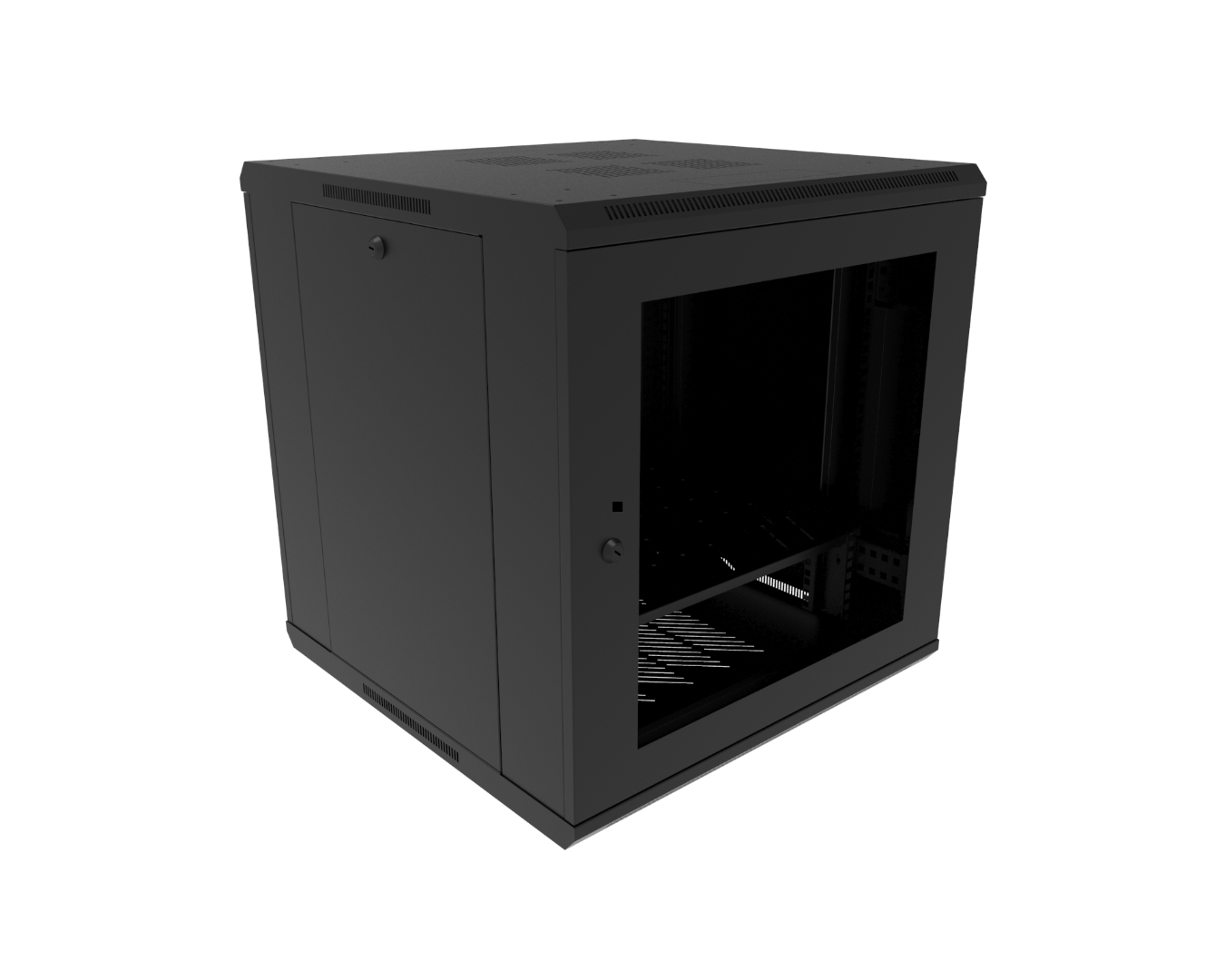

Free-standing 19" rack cabinet, SWW-600/620/530-S-19"-12U, indoor, door with plexi, 600x620x530mm (WxHxD), Magnelis®, structural, RAL9005
rack cabinet is designed for wall mounting in offices, network server rooms and CCTV control rooms,
rack solution allows the installation of devices adapted to the 19-inch standard,
cabinets are available in various sizes and configurations, which allows for optimal cable management and safe storage of network equipment,
design of the cabinet ensures proper heat dissipation which protects the devices from overheating,
rack cabinet equipped with doors locked with a key, key code depending on preferences can be repeatable or different,
maximum opening angle of the front door up to 120°,
the brush grommet enables the insertion of cabling through a 60 x 180 mm hole,
cable entries located at the top and bottom of the housing,
Magnelis® sheet is the only metallic coating certified for use in a C5 environment, which provides durability and protection against corrosion.
Technical specification
- application
- telecommunication, power industry
- product family
- SWW
- dimensions (width x height x depth)
- 600mm x 620mm x 530mm
- rack unit height
- 12U
- rack standard
- 19"
- rack mounting depth
- 490 mm
- number of rack rails
- 2x front / 2x rear
- cable entry type
- breakable cable slot / hole cap
- cable entry dimensions
- 60mm x 180mm
- number of cable entries
- 2x top / 2x bottom
- construction
- single-walled, single-chamber
- door type
- front with plexi / rear solid
- number of doors
- 1
- removable side panels
- YES
- thermostat
- equipment ordered separately
- grounding details
- doors, side panels
- active ventilation
- space for a 4 ⌀ 125mm fans
- passive ventilation
- ventilation holes on the sides, in the top and bottom
- mounting type
- free-standing
- operation temperature range
- -40°C to +70°C
- ingress protection degree IP
- IP 20
- impact protection degree IK
- IK 10
- flammability class
- V0 acc. UL 94
- weight
- ~13.0 kg
- material
- powder painted Magnelis® sheet
- color
- structural, black RAL9005
- standards and certificates
- ISO 9001:2015, PN-EN 60529, PN-EN 62262, REACH Regulation No 1907/2006/EC, RoHS 2011/65/UE
